IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD800R17KE3B2NOSA1IGBT MODULE 1700V 800A Infineon Technologies |
4,417 | 0.00 |
|
- |
IHM-B | Module | Bulk | Not For New Designs | - | Single Chopper | 1700 V | 1200 A | 5200 W | 2.45V @ 15V, 800A | 5 mA | 72 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FF200R33KF2CNOSA1IGBT MOD 3300V 330A 2200W Infineon Technologies |
9,939 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | 2 Independent | 3300 V | 330 A | 2200 W | 4.25V @ 15V, 200A | 5 mA | 25 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

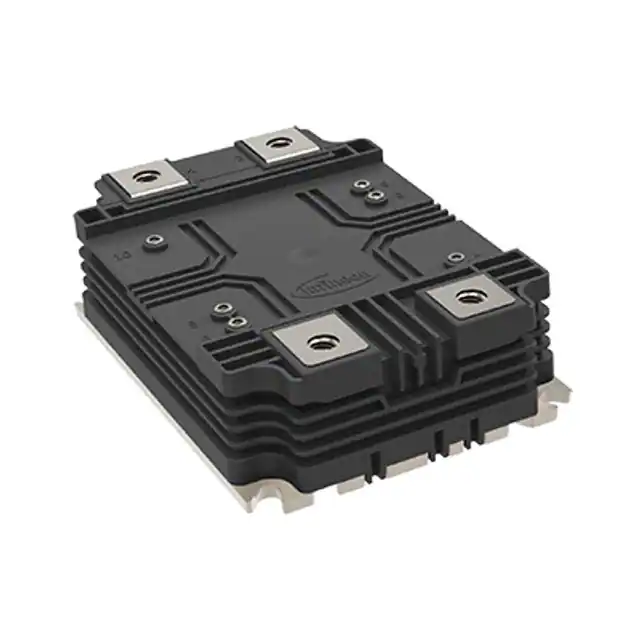

FF450R33T3E3BPSA1IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies |
2,444 | 0.00 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
FF450R33T3E3P2BPSA1IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies |
4,405 | 0.00 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P3BPMA1IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies |
4,690 | 0.00 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
FZ3600R17HE4HOSA2IGBT MODULE 1700V 7200A Infineon Technologies |
8,239 | 0.00 |
|
- |
IHM-B | Module | Tray | Discontinued at Digi-Key | - | Single Switch | 1700 V | 7200 A | 21000 W | 2.3V @ 15V, 3600A | 5 mA | 295 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R33T3E3P4BPMA1IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies |
9,122 | 0.00 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P6BPMA1IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies |
9,116 | 0.00 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|

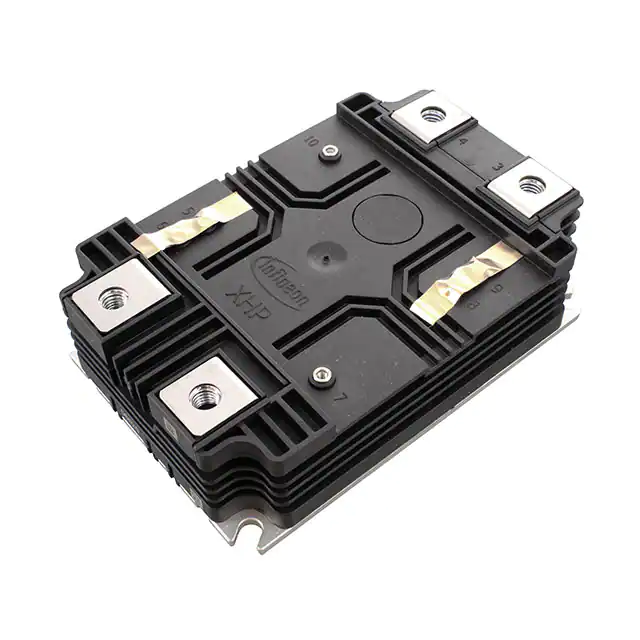

FF450R33T3E3B5BPSA1IGBT MOD 3300V 450A AGXHP100-6 Infineon Technologies |
1 | 0.00 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge Inverter | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-6 |
|
|
FZ1600R17KF6CB2S1NOSA1IGBT MODULE Infineon Technologies |
1 | 0.00 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHMB130-2-1 |
