IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FA300R12ME4BOSA1MODULE IGBT ECONO DUAL 3 Infineon Technologies |
2,259 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP30R06YE3BOMA1MODULE IGBT CBI E2 Infineon Technologies |
7,082 | 0.00 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GB170DN2HOSA1IGBT MOD 1700V 72A 500W Infineon Technologies |
2,631 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Half Bridge | 1700 V | 72 A | 500 W | 3.9V @ 15V, 50A | - | 8 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
FP25R12KE3BOSA1IGBT MOD 1200V 40A 155W Infineon Technologies |
5,912 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 155 W | 2.15V @ 15V, 25A | 1 mA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|

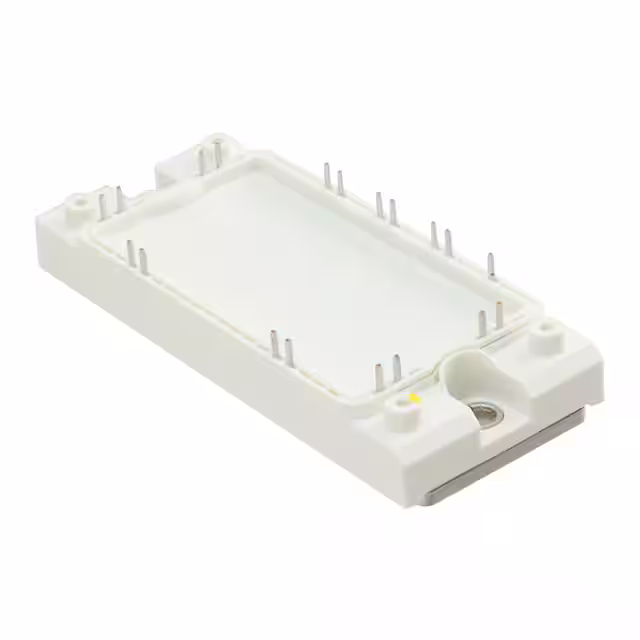

DDB6U134N16RRBOSA1IGBT MOD 1600V 70A 500W Infineon Technologies |
3,667 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | NPT | Single | 1600 V | 70 A | 500 W | 2.75V @ 15V, 70A | 500 µA | 5.1 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | Module |
|

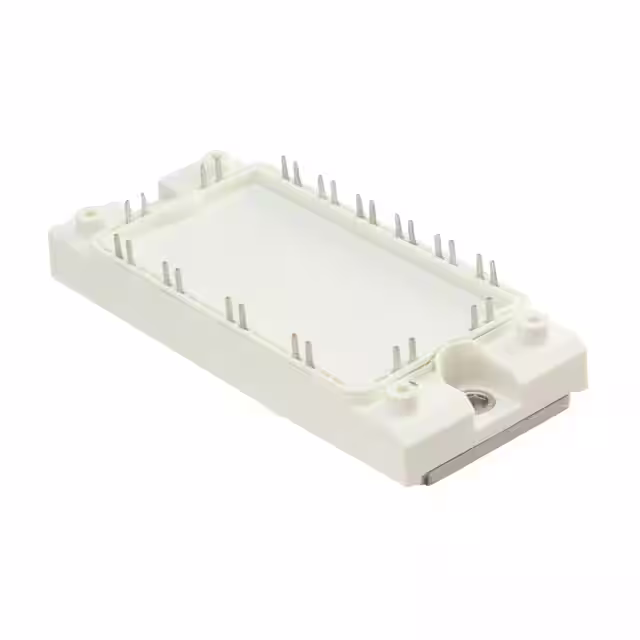

FS75R12KE3BOSA1IGBT MOD 1200V 105A 350W Infineon Technologies |
6,598 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | NPT | Three Phase Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | Module |
|
|
BSM35GP120BOSA1IGBT MOD 1200V 45A 230W Infineon Technologies |
3,988 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | NPT | Three Phase Inverter | 1200 V | 45 A | 230 W | - | 500 µA | 1.5 nF @ 25 V | - | Yes | 150°C (TJ) | Chassis Mount | Module |
|
FZ800R12KE3HOSA1IGBT MOD 1200V 800A 3550W Infineon Technologies |
6,149 | 0.00 |
|
- |
C | Module | Tray | Obsolete | Trench Field Stop | Single | 1200 V | 800 A | 3550 W | 2.15V @ 15V, 800A | 5 mA | 56 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|

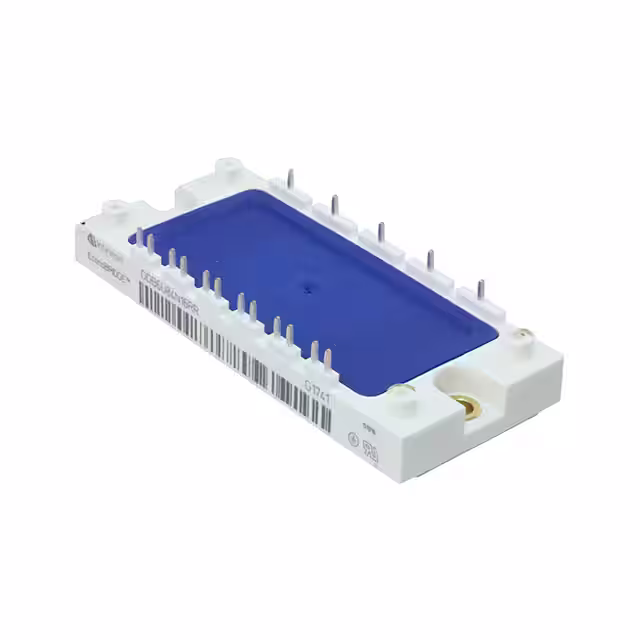

DDB6U84N16RRBOSA1IGBT MOD 1200V 50A 350W Infineon Technologies |
8,783 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | NPT | Single Chopper | 1200 V | 50 A | 350 W | 3.2V @ 20V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
BSM50GD120DN2GIGBT MOD 1200V 78A 400W Infineon Technologies |
7,466 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | Full Bridge | 1200 V | 78 A | 400 W | 3.7V @ 15V, 50A | - | 33 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
