IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R17ME4B11BOSA1IGBT MOD 1700V 600A 2500W Infineon Technologies |
2,229 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

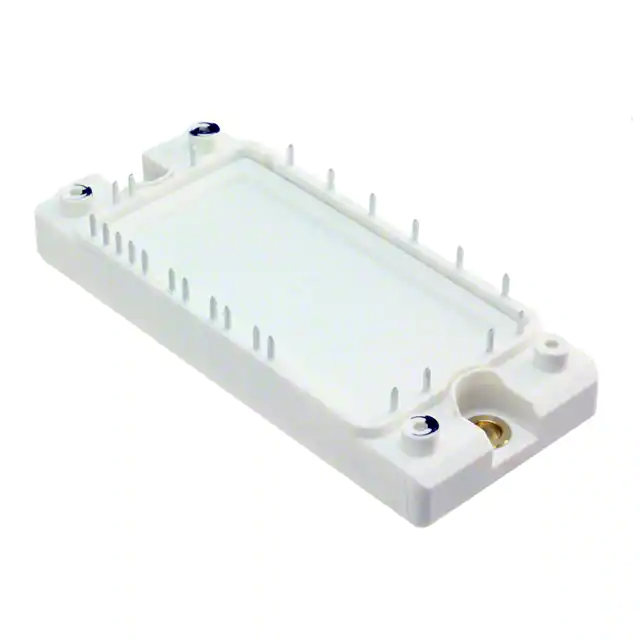

FP50R06KE3BOSA1IGBT MODULE 600V 60A 190W Infineon Technologies |
6,984 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 600 V | 60 A | 190 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R07N2E4BOSA1IGBT MODULE 650V 70A Infineon Technologies |
2,233 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 650 V | 70 A | - | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R12KS4CBOSA1IGBT MOD 1200V 70A 360W Infineon Technologies |
4,215 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 1200 V | 70 A | 360 W | 3.7V @ 15V, 50A | 5 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FD600R06ME3_B11_S2IGBT MOD 600V 600A 2250W Infineon Technologies |
4,373 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 600 A | 2250 W | 1.6V @ 15V, 600A | 5 mA | 60 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FD600R06ME3S2BOSA1IGBT MOD 600V 600A 2250W Infineon Technologies |
7,224 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Obsolete | Trench Field Stop | Single | 600 V | 600 A | 2250 W | 1.6V @ 15V, 600A | 400 nA | 60 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF600R07ME4B11BOSA1IGBT MOD 650V 700A 1800W Infineon Technologies |
5,000 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 650 V | 700 A | 1800 W | 1.95V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF600R12ME4B11BPSA1IGBT MODULE 1200V 4050W Infineon Technologies |
5,646 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1200 V | - | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF600R12ME4CB11BOSA1IGBT MOD 1200V 1060A 4050W Infineon Technologies |
6,242 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF600R17ME4B11BOSA1IGBT MODULE VCES 1700V 600A Infineon Technologies |
4,271 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | - | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
