Home > Products > Discrete Semiconductor Products > Transistors > IGBTs > IGBT Modules

IGBT Modules

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package

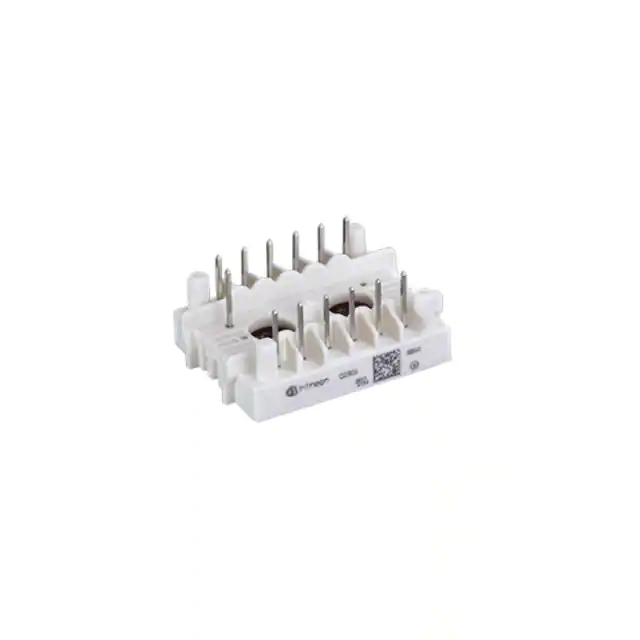

FS20R06VE3B2BOMA1 IGBT MOD 600V 25A 71.5W Infineon Technologies	2,653	RFQ	-	-	Module	Tray	Obsolete	-	Three Phase Inverter	600 V	25 A	71.5 W	2V @ 15V, 20A	1 mA	1.14 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FS25R12KE3GBOSA1 IGBT MOD 1200V 40A 145W Infineon Technologies	7,558	RFQ	-	-	Module	Tray	Discontinued at Digi-Key	-	Full Bridge	1200 V	40 A	145 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module

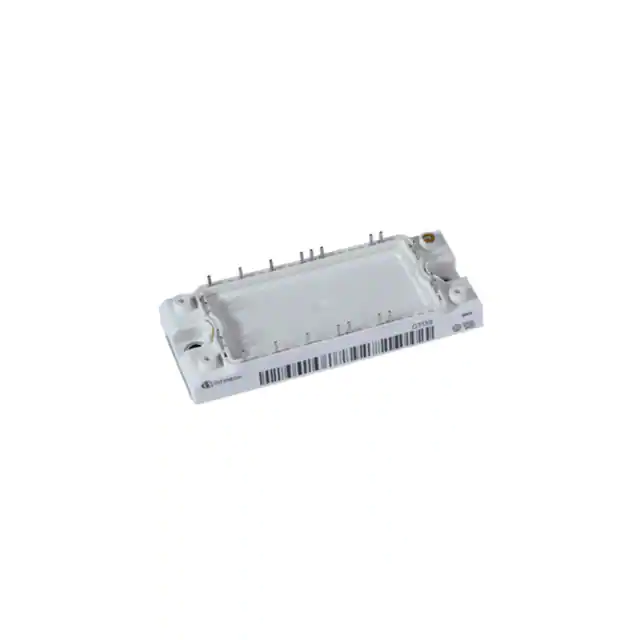

FS25R12KT3BOSA1 IGBT MOD 1200V 40A 145W Infineon Technologies	3,831	RFQ	-	EconoPACK™ 2	Module	Tray	Discontinued at Digi-Key	Trench Field Stop	Full Bridge	1200 V	40 A	145 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module
FS25R12YT3BOMA1 IGBT MOD 1200V 40A 165W Infineon Technologies	2,483	RFQ	-	-	Module	Tray	Obsolete	-	Three Phase Inverter	1200 V	40 A	165 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module
FS30R06VE3BOMA1 IGBT MODULE 600V 34A 88W Infineon Technologies	6,923	RFQ	-	-	Module	Tray	Obsolete	-	Three Phase Inverter	600 V	34 A	88 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FS30R06XE3BOMA1 IGBT MODULE 600V 37A 100W Infineon Technologies	9,164	RFQ	-	-	Module	Tray	Obsolete	-	Full Bridge	600 V	37 A	100 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FS30R06XL4BOMA1 IGBT MODULE 600V 35A 119W Infineon Technologies	7,052	RFQ	-	-	Module	Tray	Obsolete	-	Full Bridge Inverter	600 V	35 A	119 W	2.55V @ 15V, 30A	5 mA	1.35 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module
FS35R12KT3BOSA1 IGBT MOD 1200V 55A 210W Infineon Technologies	5,685	RFQ	-	EconoPACK™ 2	Module	Tray	Discontinued at Digi-Key	-	Full Bridge Inverter	1200 V	55 A	210 W	2.15V @ 15V, 35A	5 mA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module

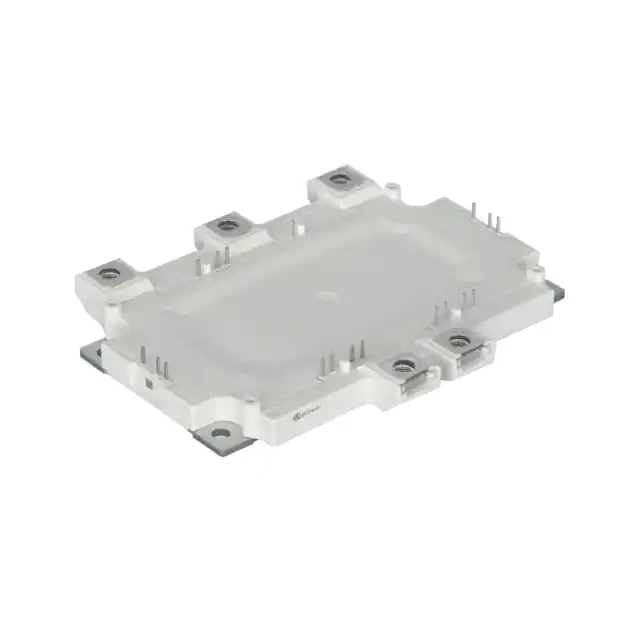

FS400R12A2T4IBPSA1 IGBT MOD 1200V 400A 1500W Infineon Technologies	9,120	RFQ	-	HybridPACK™ 2	Module	Tray	Obsolete	Trench Field Stop	Full Bridge	1200 V	400 A	1500 W	1.85V @ 15V, 300A	1 mA	25 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FS50R06YL4BOMA1 IGBT MODULE 600V 55A 202W Infineon Technologies	7,367	RFQ	-	-	Module	Tray	Obsolete	-	Three Phase Inverter	600 V	55 A	202 W	2.55V @ 15V, 50A	5 mA	200 pF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module

Total 1426 Record«Prev 1... 129 130 131 132133134 135 136...143 Next»
