IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

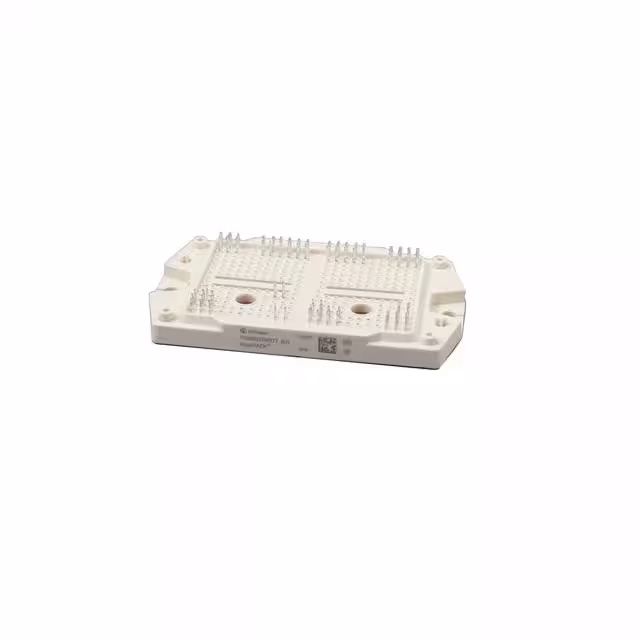

FS100R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-711 Infineon Technologies |
1 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FF100R12KS4HOSA1IGBT MOD 1200V 150A 780W Infineon Technologies |
3,303 | 0.00 |
|
- |
C | Module | Tray | Active | - | 2 Independent | 1200 V | 150 A | 780 W | 3.7V @ 15V, 100A | 5 mA | 650 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
F3L200R07W2S5FB11BOMA1IGBT MODULE LOW POWER EASY Infineon Technologies |
6,389 | 0.00 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 95 A | - | 1.38V @ 15V, 100A | 1 mA | 14.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
FS50R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
1 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP75R12N2T7PB11BPSA1LOW POWER ECONO Infineon Technologies |
1 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF200R17KE4HOSA1IGBT MOD 1700V 310A 1250W Infineon Technologies |
4,034 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 310 A | 1250 W | 2.3V @ 15V, 200A | 1 mA | 18 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP50R12N2T7PB11BPSA1LOW POWER ECONO Infineon Technologies |
7,006 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 50 A | - | 1.8V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|

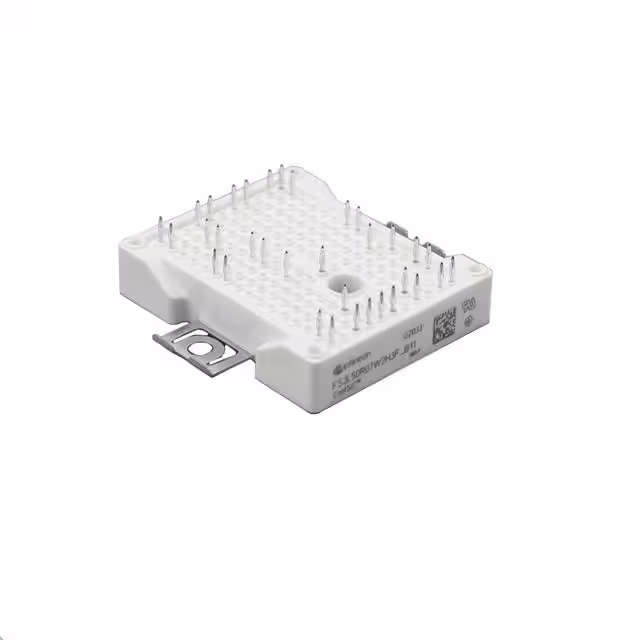

FS3L50R07W2H3FB11BPSA1IGBT MOD 650V 50A 20MW Infineon Technologies |
4,927 | 0.00 |
|
- |
EasyPACK™ 2B | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | - | 1.8V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF150R12KS4HOSA1IGBT MOD 1200V 225A 1250W Infineon Technologies |
5,686 | 0.00 |
|
- |
C | Module | Tray | Active | - | 2 Independent | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF450R07ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies |
1 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | 560 A | 1450 W | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
