IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM75RL-24NFIGBT MOD 1200V 75A 520W Powerex Inc. |
5,526 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

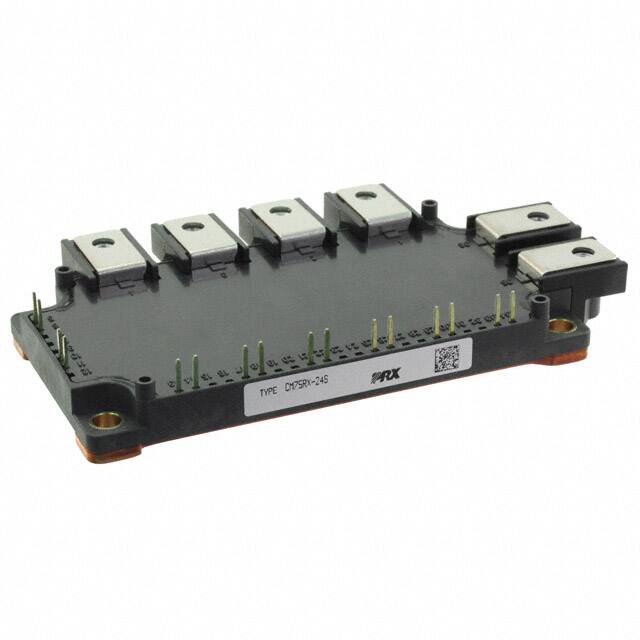

CM75RX-24SIGBT MOD 1200V 75A 600W Powerex Inc. |
6,600 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.15V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-24FIGBT MOD 1200V 150A 600W Powerex Inc. |
5,828 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 150 A | 600 W | 2.4V @ 15V, 150A | 1 mA | 59 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TU-24FIGBT MOD 1200V 50A 320W Powerex Inc. |
7,344 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 50 A | 320 W | 2.4V @ 15V, 50A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

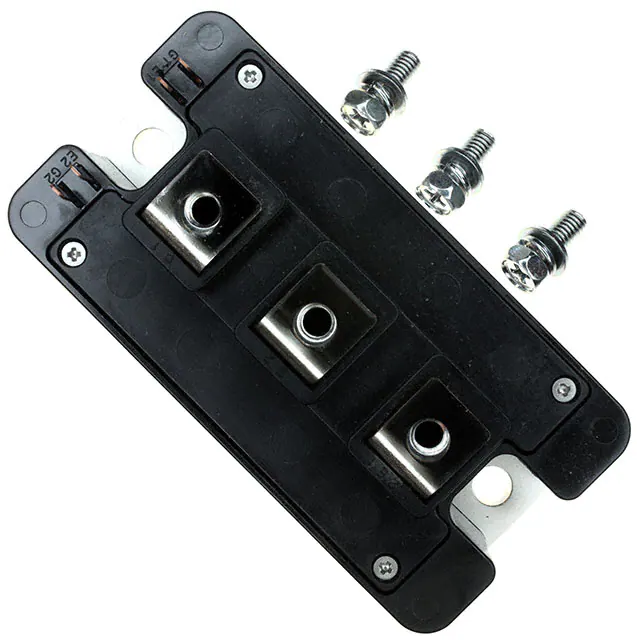

CM300DY-12NFIGBT MOD 600V 300A 780W Powerex Inc. |
9,235 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.2V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
QIS4506001IGBT MODULE 4500V 60A Powerex Inc. |
6,145 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 4500 V | 60 A | - | 3.9V @ 15V, 67A | 1 mA | 9 nF @ 10 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DX-24SIGBT MOD 1200V 300A 2270W Powerex Inc. |
6,166 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.15V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75MXA-24SIGBT MOD 1200V 75A 600W Powerex Inc. |
9,691 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.25V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100TX-24SIGBT MOD 1200V 100A 750W Powerex Inc. |
5,669 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 100 A | 750 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100RL-12NFIGBT MOD 600V 100A 540W Powerex Inc. |
3,157 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 100 A | 540 W | 2.2V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
