Home > Products > Discrete Semiconductor Products > Transistors > IGBTs > IGBT Modules

IGBT Modules

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FP25R12W1T7B11BPSA1 IGBT MODULE 1200V 25A 20MW EASY Infineon Technologies	24	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	1.6V @ 15V, 25A (Typ)	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C	Chassis Mount	AG-EASY1B-2
FP25R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	13	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	-	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY2B
F3L75R12W1H3B27BOMA1 IGBT MOD 1200V 45A 275W Infineon Technologies	13	RFQ	-	-	Module	Tray	Active	-	Three Phase Inverter	1200 V	45 A	275 W	1.7V @ 15V, 30A	1 mA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
VS-ENM040M60P POWER MODULE Vishay General Semiconductor - Diodes Division	5	RFQ	-	*	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FP25R12W2T7B11BPSA1 LOW POWER EASY Infineon Technologies	2	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	1.6V @ 15V, 25A	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY2B-2

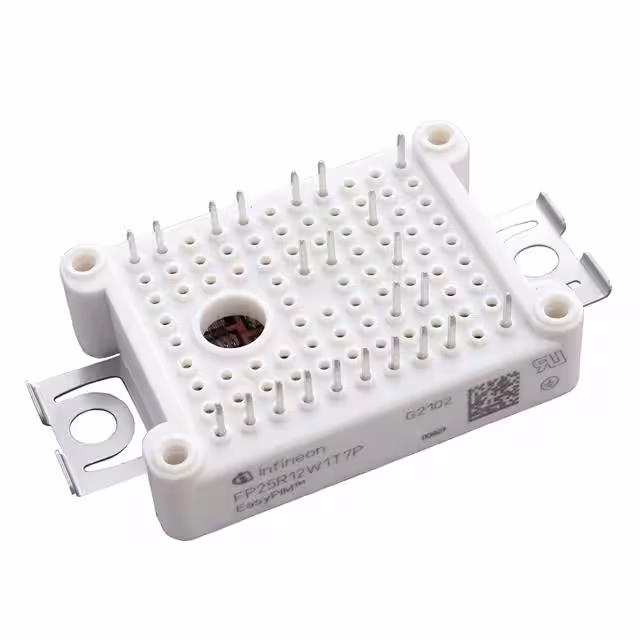

FP25R12W1T7PBPSA1 LOW POWER EASY AG-EASY1B-711 Infineon Technologies	20	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	-	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B
FS75R17W2E4PB11BPSA1 LOW POWER EASY Infineon Technologies	18	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1700 V	45 A	-	2.3V @ 15V, 75A	35 µA	6.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-EASY2B
FP35R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	9	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	-	-	5.8 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B-2
DF150R12W1H3FB11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	24	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12W2T7B11BOMA1 LOW POWER EASY Infineon Technologies	11	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	-	1.6V @ 15V, 35A	5.8 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY2B-2
NXH100B120H3Q0PG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	23	RFQ	-	-	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	22-PIM (55x32.5)
NXH100B120H3Q0PTG IGBT MODULE 1200V 50A 186W 22PIM onsemi	22	RFQ	-	-	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	50 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	22-PIM (55x32.5)
NXH100B120H3Q0SG PIM 60-80KW Q0BOOST-L57 1200V, 1 onsemi	20	RFQ	-	-	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	61 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	22-PIM/Q0BOOST (55x32.5)

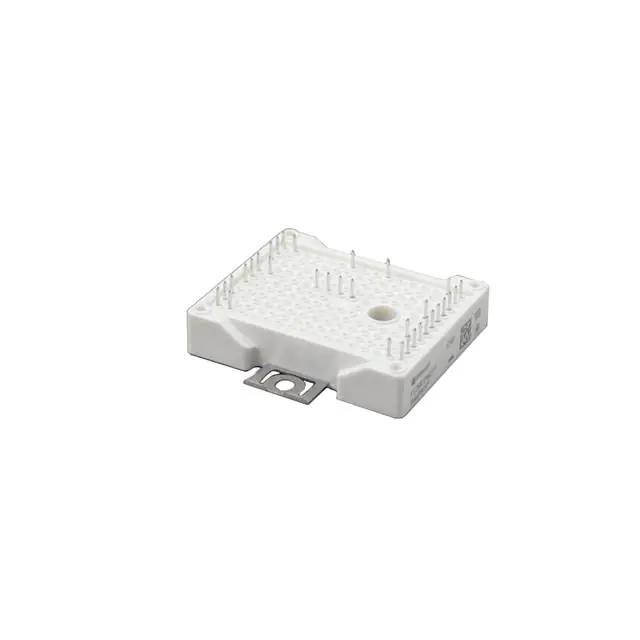

FS75R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	6	RFQ	-	EasyPACK™, TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	65 A	-	-	13 µA	15.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY2B
VS-ENK025C65S POWER MODULE Vishay General Semiconductor - Diodes Division	8	RFQ	-	*	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
F3L75R07W2E3B11BOMA1 IGBT MODULE 650V 95A 250W Infineon Technologies	12	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	250 W	1.9V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
MIXA40W1200TED IGBT MODULE 1200V 60A 195W E2 IXYS	2	RFQ	-	-	E2	Box	Active	PT	Three Phase Inverter with Brake	1200 V	60 A	195 W	2.1V @ 15V, 35A	2.1 mA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
F3L75R12W1H3BPSA1 LOW POWER EASY AG-EASY1B-311 Infineon Technologies	24	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS75R12W2T4BOMA1 IGBT MOD 1200V 107A 375W Infineon Technologies	9	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Full Bridge	1200 V	107 A	375 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
DF200R07W2H3B77BPSA1 LOW POWER EASY AG-EASY2B-411 Infineon Technologies	15	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Level Inverter	650 V	70 A	-	2V @ 15V, 50A	21 µA	2.95 nF @ 650 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-EASY2B

Total 5890 Record«Prev 1... 23 24 25 262728 29 30...295 Next»
