Single IGBTs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT60GT60BRGIGBT NPT 600V 100A TO247 Microchip Technology |
1,936 | 0.00 |
|
Datasheet |
Thunderbolt IGBT® | TO-247-3 | Tube | Active | NPT | 600 V | 100 A | 360 A | 2.5V @ 15V, 60A | 500 W | 3.4mJ | Standard | 275 nC | 26ns/395ns | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT65GP60B2GIGBT PT 600V 100A Microchip Technology |
115 | 0.00 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 600 V | 100 A | 250 A | 2.7V @ 15V, 65A | 833 W | 605µJ (on), 896µJ (off) | Standard | 210 nC | 30ns/91ns | 400V, 65A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|

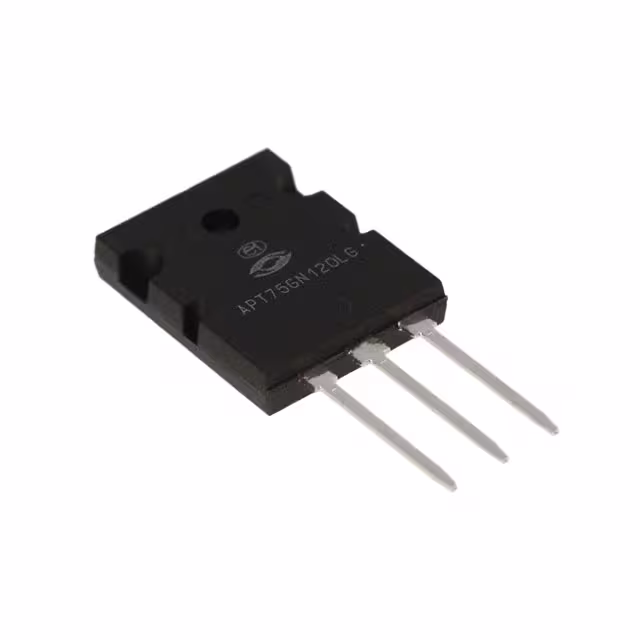

APT75GN120LGIGBT TRENCH FS 1200V 200A TO264 Microchip Technology |
20 | 0.00 |
|
Datasheet |
- | TO-264-3, TO-264AA | Tube | Active | Trench Field Stop | 1200 V | 200 A | 225 A | 2.1V @ 15V, 75A | 833 W | 8620µJ (on), 11400µJ (off) | Standard | 425 nC | 60ns/620ns | 800V, 75A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 [L] |
|
|
APT15GP60BDQ1GIGBT PT 600V 56A TO247 Microchip Technology |
100 | 0.00 |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Active | PT | 600 V | 56 A | 65 A | 2.7V @ 15V, 15A | 250 W | 130µJ (on), 120µJ (off) | Standard | 55 nC | 8ns/29ns | 400V, 15A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT50GN60BDQ2GIGBT TRENCH FS 600V 107A TO247 Microchip Technology |
80 | 0.00 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 107 A | 150 A | 1.85V @ 15V, 50A | 366 W | 1185µJ (on), 1565µJ (off) | Standard | 325 nC | 20ns/230ns | 400V, 50A, 4.3Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT33GF120BRGIGBT NPT 1200V 52A TO247 Microchip Technology |
78 | 0.00 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPT | 1200 V | 52 A | 104 A | 3.2V @ 15V, 25A | 297 W | 2.8mJ (on), 2.8mJ (off) | Standard | 170 nC | 25ns/210ns | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT80GA60LD40IGBT PT 600V 143A TO264 Microchip Technology |
52 | 0.00 |
|
Datasheet |
POWER MOS 8™ | TO-264-3, TO-264AA | Tube | Active | PT | 600 V | 143 A | 240 A | 2.5V @ 15V, 47A | 625 W | 840µJ (on), 751µJ (off) | Standard | 230 nC | 23ns/158ns | 400V, 47A, 4.7Ohm, 15V | 22 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
|
|
APT100GN120B2GIGBT TRENCH FIELD STP 1200V 245A Microchip Technology |
39 | 0.00 |
|
Datasheet |
- | TO-247-3 Variant | Tube | Active | Trench Field Stop | 1200 V | 245 A | 300 A | 2.1V @ 15V, 100A | 960 W | 11mJ (on), 9.5mJ (off) | Standard | 540 nC | 50ns/615ns | 800V, 100A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
|
APT43GA90BD30IGBT PT 900V 78A TO247 Microchip Technology |
80 | 0.00 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 78 A | 129 A | 3.1V @ 15V, 47A | 337 W | 875µJ (on), 425µJ (off) | Standard | 116 nC | 12ns/82ns | 600V, 25A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT35GN120BGIGBT NPT FS 1200V 94A TO247 Microchip Technology |
26 | 0.00 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
