LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2C5-30801202EH600LED COB LUXEON WHT RECT 3000K Lumileds |
281 | 4.49 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1450lm (Typ) | 350mA | 85°C | 37V | 112 lm/W | 700mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
L2C5-30801203H09P0LED COB LUXEON WHT RECT 3000K Lumileds |
924 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L2C5-30901204E0900LED COB LUXEON WHT RECT 3000K Lumileds |
173 | 7.16 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2378lm (Typ) | 700mA | 85°C | 37V | 92 lm/W | 1.35A | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
L2C5-30901203E09C0LED COB LUXEON WHT RECT 3000K Lumileds |
190 | 7.97 |
|
Datasheet |
LUXEON CoB, CrispWhite Gen 2 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1006lm (Typ) | 300mA | 85°C | 35V | 96 lm/W | - | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
E1300.jpg)
|
L2C5-30801205E1300LED COB LUXEON WHT RECT 3000K Lumileds |
135 | 21.02 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2905lm (Typ) | 600mA | 85°C | 35V | 138 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
E0900.jpg)
|
L2C5-30801203E0900LED COB LUXEON WHT RECT 3000K Lumileds |
395 | 5.76 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1432lm (Typ) | 300mA | 85°C | 34.5V | 138 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|

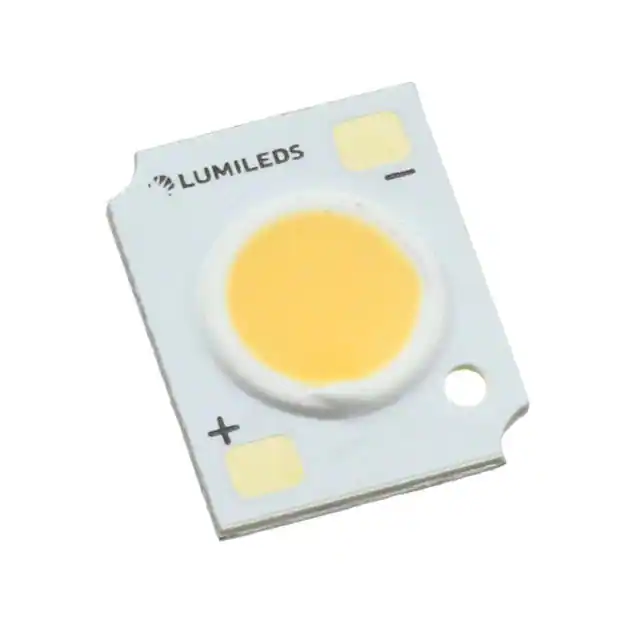

L2C5-30901202E06C0LED COB LUXEON WHT RECT 3000K Lumileds |
277 | 9.17 |
|
Datasheet |
LUXEON CoB, CrispWhite Gen 2 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 651lm (Typ) | 200mA | 85°C | 35V | 93 lm/W | - | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
|
L2C5-30801205E1100LED COB LUXEON WHT RECT 3000K Lumileds |
381 | 8.02 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3750lm (Typ) | 900mA | 85°C | 37V | 113 lm/W | 1.65A | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 11.00mm Dia | Flat |
|
|
L2C5-40901203E0900LED COB LUXEON WHT RECT 4000K Lumileds |
284 | 12.62 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1301lm (Typ) | 300mA | 85°C | 34.5V | 126 lm/W | 600mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|

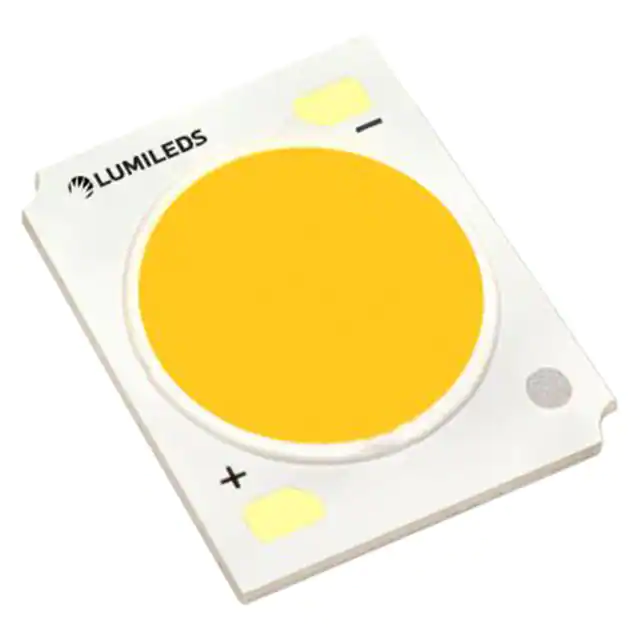

L2C5-40801208E1500LED COB LUXEON WHT RECT 4000K Lumileds |
141 | 10.55 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 4542lm (Typ) | 900mA | 85°C | 34.8V | 145 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | Flat |
