LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

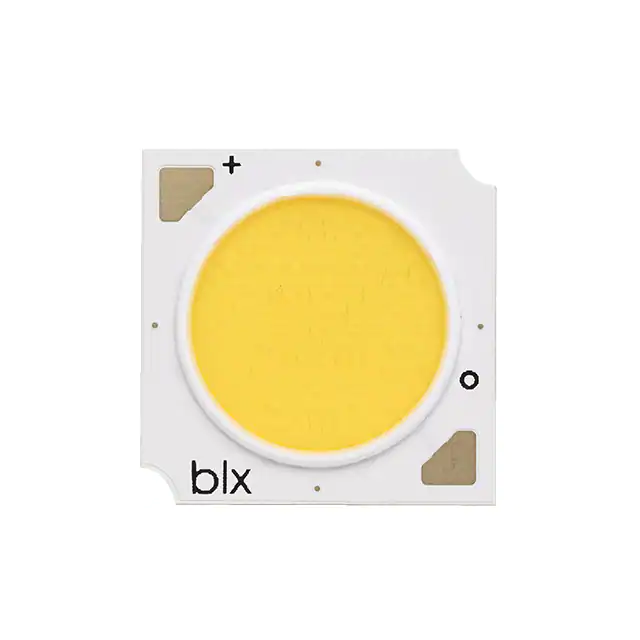

BXRE-65C2001-C-73LED COB V13 CL WHT SQUARE 6500K Bridgelux |
2,988 | 4.63 |
|
Datasheet |
Gen 7 V13 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3739lm (Typ) | 630mA | 85°C | 33.9V | 160 lm/W | 1.26A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
BXRE-65E2001-C-73LED COB V13 CL WHT SQUARE 6500K Bridgelux |
3,878 | 4.63 |
|
Datasheet |
Gen 7 V13 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3383lm (Typ) | 630mA | 85°C | 33.9V | 158 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
BXRC-27G1000-C-82VERO 10C WARM WHITE LED ARRAY Bridgelux |
4,191 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Starboard | 1274lm (Typ) | 300mA | 25°C | 30.7V | 138 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-40E1000-C-82VERO 10C NEUTRAL WHITE LED ARRAY Bridgelux |
4,564 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1689lm (Typ) | 300mA | 25°C | 30.7V | 183 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-27G10H0-C-73VERO 10C WARM WHITE LED ARRAY Bridgelux |
1,246 | 0.00 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1443lm (Typ) | 360mA | 85°C | 33.8V | 118 lm/W | 720mA | 90 | 120° | Dimming | 19.00mm Dia | 1.80mm | 9.90mm Dia | Flat |
|
|
BXRC-30G10H0-C-82VERO 10C WARM WHITE LED ARRAY Bridgelux |
3,541 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Starboard | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-35G1000-C-82VERO 10C WARM WHITE LED ARRAY Bridgelux |
4,966 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1380lm (Typ) | 300mA | 25°C | 30.7V | 150 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-40C1001-C-74VERO 10C NEUTRAL WHITE LED ARRAY Bridgelux |
1,208 | 0.00 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Starboard | 1962lm (Typ) | 360mA | 85°C | 33.8V | 161 lm/W | 720mA | 70 | 120° | Dimming | 21.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27G10H0-C-82VERO 10C WARM WHITE LED ARRAY Bridgelux |
2,141 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Starboard | 1329lm (Typ) | 300mA | 25°C | 30.7V | 144 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-27E1000-C-82VERO 10C WARM WHITE LED ARRAY Bridgelux |
2,081 | 0.00 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Starboard | 1544lm (Typ) | 300mA | 25°C | 30.7V | 168 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
