LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-TR-2750G-2000-A-15LED COB VESTA WARM WHT SQU 3850K Bridgelux |
2,897 | 0.00 |
|
Datasheet |
Vesta™ | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 2600lm (Typ) | 700mA | 25°C | 36.3V | 103 lm/W | 1.4A | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.40mm | 13.00mm Dia | Flat |
|
BXRC-56H10K0-D-74LED COB VERO 29 WHT RND 5600K Bridgelux |
1,234 | 24.60 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 10410lm (Typ) | 2.1A | 25°C | 37.6V | 132 lm/W | 4.2A | 97 (Typ) | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|

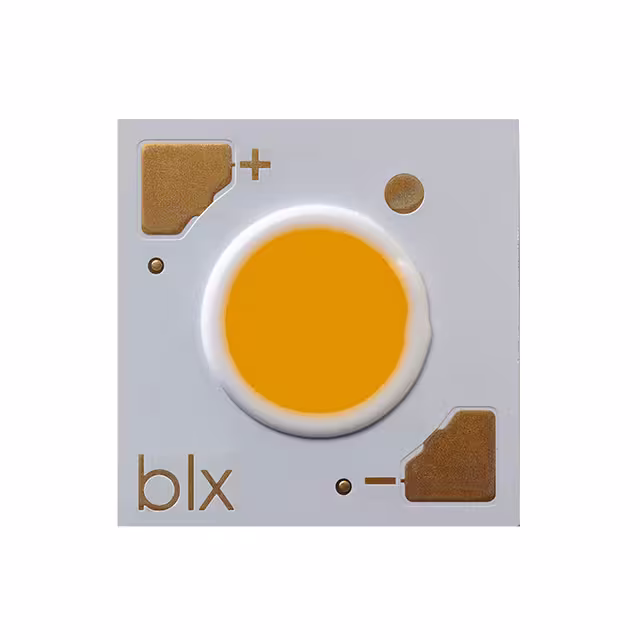

BXRH-27G1000-C-23LED COB H6 ARRAY WM WHT SQ 2700K Bridgelux |
2,930 | 0.00 |
|
Datasheet |
H6 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1084lm (Typ) | 750mA | 25°C | 18.3V | 79 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia | Flat |
|
BXRH-27G3000-D-23LED COB H9 ARRAY WM WHT SQ 2700K Bridgelux |
4,692 | 0.00 |
|
Datasheet |
H9 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2891lm (Typ) | 1A | 25°C | 36.6V | 79 lm/W | 1.4A | 97 (Typ) | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia | Flat |
|
|
BXRH-27H1000-C-23LED COB H6 ARRAY WM WHT SQ 2700K Bridgelux |
1,671 | 0.00 |
|
Datasheet |
H6 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1043lm (Typ) | 750mA | 25°C | 18.3V | 76 lm/W | 1.05A | 97 (Typ) | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia | Flat |
|
|
BXRH-27H3000-D-23LED COB H9 ARRAY WM WHT SQ 2700K Bridgelux |
1,276 | 0.00 |
|
Datasheet |
H9 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2782lm (Typ) | 1A | 25°C | 36.6V | 76 lm/W | 1.4A | 97 (Typ) | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia | Flat |
|
|
BXRH-30H1000-C-23LED COB H6 ARRAY WHT SQU 3000K Bridgelux |
4,371 | 0.00 |
|
Datasheet |
H6 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1084lm (Typ) | 750mA | 25°C | 18.3V | 79 lm/W | 1.05A | 97 (Typ) | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia | Flat |
|
|
BXRH-30H3000-D-23LED COB H9 ARRAY WHT SQU 3000K Bridgelux |
1,026 | 0.00 |
|
Datasheet |
H9 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2891lm (Typ) | 1A | 25°C | 36.6V | 79 lm/W | 1.4A | 97 (Typ) | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia | Flat |
|
|
BXRH-35G1000-C-23LED COB H6 ARRAY WM WHT SQ 3500K Bridgelux |
3,019 | 0.00 |
|
Datasheet |
H6 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1180lm (Typ) | 750mA | 25°C | 18.3V | 86 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia | Flat |
|
|
BXRH-40G1000-C-23LED COB H6 ARR NEUT WHT SQ 4000K Bridgelux |
3,017 | 0.00 |
|
Datasheet |
H6 Array | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1208lm (Typ) | 750mA | 25°C | 18.3V | 88 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia | Flat |
