Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

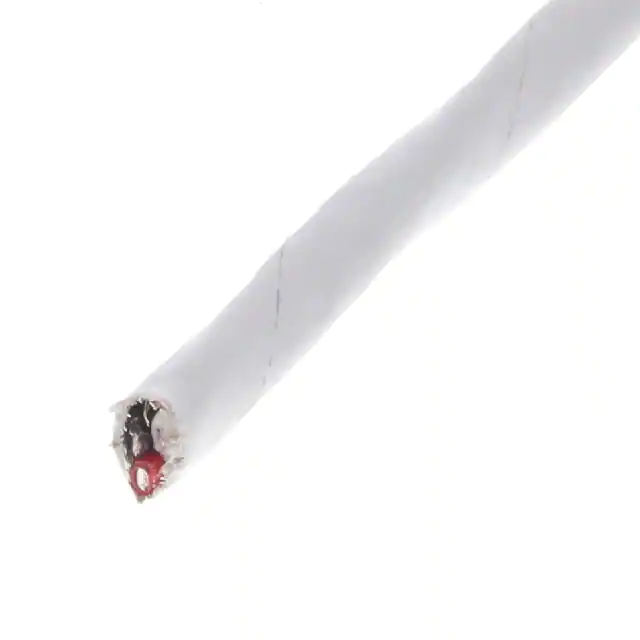

2829/3 WH001CABLE 3COND 18AWG WHITE SHLD Alpha Wire |
3,999 | 14129.68 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.197" (5.00mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -55°C ~ 200°C | Communication, Control | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
85018CY BK002CABLE 18COND 20AWG BLACK SHLD Alpha Wire |
4,962 | 7489.73 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 18 | 20 AWG | 63/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.662" (16.81mm) | Braid | 500.0' (152.4m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0600" (1.524mm) | Poly-Vinyl Chloride (PVC) | - |
|

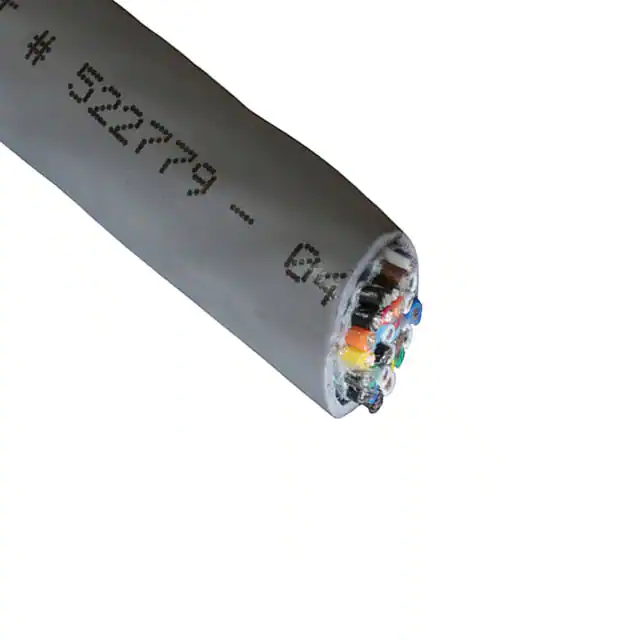

5489/15C SL002MULTI-PAIR 30COND 22AWG Alpha Wire |
3,191 | 7786.90 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.451" (11.46mm) | Foil | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M8708500 BK001MULTI-PAIR 100COND 18AWG Alpha Wire |
3,056 | 17768.12 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 100 (50 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 1.429" (36.30mm) | Foil | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0850" (2.159mm) | Poly-Vinyl Chloride (PVC) | - |
|
77220 SL001CABLE 15COND 18AWG SHLD Alpha Wire |
1,817 | 15006.52 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 15 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.405" (10.29mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M8748360 BK001MULTI-PAIR 72COND 18AWG Alpha Wire |
2,919 | 17777.77 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 72 (36 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 1.357" (34.47mm) | Foil | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0850" (2.159mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5429 SL005CABLE 9COND 18AWG SLATE Alpha Wire |
4,240 | 1538.88 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 9 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.535" (13.59mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5440/7 SL005CABLE 7CON 16AWG SLATE SHLD Alpha Wire |
4,945 | 1538.88 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.506" (12.85mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

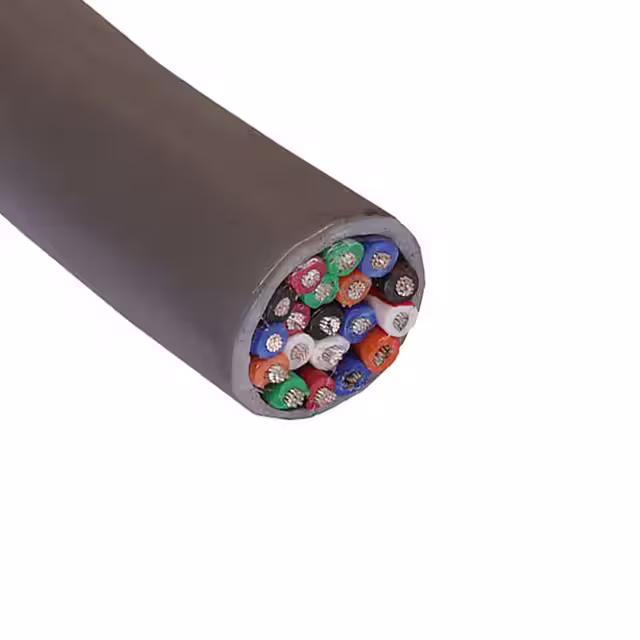

1079 SL002CABLE 19COND 16AWG SLATE Alpha Wire |
3,004 | 9976.56 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 19 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.749" (19.03mm) | - | 500.0' (152.4m) | Slate | - | - | 600 V | -20°C ~ 80°C | Communication, Control | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
87704 BK199CABLE 4COND 18AWG BLACK 1000' Alpha Wire |
3,184 | 0.00 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 18 AWG | 37/0.0167" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.555" (14.10mm) | - | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0600" (1.524mm) | Thermoplastic Elastomer (TPE) | - |
