Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

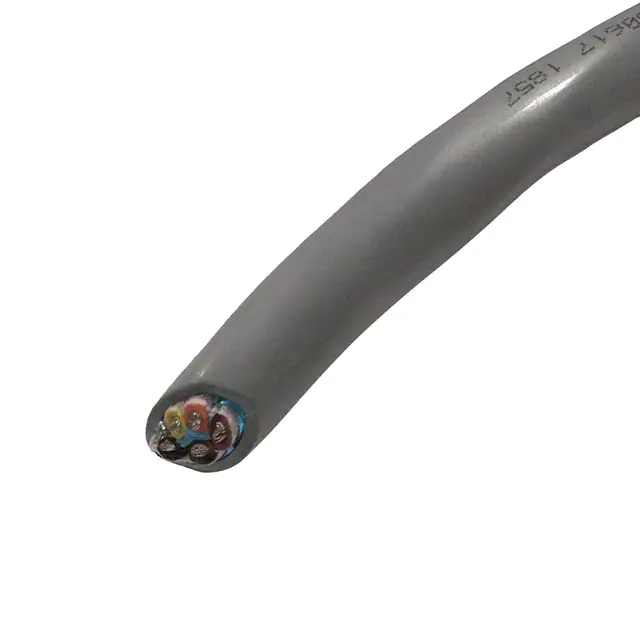

5445 SL002CABLE 5COND 14AWG SLATE Alpha Wire |
2,052 | 7423.82 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.505" (12.83mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
5180C SL001CABLE 10COND 16AWG SHLD Alpha Wire |
3,255 | 14897.48 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 10 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.460" (11.68mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5324C SL001CABLE 19COND 20AWG SHLD Alpha Wire |
1,119 | 14900.46 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 19 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.448" (11.38mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5445 SL005CABLE 5COND 14AWG SLATE Alpha Wire |
2,829 | 1581.49 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.505" (12.83mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
65025CY SL002CABLE 25COND 20AWG SHLD Alpha Wire |
1,791 | 7754.36 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.712" (18.08mm) | Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M8746240 BK005MULTI-PAIR 48COND 16AWG BLACK Alpha Wire |
4,373 | 1548.23 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 48 (24 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 1.292" (32.82mm) | Foil | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0850" (2.159mm) | Poly-Vinyl Chloride (PVC) | - |
|
M5377 SL002CABLE 50COND 20AWG SHLD Alpha Wire |
3,528 | 10266.70 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 50 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.713" (18.11mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

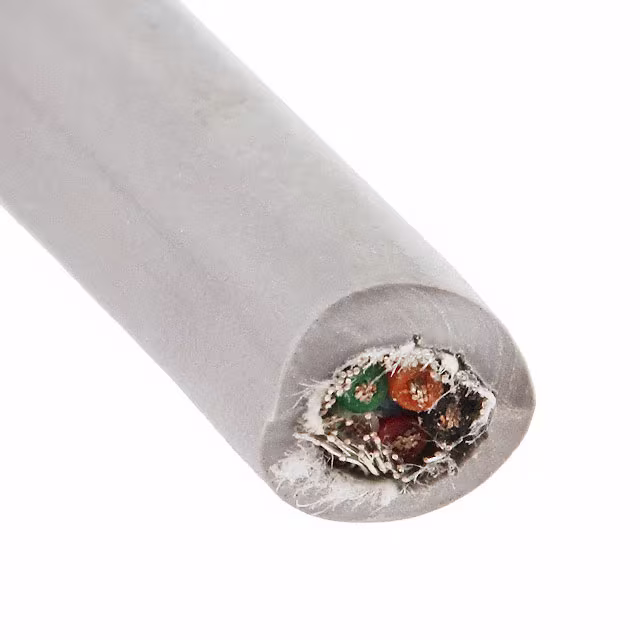

79112 SL005CABLE 5COND 18AWG SLATE SHLD Alpha Wire |
2,006 | 1548.91 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.284" (7.21mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
85012CY BK199CABLE 12COND 20AWG BLK SHLD 100' Alpha Wire |
2,478 | 0.00 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 20 AWG | 63/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.564" (14.33mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5599/15C SL002CABLE 15COND 24AWG SHLD Alpha Wire |
2,923 | 8050.88 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.337" (8.56mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
