Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWM1002B NC005CABLE 2COND 10AWG 100' Alpha Wire |
4,674 | 0.00 |
|
Datasheet |
- | Spool | Obsolete | Multi-Conductor | 2 | 10 AWG | 19/23 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.353" (8.97mm) | - | 100.0' (30.5m) | - | - | - | 50 V | -20°C ~ 105°C | - | 0.0230" (0.584mm) | Poly-Vinyl Chloride (PVC) | - |
|
74001 GR002CABLE 4CON 22AWG GREEN SHLD 100' Alpha Wire |
1,050 | 422.10 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.256" (6.50mm) | Foil, Braid | 100.0' (30.5m) | Green | UL Style 20549 | Oil Resistant | 300 V | -40°C ~ 80°C | Industrial, Network | 0.0310" (0.787mm) | Polyolefin (PO) | - |
|
|
3430 SL005CABLE 30COND 18AWG SHLD Alpha Wire |
2,382 | 8323.15 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 30 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.667" (16.94mm) | Braid | 100.0' (30.5m) | Slate | - | - | 1 kV | -55°C ~ 105°C | Communication, Control | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC) | - |
|

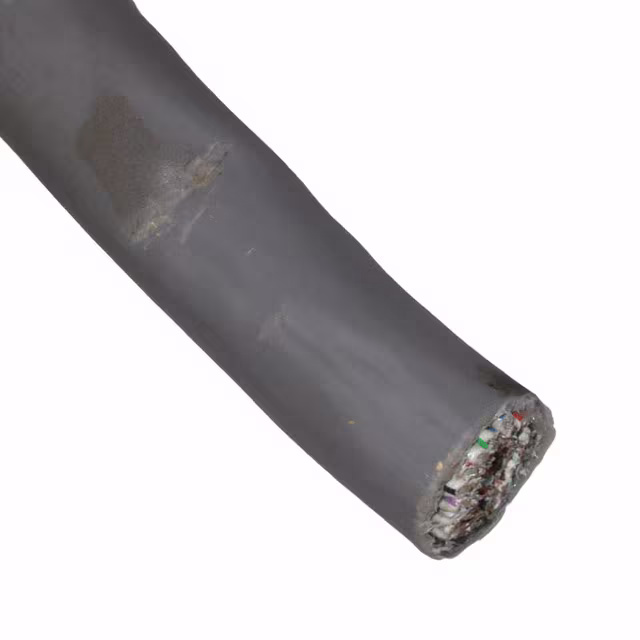

5080/50C SL005CABLE 50COND 16AWG SLATE Alpha Wire |
2,942 | 8542.00 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 50 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.917" (23.29mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5355C SL005MULTI-PAIR 54COND 20AWG Alpha Wire |
4,832 | 8578.35 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.749" (19.03mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55139 NA199MULTI-PAIR 18COND 18AWG 1000' Alpha Wire |
2,613 | 0.00 |
|
Datasheet |
Xtra-Guard® 5 | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 18 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.504" (12.80mm) | Foil, Braid | 1000.0' (304.8m) | Natural | UL Style 20229 | Drain Wire, Rip Cord | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
5139/27C SL005MULTI-PAIR 54COND 18AWG Alpha Wire |
3,895 | 8637.03 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 1.004" (25.50mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5318C SL005CABLE 60COND 22AWG SHLD Alpha Wire |
4,685 | 8661.59 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 60 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.608" (15.44mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
6461 OR005CABLE 2COND 22AWG ORG SHLD 100' Alpha Wire |
3,363 | 144.15 |
|
Datasheet |
- | Spool | Obsolete | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.351" (8.92mm) | Foil | 100.0' (30.5m) | Orange | - | Drain Wire, Rip Cord | 300 V | -40°C ~ 75°C | - | 0.0500" (1.270mm) | High Density Polyethylene (HDPE) | - |
|
|
M3970 SL005MULTI-PAIR 4CON 28AWG SLATE 100' Alpha Wire |
4,755 | 0.00 |
|
Datasheet |
- | Spool | Obsolete | Multi-Pair | 4 (2 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2960 | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - |
