Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6014C SL001MULTI-PAIR 18COND 22AWG 1000' Alpha Wire |
3,975 | 4276.70 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.436" (11.07mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 60°C | Communication, Control | 0.0480" (1.219mm) | Polypropylene (PP) | - |
|
5470C SL001CABLE 10COND 20AWG SHLD 1000' Alpha Wire |
4,391 | 4188.67 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 10 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.352" (8.94mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

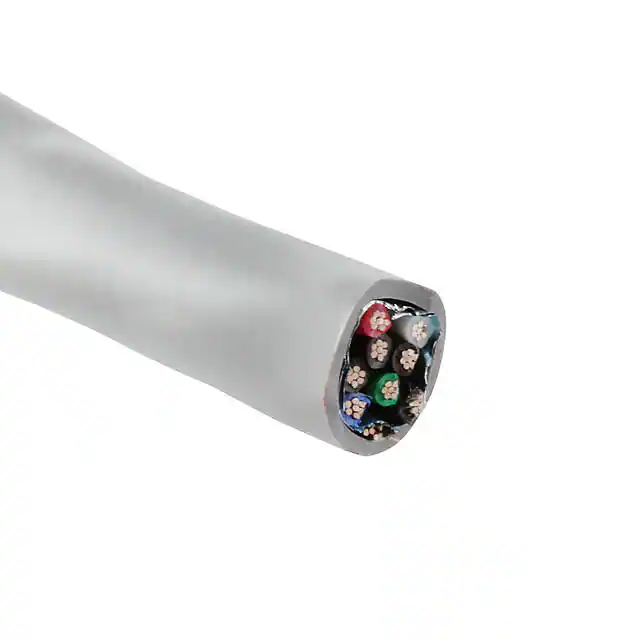

6204C SL002MULTI-PAIR 8CON 24AWG SLATE 500' Alpha Wire |
1,150 | 4214.36 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.304" (7.72mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polypropylene (FPP) | - |
|
1299/20C SL001CABLE 20COND 22AWG SHLD 1000' Alpha Wire |
1,697 | 4319.82 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5164C SL002CABLE 4CON 18AWG SLATE SHLD 500' Alpha Wire |
3,576 | 4419.71 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
58603 SL001MULTI-PAIR 6COND 24AWG 1000' Alpha Wire |
2,554 | 4348.82 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.175" (4.45mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -25°C ~ 125°C | - | 0.0090" (0.229mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
5560C SL001CABLE 5COND 20AWG SHLD 1000' Alpha Wire |
2,643 | 4686.04 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

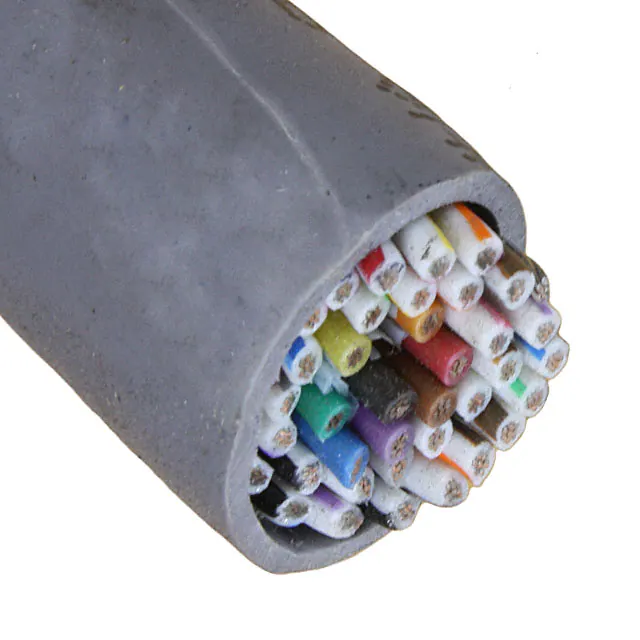

5170/40C SL005CABLE 40COND 18AWG SHLD 100' Alpha Wire |
4,554 | 5167.56 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 40 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.744" (18.90mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

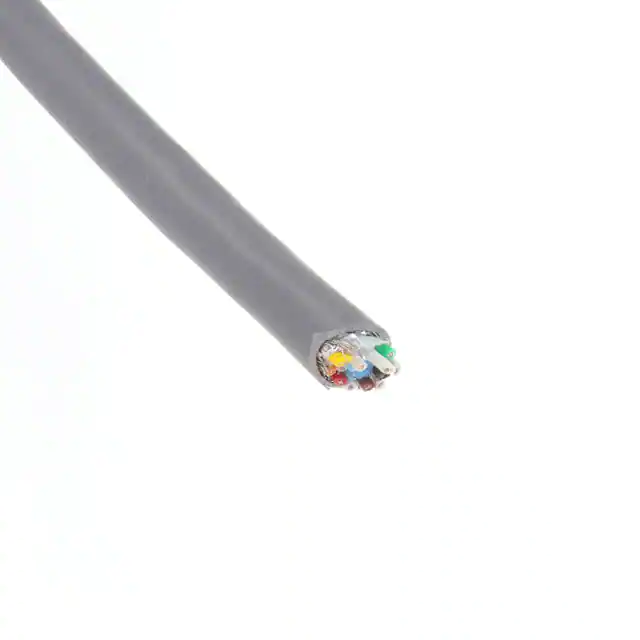

5126C SL001MULTI-PAIR 12COND 22AWG 1000' Alpha Wire |
3,420 | 5983.65 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.344" (8.74mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5010/20C SL001CABLE 20COND 22AWG SLATE 1000' Alpha Wire |
1,843 | 6170.69 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.331" (8.41mm) | - | 1000.0' (304.8m) | Slate | UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
