Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PUR6C04YL-UCABLE CAT6 4COND 23AWG YLW 1000' Panduit Corp |
2,463 | 0.33 |
|
Datasheet |
TX6™ | Spool | Active | Multi-Pair, Cat6 | 4 (2 Pair Twisted) | 23 AWG | Solid | Copper | Poly-Vinyl Chloride (PVC), Riser | 0.210" (5.33mm) | - | 1000.0' (304.8m) | Yellow | ISO 11801, UL Style 1666 | Flame Retardant, Rip Cord | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6C04OR-UCABLE CAT6 4COND 23AWG ORG 1000' Panduit Corp |
3,547 | 0.31 |
|
Datasheet |
TX6™ | Spool | Active | Multi-Pair, Cat6 | 4 (2 Pair Twisted) | 23 AWG | Solid | Copper | Poly-Vinyl Chloride (PVC), Riser | 0.210" (5.33mm) | - | 1000.0' (304.8m) | Orange | ISO 11801, UL Style 1666 | Flame Retardant, Rip Cord | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUP5C04WH-FCABLE COPPER STRANDED Panduit Corp |
4,347 | 0.00 |
|
Datasheet |
TX5e™ | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.189" (4.80mm) | - | 1000.0' (304.8m) | White | - | - | 80 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|

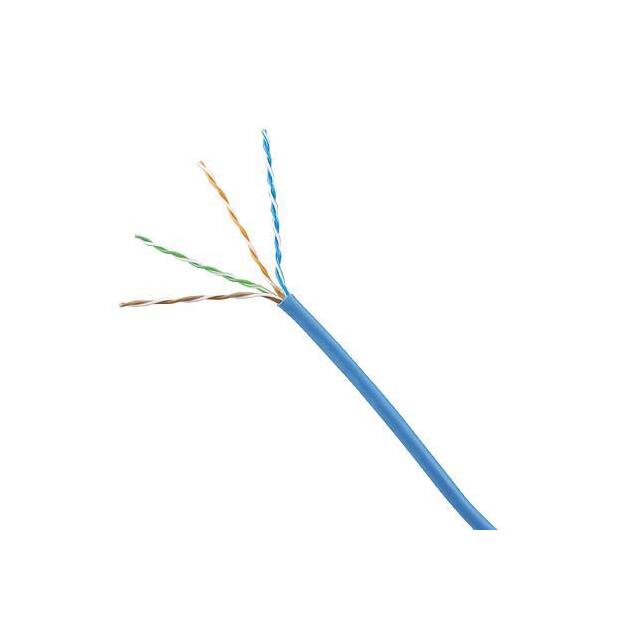

PUP5C04BU-FCABLE COPPER STRANDED Panduit Corp |
4,016 | 0.00 |
|
Datasheet |
TX5e™ | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.189" (4.80mm) | - | 1000.0' (304.8m) | Blue | - | - | 80 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|

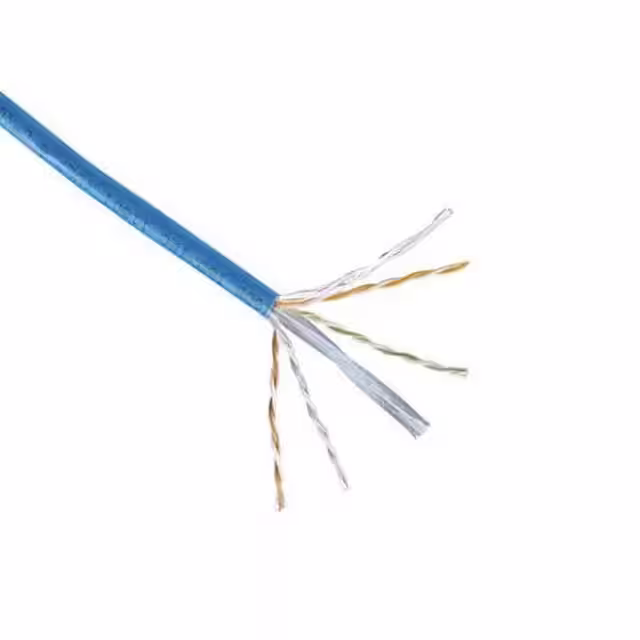

PUR6004WH-WCABLE CAT6 8COND 23AWG WHT Panduit Corp |
1,839 | 365.73 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.231" (5.87mm) | - | 1000.0' (304.8m) | White | - | Drain Wire, Flame Retardant | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6004BL-WCOPPER CABLE, ENHANCED CAT 6, 4- Panduit Corp |
3,381 | 0.38 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Black | - | - | 80 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6004GR-WCOPPER CABLE, ENHANCED CAT 6, 4- Panduit Corp |
2,387 | 0.38 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Green | - | - | 80 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6004IG-WCOPPER CABLE, ENHANCED CAT 6, 4- Panduit Corp |
4,795 | 0.38 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Gray | - | - | 80 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6004OR-WCOPPER CABLE, ENHANCED CAT 6, 4- Panduit Corp |
3,811 | 0.35 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Orange | - | - | 80 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
PUR6004RD-WCOPPER CABLE, ENHANCED CAT 6, 4- Panduit Corp |
3,673 | 0.35 |
|
Datasheet |
TX6000™ | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Red | - | - | 80 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
