Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

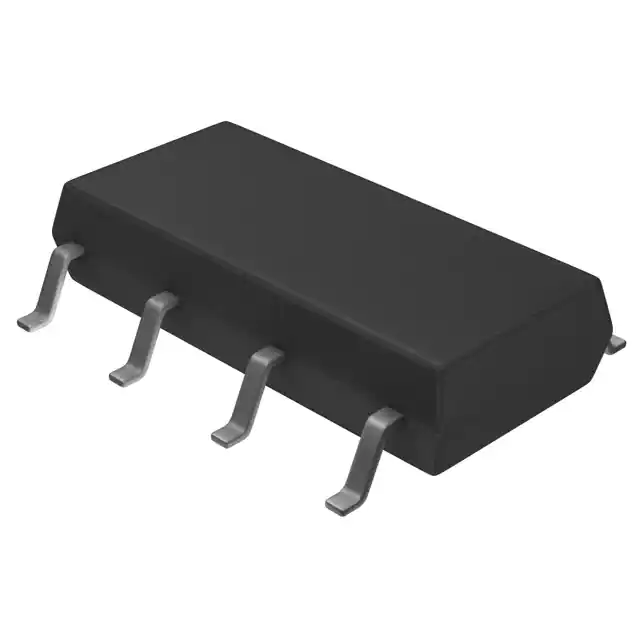

IL388TOPTOISO 2.13KV 2CH TRANS 8SOP Vishay Semiconductor Opto Division |
2,919 | 0.00 |
|
Datasheet |
- | 8-SOP (0.220", 5.60mm Width) | Tape & Reel (TR) | Obsolete | 1 | 2130VDC | - | - | - | 350µs, - | DC | Transistor, Linearized | - | - | 1.8V | 30 mA | - | - | - | 0°C ~ 75°C | Surface Mount | 8-SOP MF |
|
ILD251OPTOISO 5.3KV 2CH TRANS 8DIP Vishay Semiconductor Opto Division |
2,536 | 0.00 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
ILD621OPTOISOLTR 5.3KV 2CH TRANS 8-DIP Vishay Semiconductor Opto Division |
2,921 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ILD66-2OPTOISO 5.3KV 2CH DARLNG 8-DIP Vishay Semiconductor Opto Division |
2,001 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 300% @ 2mA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ILD66-4OPTOISO 5.3KV 2CH DARLNG 8-DIP Vishay Semiconductor Opto Division |
4,240 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 500% @ 2mA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
ILQ66-3OPTOISO 5.3KV 4CH DARLNG 16-DIP Vishay Semiconductor Opto Division |
2,200 | 0.00 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5300Vrms | 400% @ 700µA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
MOC8105OPTOISOLATOR 5.3KV TRANS 6-DIP Vishay Semiconductor Opto Division |
1,281 | 0.09 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 65% @ 10mA | 133% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
SFH615ABMOPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division |
2,805 | 0.00 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 200% @ 5mA | 400% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH615AGBOPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division |
1,180 | 0.00 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH6325OPTOISOLTR 5.3KV 2CH TRANS 8-DIP Vishay Semiconductor Opto Division |
4,489 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 7% @ 16mA | - | 300ns, 600ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
