Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

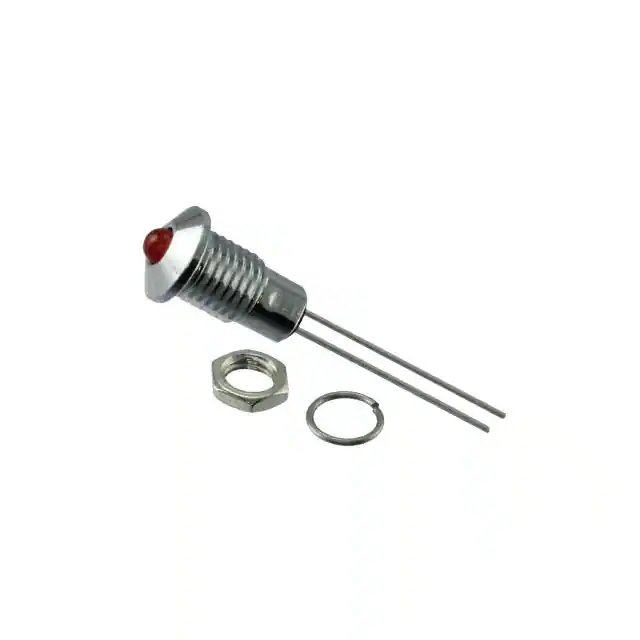

SSI-LXR3612IDLED 3MM RED DIFF PANEL MOUNT Lumex Opto/Components Inc. |
4,252 | 3.09 |
|
Datasheet |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | - | - | - |
|

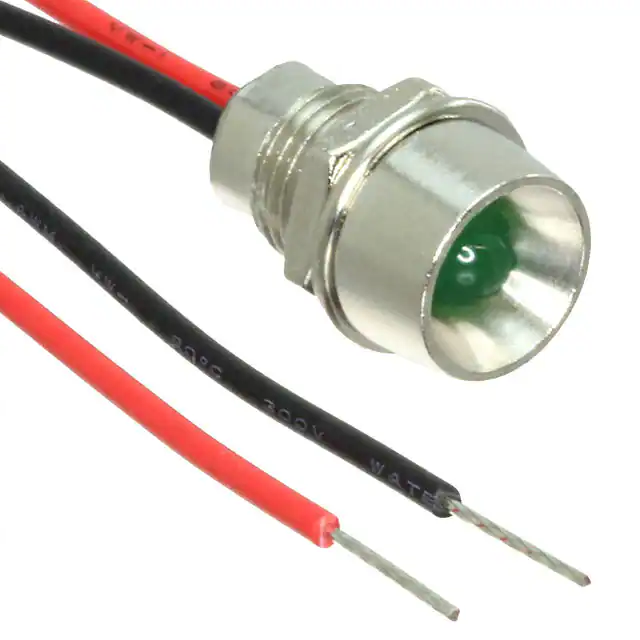

SSI-LXR4815GD-150T-5MM METAL REF IND GREEN W/6" W Lumex Opto/Components Inc. |
3,547 | 3.10 |
|
Datasheet |
- | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 30mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
SSI-LXR4815SRDLED 5MM SUP RED DIFF REFL PNL MT Lumex Opto/Components Inc. |
2,448 | 3.11 |
|
- |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.8V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 300mcd | 660nm | 60° | - | - | - |
|
SSI-LXR3612GD-150LED T-3MM W/LD 565NM GREEN DIFF Lumex Opto/Components Inc. |
3,882 | 1.21 |
|
Datasheet |
- | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.24" (6.20mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 565nm | 60° | Wire Leads - 6.000" (152.40mm) | - | - |
|
|
SSI-LXR4815ID-150LED 5MM RED DIFF REFL6"LDS PNLMT Lumex Opto/Components Inc. |
4,590 | 1.33 |
|
Datasheet |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR3612ID-150LED 3MM PANEL MNT W/24AWG LEADS Lumex Opto/Components Inc. |
4,198 | 1.30 |
|
Datasheet |
- | Bulk | Active | LED | Red | Red | Diffused | DC | 2V | 30mA | Round | 0.24" (6.20mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR1612GD-150LED 3MM FLUSH GRN DIFF6"LDSPNLMT Lumex Opto/Components Inc. |
1,546 | 1.36 |
|
Datasheet |
- | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 30mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

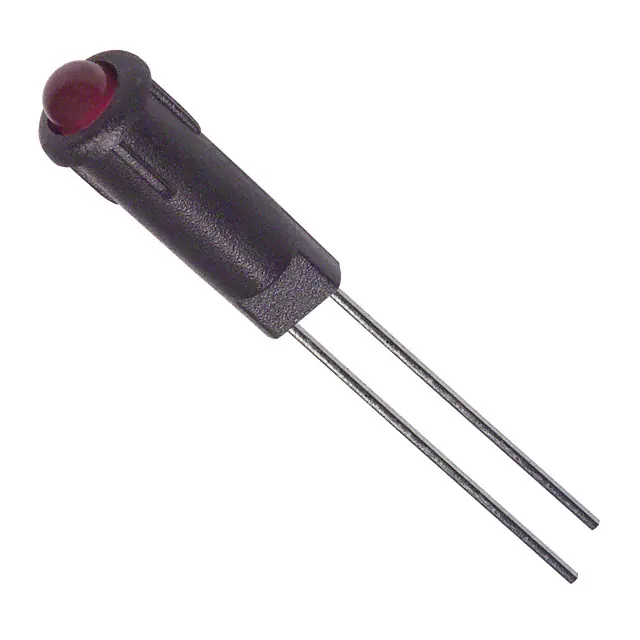

SSI-LXH312IDLED 3MM HI-INT RED DIFF PANEL MT Lumex Opto/Components Inc. |
4,999 | 0.00 |
|
- |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.17" (4.32mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | PC Pin | - | - |
|
|
SSI-LXH312ID-300LED T-3MM 635NM RED DIFF Lumex Opto/Components Inc. |
4,973 | 0.47 |
|
Datasheet |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.17" (4.42mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | Wire Leads - 12" (304.80mm) | - | - |
|

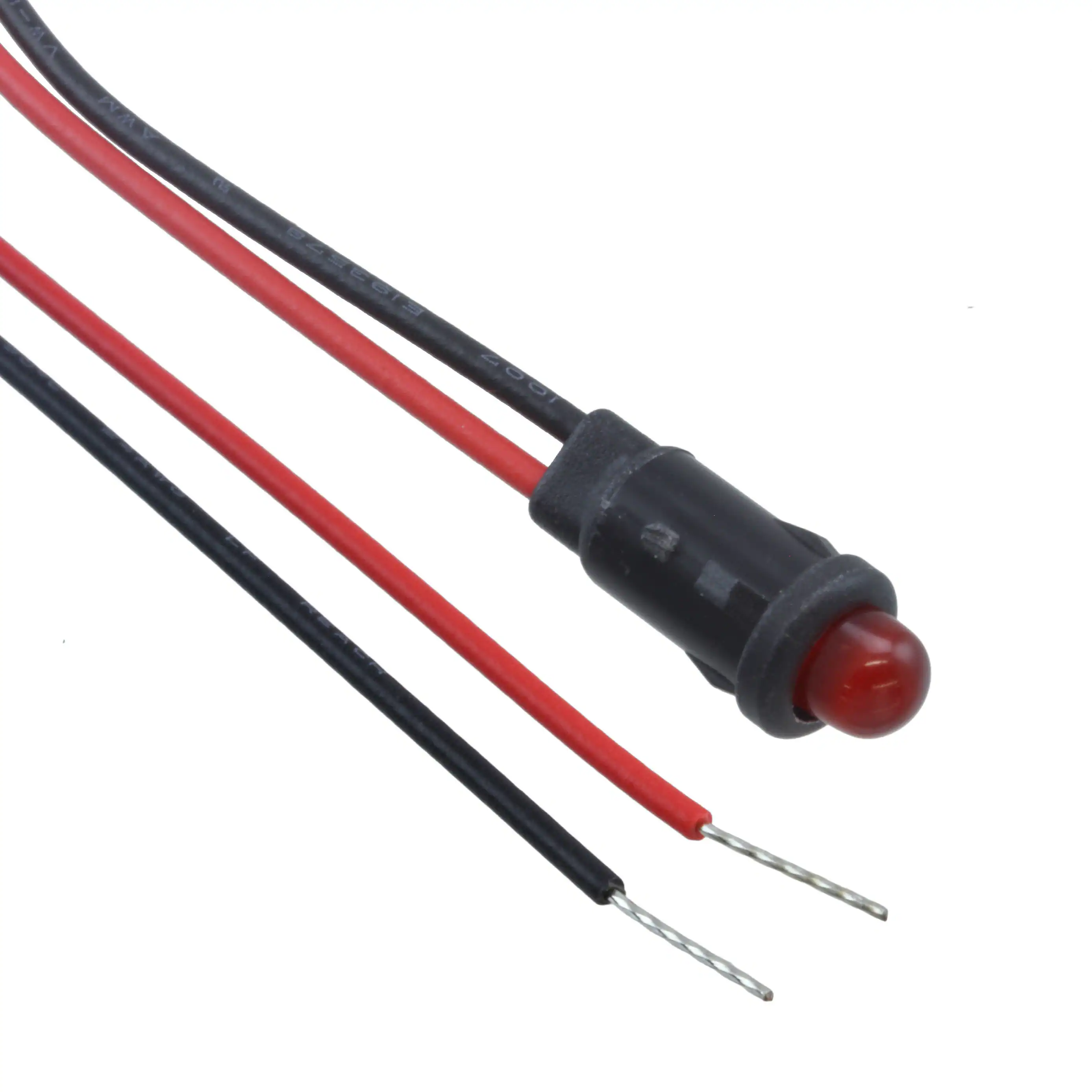

SSI-LXH600SID-150LED T-5 1/4"12V 636NM RED 6" LD Lumex Opto/Components Inc. |
6,658 | 0.63 |
|
Datasheet |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.25" (6.35mm) | 3mm, T-1 | Round with Domed Top | 100mcd | 636nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
