Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

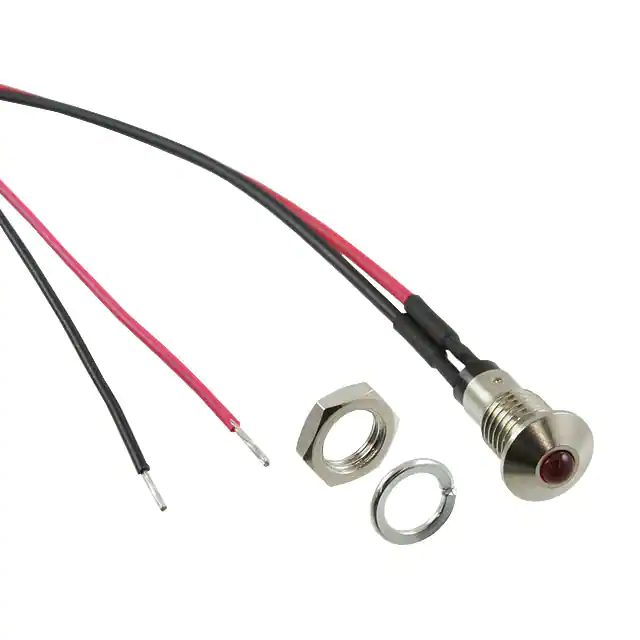

MPC3RDW12.0LED PANEL INDICATOR RED 2.1V Bivar Inc. |
408 | 4.36 |
|
Datasheet |
MPC3 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | Wire Leads - 12" (304.80mm) | - | - |
|

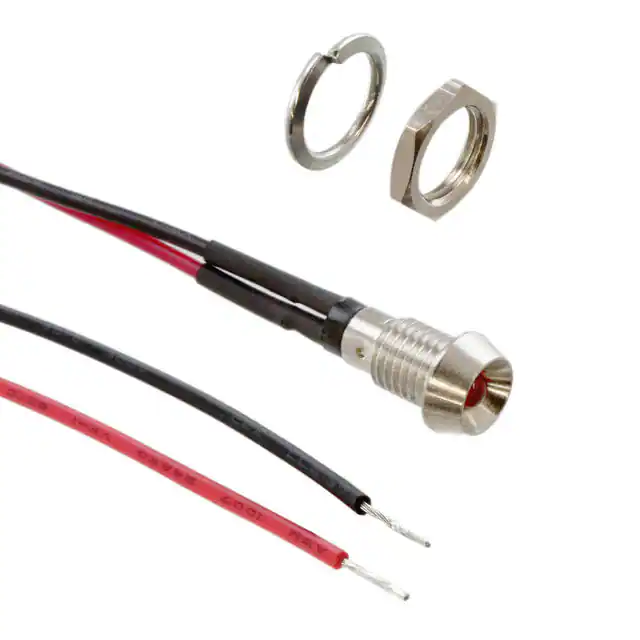

MPR3RDW12.0LED PANEL INDICATOR RED 2.1V Bivar Inc. |
189 | 4.36 |
|
Datasheet |
MPR3 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | Wire Leads - 12" (304.80mm) | - | - |
|

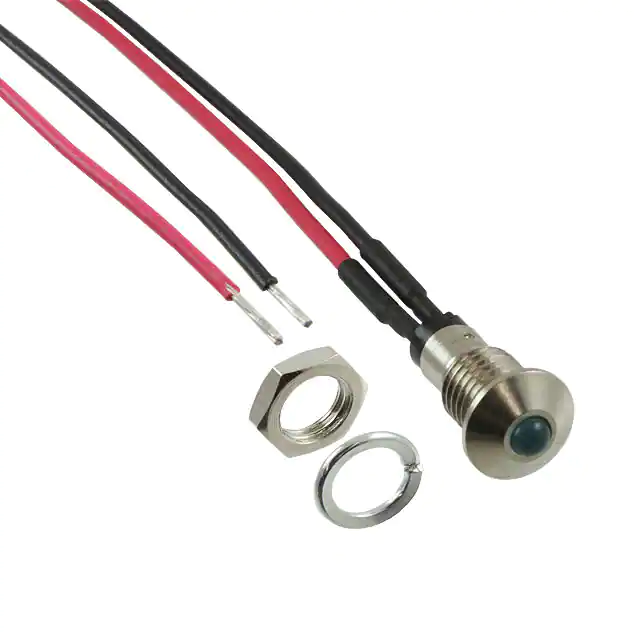

MPC3GDW12.0LED PANEL INDICATOR GREEN 2.1V Bivar Inc. |
1,642 | 4.39 |
|
Datasheet |
MPC3 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | Wire Leads - 12" (304.80mm) | - | - |
|

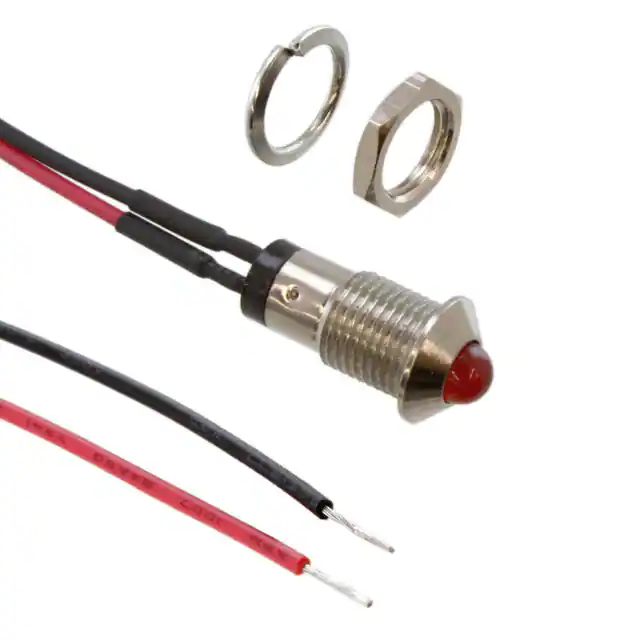

MPC5RDW12.0LED PANEL INDICATOR RED 2.1V Bivar Inc. |
671 | 4.45 |
|
Datasheet |
MPC5 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | Wire Leads - 12" (304.80mm) | - | - |
|
MPC5HDW12.0LED PANEL INDICATOR RED 2V Bivar Inc. |
576 | 4.49 |
|
Datasheet |
MPC5 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 625nm | 45° | Wire Leads - 12" (304.80mm) | - | - |
|

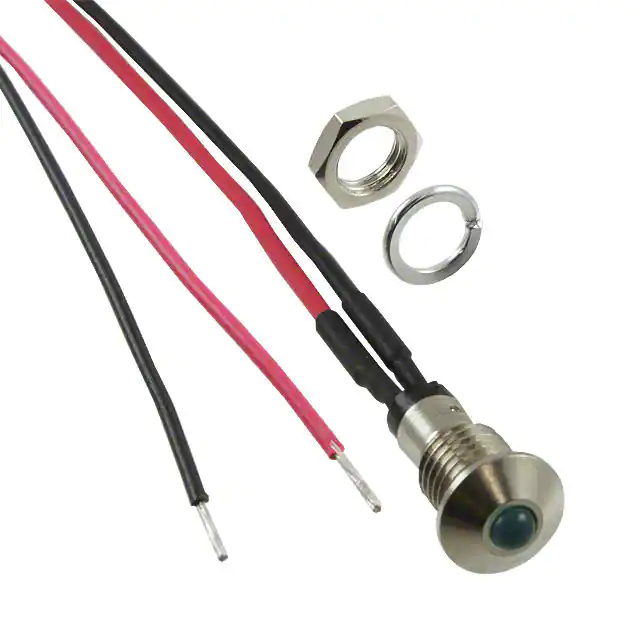

MPC3BWDW12.0PNL MNT BLUE W/WIRE 12" Bivar Inc. |
1,824 | 6.32 |
|
Datasheet |
MPC3 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 35° | Wire Leads - 12" (304.80mm) | - | - |
|

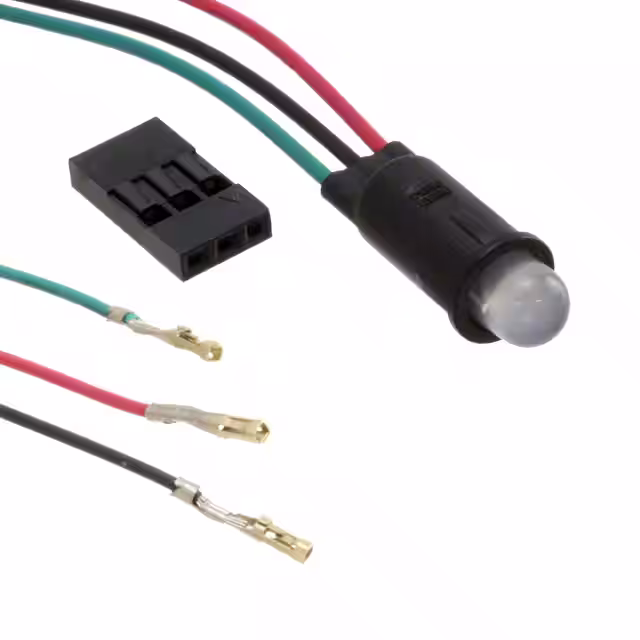

PM53-BCW12.0CCINDICATOR LED GREEN/RED PNL MNT Bivar Inc. |
202 | 4.91 |
|
Datasheet |
PM53 | Bag | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12" (304.80mm) | - | - |
|

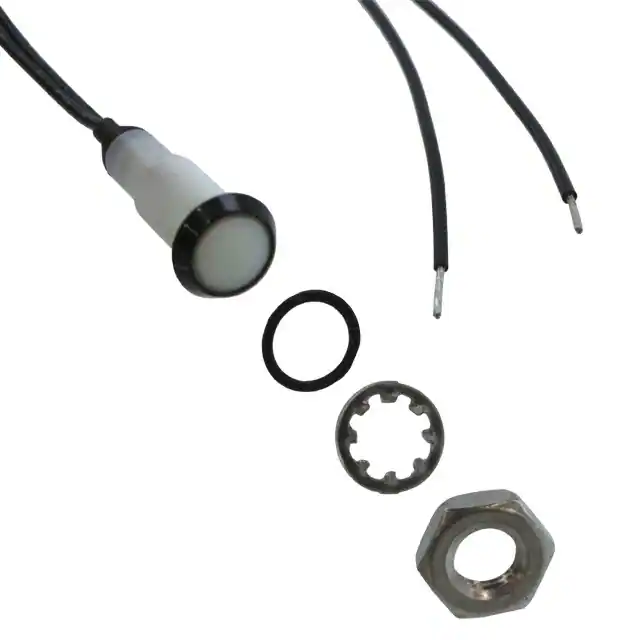

PM3-PGDW12.0PNL MNT GREEN 20MA W/WIRE: 12" Bivar Inc. |
355 | 17.21 |
|
Datasheet |
PM3 | Bag | Active | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
PM3-PPGDW12.0PNL MNT GREEN 20MA W/WIRE: 12" Bivar Inc. |
186 | 17.41 |
|
Datasheet |
PM3 | Bag | Active | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|

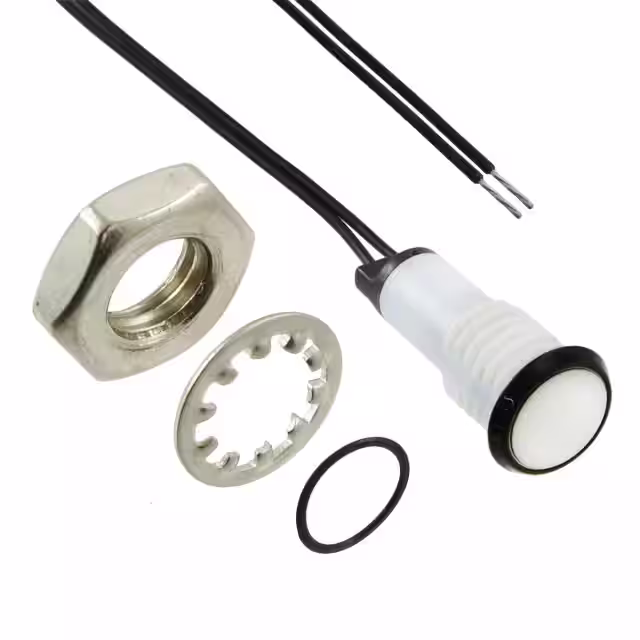

PM5-PRDW12.0PNL MNT W/ WIRE 645NM 40MCD RED Bivar Inc. |
144 | 18.74 |
|
Datasheet |
PM5 | Bag | Active | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
