Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

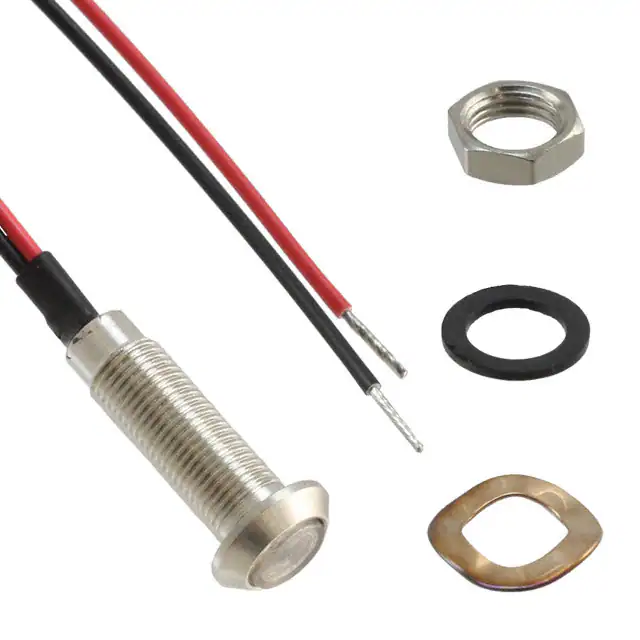

PM5-B5B28VPANEL MOUNT ASSEMBLY BLUE, 5MM Bivar Inc. |
3,189 | 28.15 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Blue | Blue | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 128mcd | 470nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

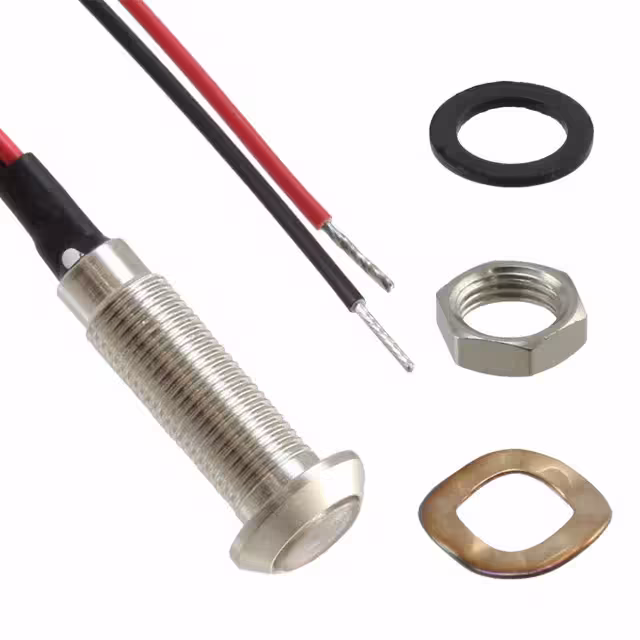

PM5-B5W28VPANEL MOUNT ASSEMBLY WHITE, 5MM Bivar Inc. |
2,857 | 28.15 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | White | White | Fresnel | AC/DC | 24V ~ 28V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 414mcd | - | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

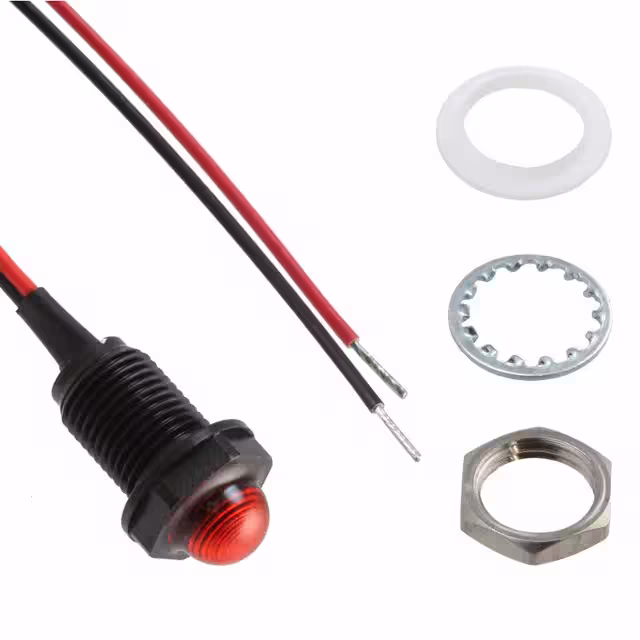

PM5-AP7R2.0VPANEL MOUNT ASSEMBLY RED, 8.5MM Bivar Inc. |
3,720 | 42.25 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.34" (8.64mm) | 7.00mm Dia | Round with Domed Top | 600mcd | 630nm | 160° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

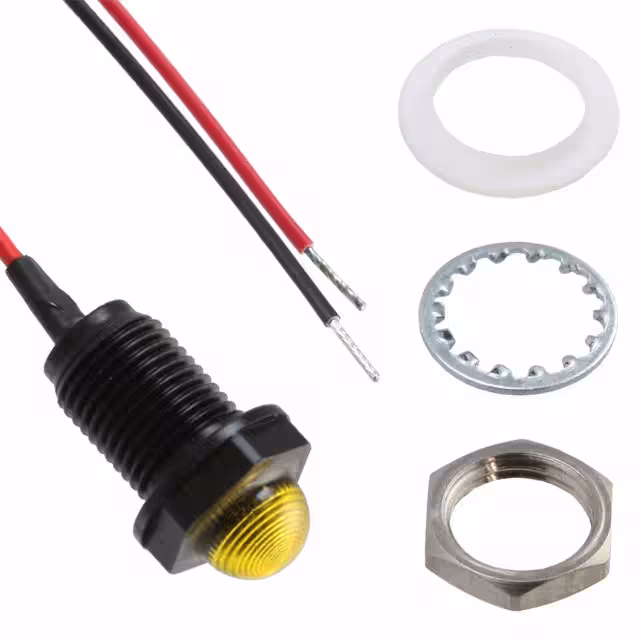

PM5-AP7Y2.0VPANEL MOUNT ASSEM YELLOW, 8.5MM Bivar Inc. |
1,027 | 42.25 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.34" (8.64mm) | 7.00mm Dia | Round with Domed Top | 600mcd | 585nm | 160° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

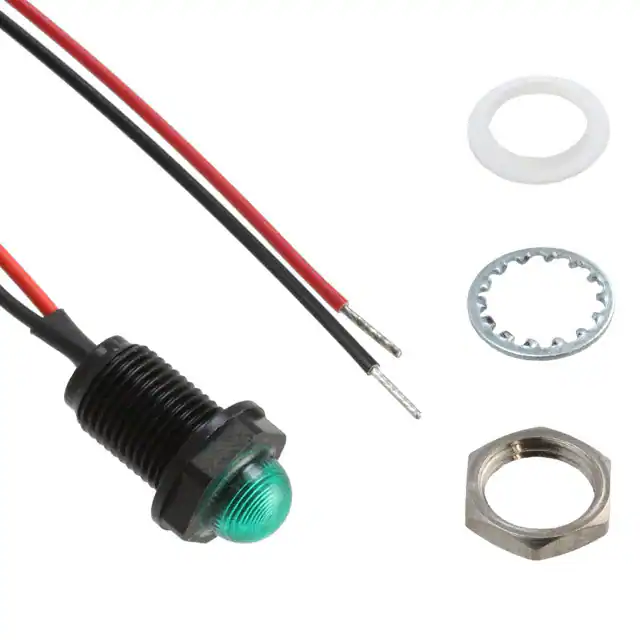

PM5-AP7G3.4VPANEL MOUNT ASSEM GREEN, 8.5MM Bivar Inc. |
4,975 | 56.93 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 3.4V | 20mA | Round | 0.34" (8.64mm) | 7.00mm Dia | Round with Domed Top | 800mcd | 515nm | 160° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

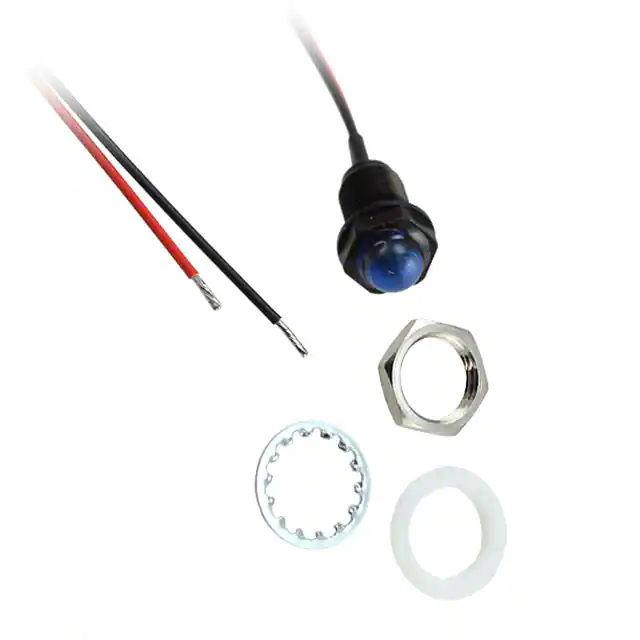

PM5-AP7B3.4VPANEL MOUNT ASSEMBLY BLUE, 8.5MM Bivar Inc. |
4,795 | 42.25 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.4V | 20mA | Round | 0.34" (8.64mm) | 7.00mm Dia | Round with Domed Top | 400mcd | 465nm | 160° | Wire Leads - 5.9" (150.00mm) | IP67 | - |
|

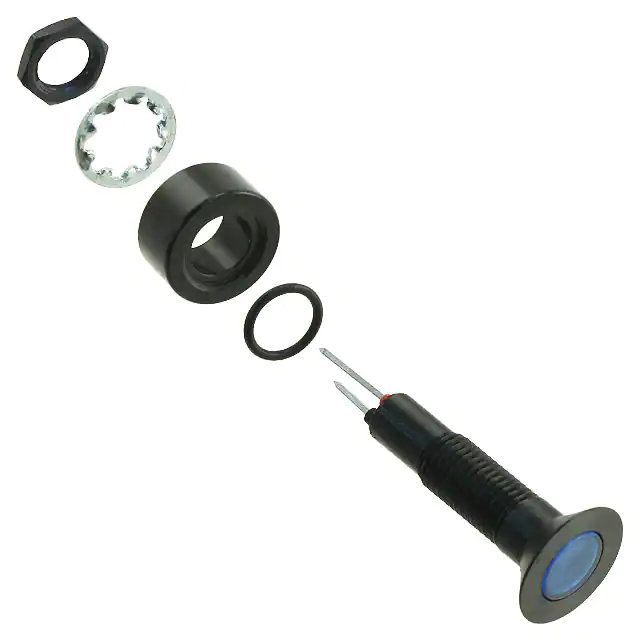

PM5-A12B12VPANEL MOUNT ASSEM BLUE, 6.1MM Bivar Inc. |
4,050 | 40.87 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Blue | Blue | Fresnel | DC | 12V | 20mA | Round | 0.24" (6.10mm) | 6.70mm Dia | Round with Flat Top | 128mcd | 470nm | 120° | PC Pin | IP67 | - |
|
PM5-A20G24VPANEL MOUNT ASSEM 25.4MM GREEN Bivar Inc. |
4,866 | 114.05 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 1" (25.40mm) | 20.00mm Dia | Round with Domed Top | 110mcd | 565nm | 160° | - | IP67 | - |
|
PM5-A20B24VPANEL MOUNT ASSEM 25.4MM BLUE Bivar Inc. |
3,182 | 114.05 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 1" (25.40mm) | 20.00mm Dia | Round with Domed Top | 300mcd | 470nm | 160° | - | IP67 | - |
|
PM5-A20R110VPANEL MOUNT ASSEM 25.4MM RED Bivar Inc. |
4,311 | 114.05 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Red | Red | Diffused | AC/DC | 110V | 20mA | Round | 1" (25.40mm) | 20.00mm Dia | Round with Domed Top | 250mcd | 660nm | 160° | - | IP67 | - |
