Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

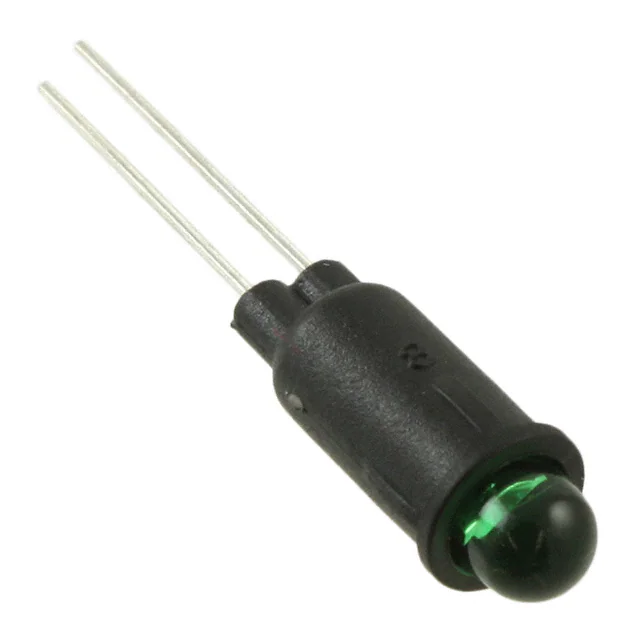

PM5GTPNL MNT W/ WIRE 568NM 40MCD GRN Bivar Inc. |
1,845 | 0.00 |
|
Datasheet |
PM5 | Tray | Obsolete | LED | Green | Green | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 568nm | 35° | - | - | - |
|

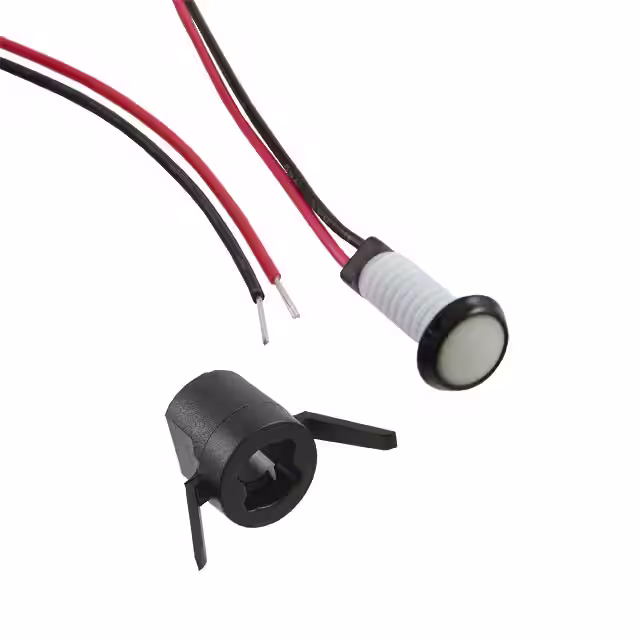

PM3-KBWDW12.0PNL MNT BLUE 20MA W/WIRE: 12" Bivar Inc. |
3,004 | 0.00 |
|
- |
PM3 | Bag | Obsolete | LED | Blue | White | Diffused | Vf (Typ), If (Max) | 4V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 200mcd | 470nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|

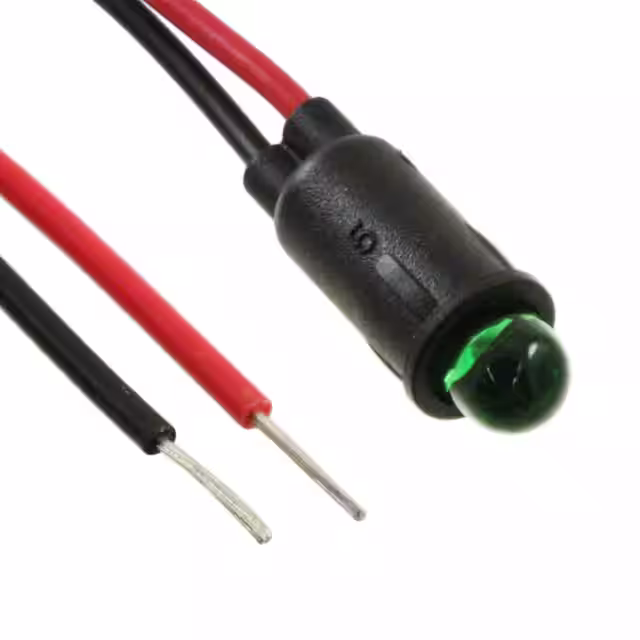

PM5GTW12.0PNL MNT GREEN 20MA W/WIRE 12" Bivar Inc. |
4,483 | 0.00 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Green | Green | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 568nm | 35° | Wire Leads - 12" (304.80mm) | - | - |
|

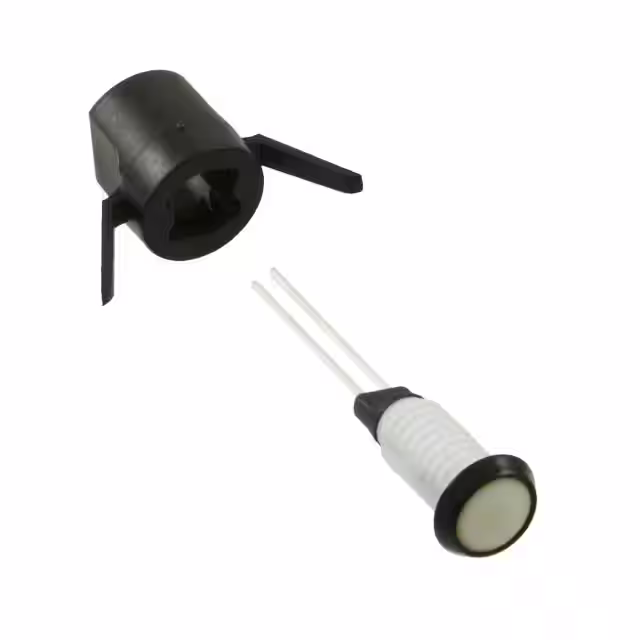

PM3-KGDPNL MNT 568NM 30MCD 2.1V GREEN Bivar Inc. |
4,402 | 0.00 |
|
- |
PM3 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | - | - | - |
|
PM5-KADPNL MNT 605NM 25MCD 2V AMBER Bivar Inc. |
3,565 | 0.00 |
|
- |
PM5 | Bag | Obsolete | LED | Amber | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 605nm | 120° | - | - | - |
|

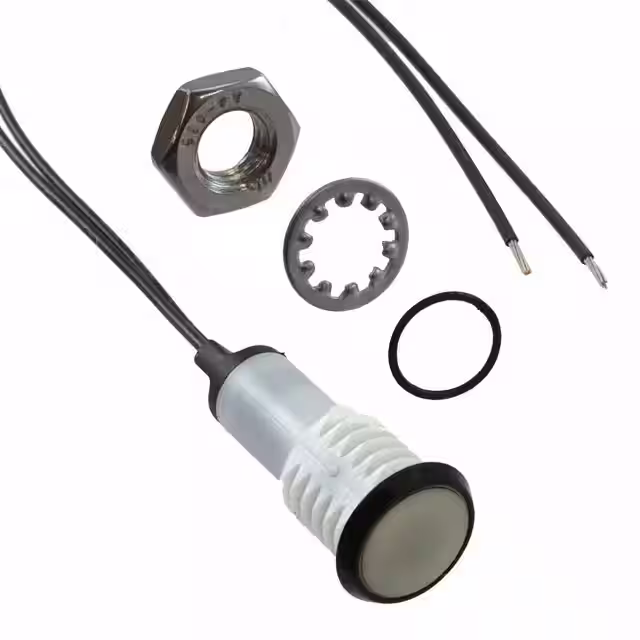

PM5-PGDW12.0PNL MNT W/ WIRE 568NM 25MCD GRN Bivar Inc. |
3,618 | 0.00 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|

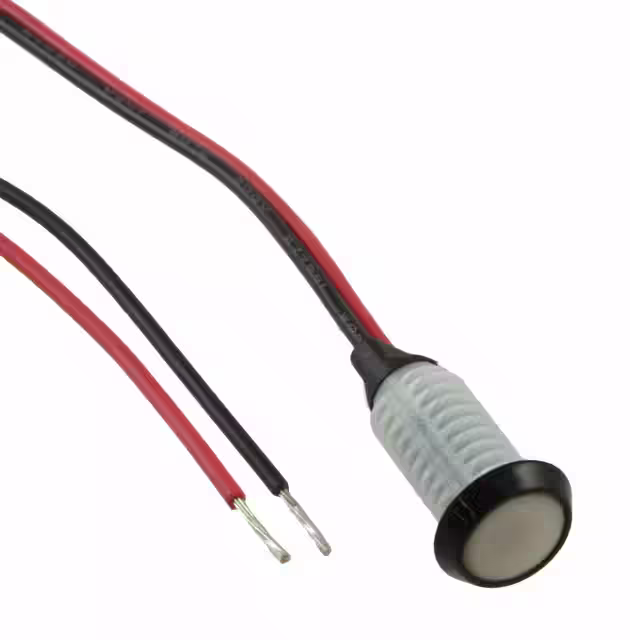

PM3-KHDW12.0PNL MNT RED 20MA W/WIRE: 12" Bivar Inc. |
2,395 | 0.00 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|

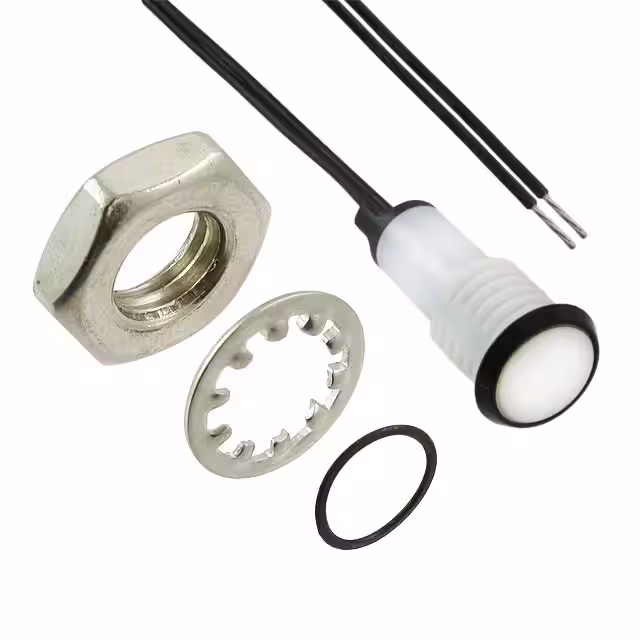

PM5-PPGDW12.0PNL MNT W/ WIRE 555NM 10MCD GRN Bivar Inc. |
4,120 | 0.00 |
|
Datasheet |
PM5 | Bag | Obsolete | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 10mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
PM3-KRDPNL MNT 645NM 40MCD 1.7V RED Bivar Inc. |
4,418 | 0.00 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.7V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | - | - | - |
|
PM5-KADW12.0PNL MNT AMBER W/WIRE: 12" Bivar Inc. |
4,730 | 0.00 |
|
- |
PM5 | Bag | Obsolete | LED | Amber | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 605nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
