Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

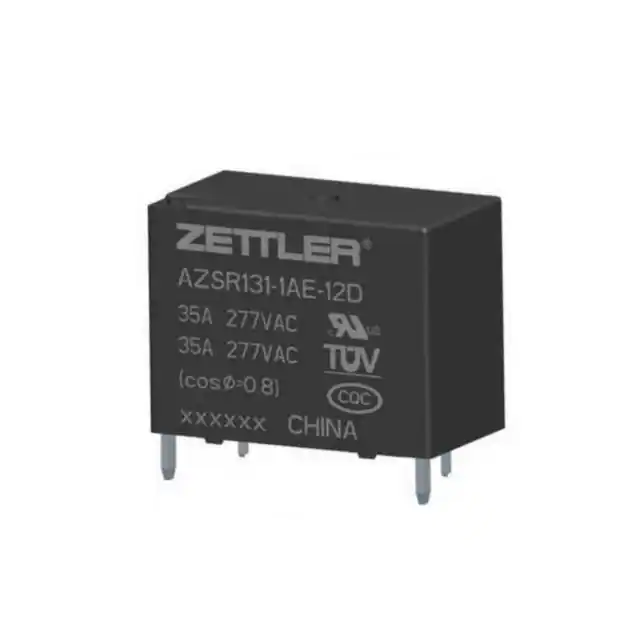

AZSR131-1AE-12DRELAY EV CHG SOLAR SPST 35A 12V American Zettler |
4,540 | 2.84 |
|
Datasheet |
AZSR131 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 9695VA | 116.5 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
AZ2150-1C-24DERELAY GEN PURPOSE SPDT 40A 24V American Zettler |
1,579 | 0.00 |
|
Datasheet |
AZ2150 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2280-1C-12DEFRELAY GEN PURPOSE SPDT 20A 12V American Zettler |
909 | 0.00 |
|
Datasheet |
AZ2280 | Box | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 77.4 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2280-1A-24AFRELAY GEN PURPOSE SPST 40A 24V American Zettler |
1,875 | 0.00 |
|
Datasheet |
AZ2280 | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 11080VA, 840W | 240 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 20.4 VAC | 4.8 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
AZ2280-1A-24AEFRELAY GEN PURPOSE SPST 40A 24V American Zettler |
1,135 | 3.22 |
|
Datasheet |
AZ2280 | Tray | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 11080VA, 840W | 240 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 20.4 VAC | 4.8 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ743-2CB-115AEFRELAY GEN PURPOSE DPDT 10A 115V American Zettler |
827 | 0.00 |
|
Datasheet |
AZ743 | Box | Active | Through Hole | 115VAC | DPDT (2 Form C) | 10 A | 400VAC, 150VDC - Max | 2770VA, 240W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.25 VAC | 7 ms | 4 ms | -40°C ~ 100°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2280-1C-24DEFRELAY GEN PURPOSE SPDT 20A 24V American Zettler |
547 | 3.22 |
|
Datasheet |
AZ2280 | Tray | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 36 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

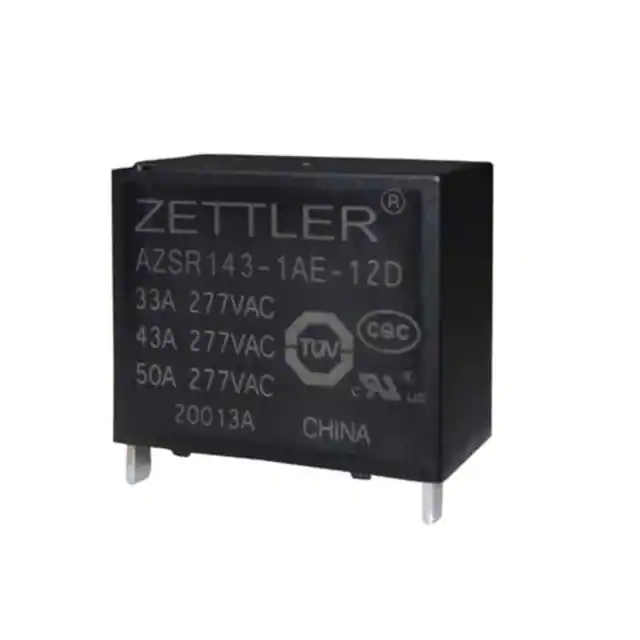

AZSR143-1AE-12DRELAY EV CHG SOLAR SPST 50A 12V American Zettler |
620 | 3.76 |
|
Datasheet |
AZSR143 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 19200VA | 133.3 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
|
AZSR143-1AE-24DRELAY EV CHG SOLAR SPST 50A 24V American Zettler |
2,667 | 3.85 |
|
Datasheet |
AZSR143 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 19200VA | 66.7 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
|
AZ2280-1C-24AFRELAY GEN PURPOSE SPDT 20A 24V American Zettler |
1,381 | 0.00 |
|
Datasheet |
AZ2280 | Box | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 240 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 20.4 VAC | 4.8 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
