Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

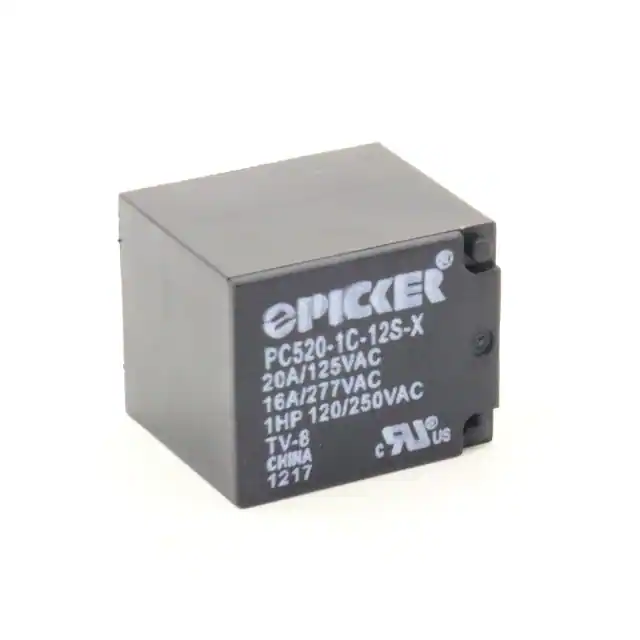

PC520-1C-12S-XRELAY GEN PURPOSE SPDT 20A 12V Picker Components |
2,751 | 1.50 |
|
Datasheet |
PC520 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 250VAC - Max | 5000VA | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

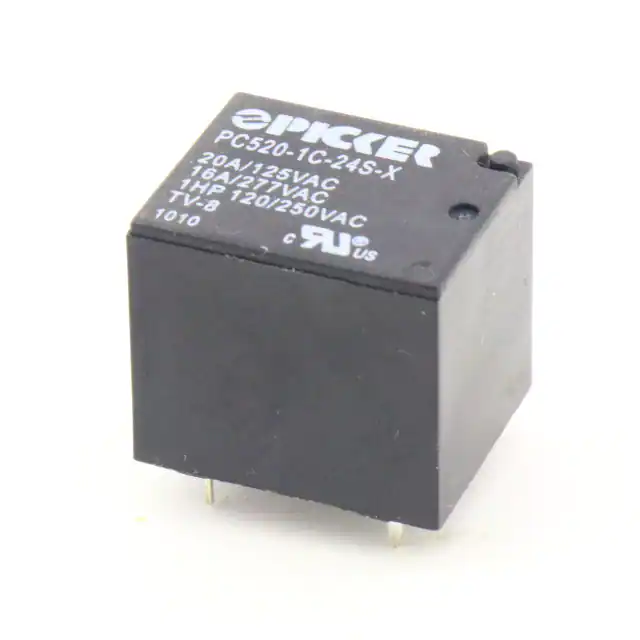

PC520-1C-24S-XRELAY GEN PURPOSE SPDT 20A 24V Picker Components |
4,806 | 1.62 |
|
Datasheet |
PC520 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 250VAC - Max | 5000VA | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

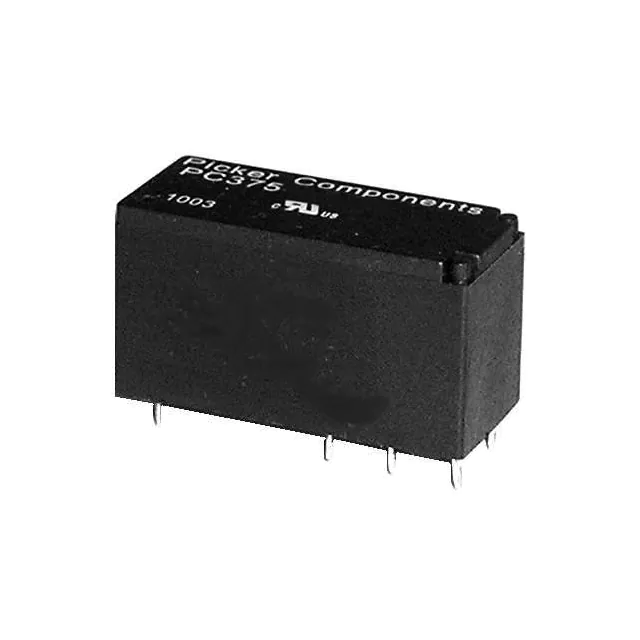

PC375-2C-24S4-XRELAY GEN PURPOSE DPDT 16A 24V Picker Components |
962 | 2.74 |
|
Datasheet |
PC375 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PTRA-1C-120S-T5-XRELAY GEN PURPOSE SPDT 40A 120V Picker Components |
2,863 | 4.41 |
|
Datasheet |
PTRA | Tube | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 16.6 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

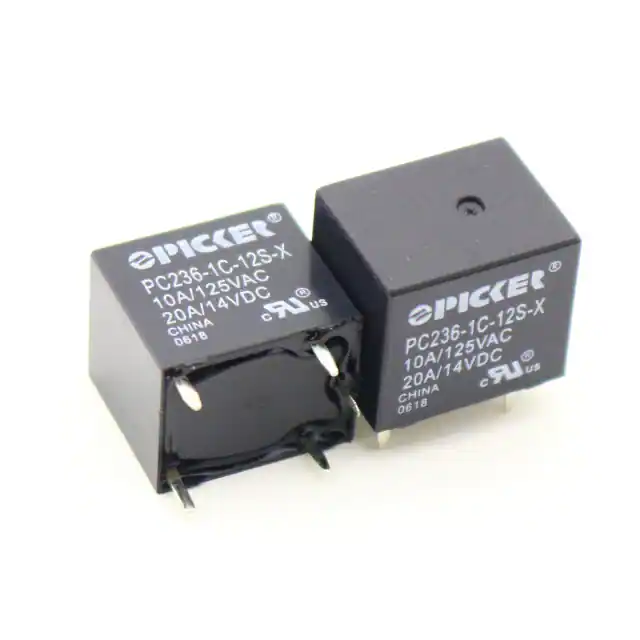

PC236-1C-12S-XRELAY GEN PURPOSE SPDT 20A 12V Picker Components |
2,660 | 1.09 |
|
Datasheet |
PC236 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC, 48VDC - Max | 5540VA, 960W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9.6 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC323-12L-XRELAY TELECOM DPDT 2A 12V Picker Components |
2,533 | 1.28 |
|
Datasheet |
PC323 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 48VDC - Max | 750VA, 144W | 12.5 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|

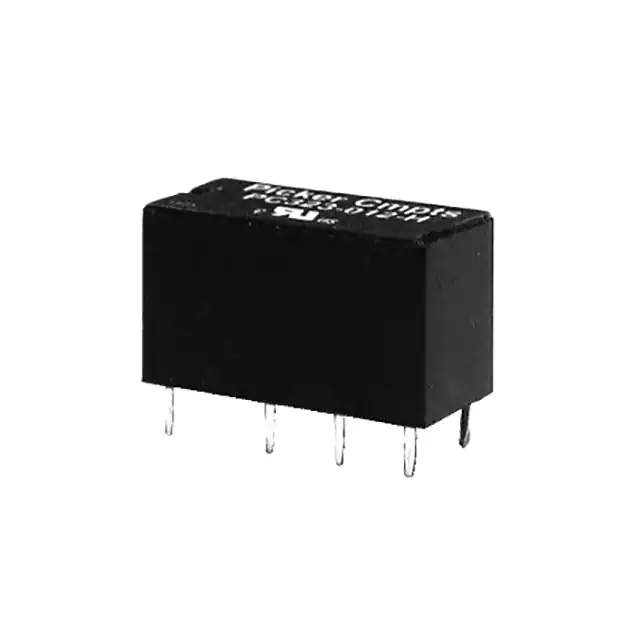

PC323-24H-XRELAY TELECOM DPDT 2A 24V Picker Components |
2,818 | 1.45 |
|
Datasheet |
PC323 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 48VDC - Max | 750VA, 144W | 8.3 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
.jpg)
|

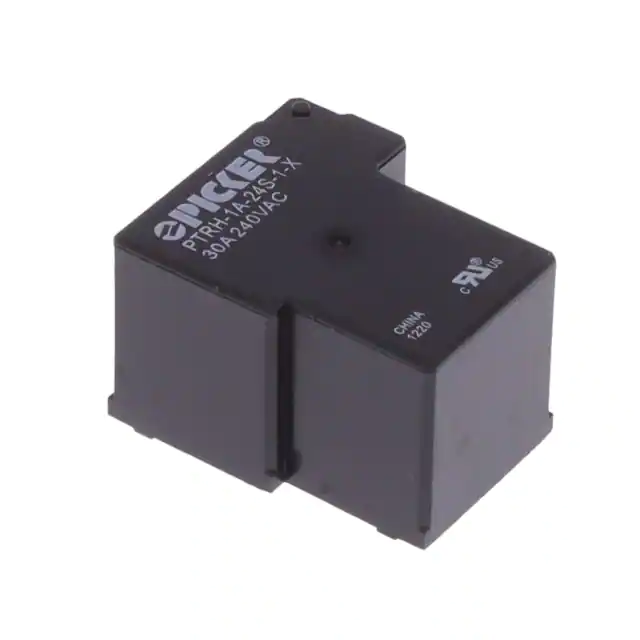

PTRH-1A-24S-1-XRELAY GEN PURPOSE SPST 30A 24V Picker Components |
480 | 2.08 |
|
Datasheet |
PTRH | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

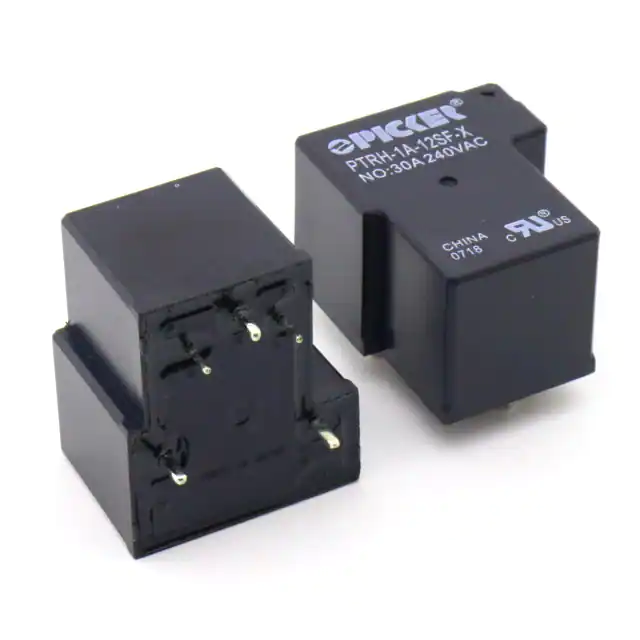

PTRH-1A-12SF-XRELAY GEN PURPOSE SPST 30A 12V Picker Components |
1,256 | 1.99 |
|
Datasheet |
PTRH | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

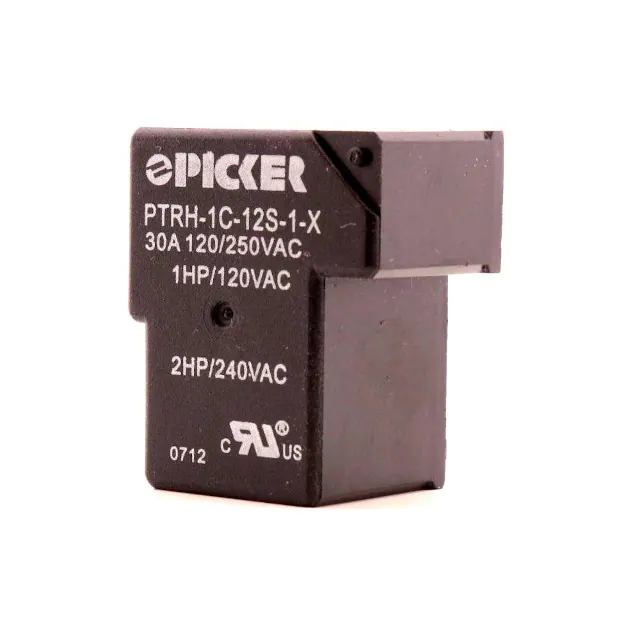

PTRH-1C-12S-1-XRELAY GEN PURPOSE SPDT 30A 12V Picker Components |
830 | 2.11 |
|
Datasheet |
PTRH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
