Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K41C334RELAY GEN PURPOSE SPDT 30A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,739 | 384.21 |
|
Datasheet |
K41, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 91.4 mA | Non Latching | - | Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | General Purpose | - | - |
|
K81C245RELAY GEN PURPOSE SPDT 5A 12V TE Connectivity Aerospace, Defense and Marine |
2,882 | 407.19 |
|
Datasheet |
K81C, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | 171.4 mA | Non Latching | - | PC Pin, Wire Leads | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
HC-3RELAY GEN PURPOSE SPDT 18A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,867 | 537.69 |
|
Datasheet |
HC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 79.1 mA | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | General Purpose | - | - |
|
HC-3/12VDCRELAY GEN PURPOSE SPDT 18A 12V TE Connectivity Aerospace, Defense and Marine |
128 | 563.30 |
|
Datasheet |
HC, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 150 mA | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | General Purpose | - | - |
|

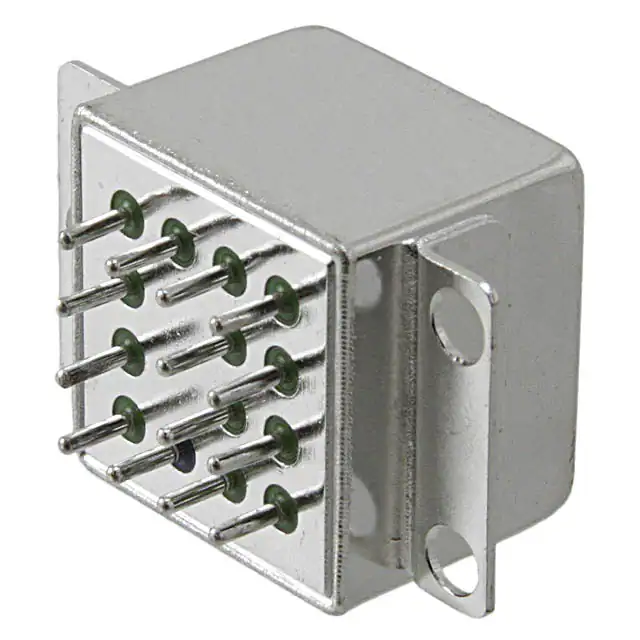

FCB-405-0620MRELAY GEN PURPOSE 4PDT 5A 28V TE Connectivity Aerospace, Defense and Marine |
4,835 | 218.27 |
|
Datasheet |
FCB-405, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 70 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - | General Purpose | Military | MIL-R-83536/6 |
|
FCB-205-0224LFCB-205-0224L=M83536/2-024L TE Connectivity Aerospace, Defense and Marine |
3,562 | 183.22 |
|
Datasheet |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

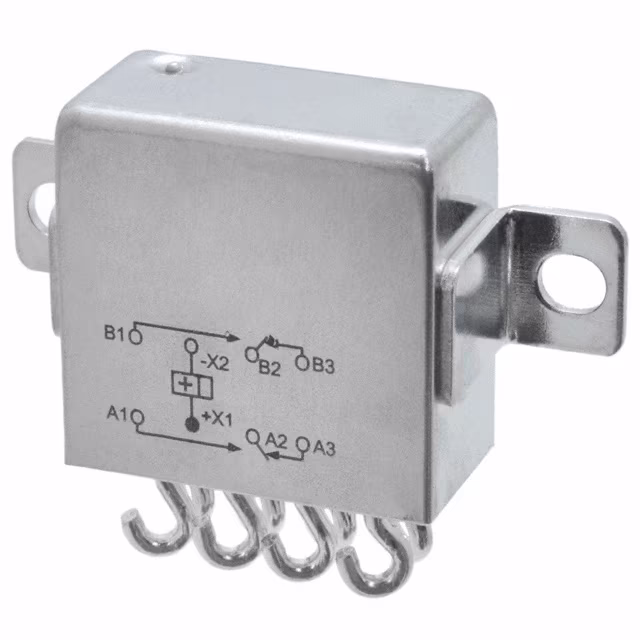

FCA-210-0926MRELAY GEN PURPOSE DPDT 10A 28V TE Connectivity Aerospace, Defense and Marine |
1,690 | 191.73 |
|
Datasheet |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-83536/9 |
|

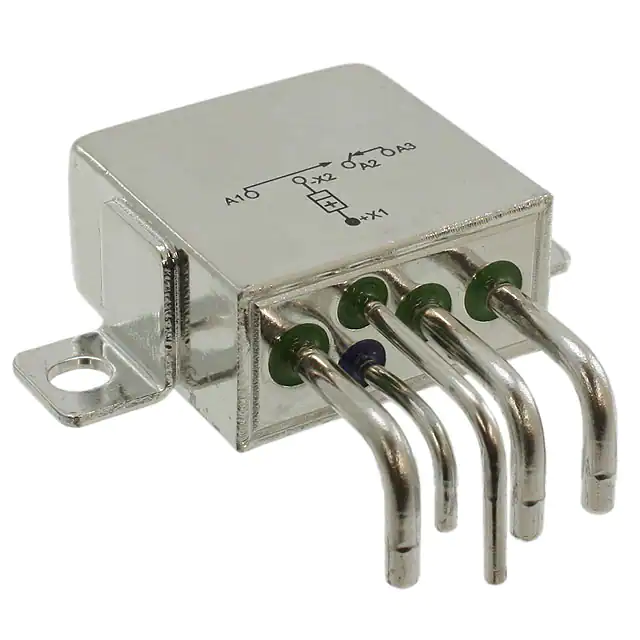

FCA-125-HX3RELAY GEN PURPOSE SPDT 25A 28V TE Connectivity Aerospace, Defense and Marine |
2,207 | 214.70 |
|
Datasheet |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

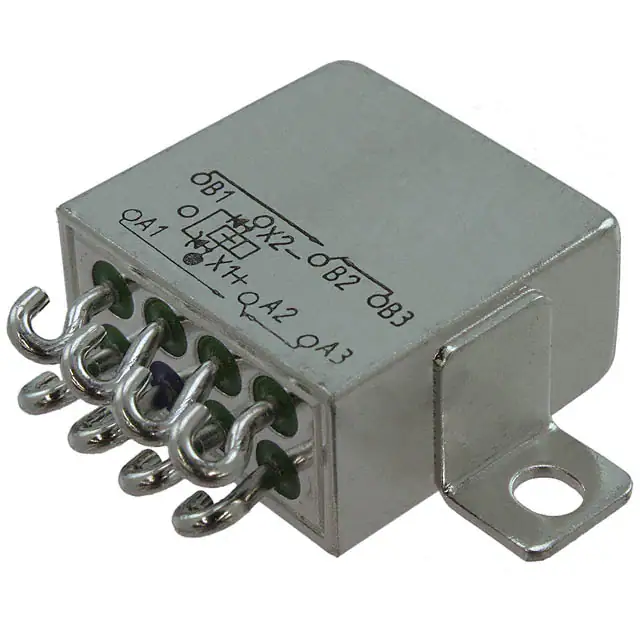

FCA-210-1026MRELAY GEN PURPOSE DPDT 10A 28V TE Connectivity Aerospace, Defense and Marine |
2,423 | 206.87 |
|
Datasheet |
FCA-210, CII | Tray | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
FCA-210-0923MRELAY GEN PURPOSE DPDT 10A 28V TE Connectivity Aerospace, Defense and Marine |
4,181 | 191.73 |
|
Datasheet |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-83536/9 |
