Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALF1T06RELAY GEN PURPOSE SPST 20A 6V Panasonic Electric Works |
3,003 | 3.51 |
|
Datasheet |
ALF | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 150 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 4.2 VDC | 0.6 VDC | 20 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JTN1AS-PA-F-DC12VRELAY GEN PURPOSE SPST 30A 12V Panasonic Electric Works |
2,896 | 0.00 |
|
Datasheet |
JT-N | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALZ51F18RELAY GEN PURPOSE SPST 16A 18V Panasonic Electric Works |
2,738 | 3.52 |
|
Datasheet |
ALZ | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALZ12F24TRELAYS Panasonic Electric Works |
4,967 | 2.15 |
|
Datasheet |
ALZ | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

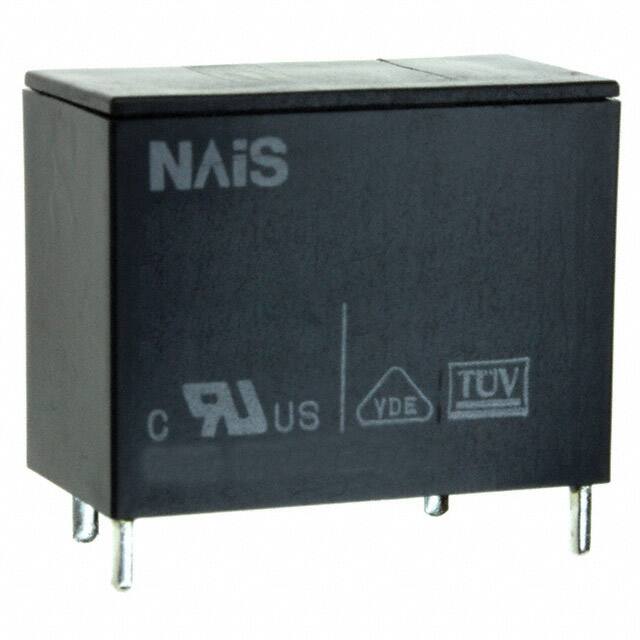

ALF1P18RELAY GEN PURPOSE SPST 20A 18V Panasonic Electric Works |
1,207 | 3.55 |
|
Datasheet |
ALF | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 50 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 1.8 VDC | 20 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JW2HN-DC12VRELAY GEN PURPOSE DPDT 5A 12V Panasonic Electric Works |
2,625 | 3.58 |
|
Datasheet |
JW | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
TS2SA-LT-6V-TH-ZTX SIGNAL RELAY Panasonic Electric Works |
2,733 | 3.58 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALZ51F48TWRELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works |
2,502 | 3.42 |
|
Datasheet |
ALZ | Box | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
TX2-4.5V-THRELAY GEN PURPOSE DPDT 7.5A 4.5V Panasonic Electric Works |
1,566 | 3.59 |
|
Datasheet |
TX-TH | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 220VDC - Max | 1875VA, 1650W | 31 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
ALF1T09RELAY GEN PURPOSE SPST 20A 9V Panasonic Electric Works |
4,979 | 3.65 |
|
Datasheet |
ALF | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 100 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 6.3 VDC | 0.9 VDC | 20 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
