Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALZ22F48WRELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works |
1,205 | 0.00 |
|
Datasheet |
ALZ | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

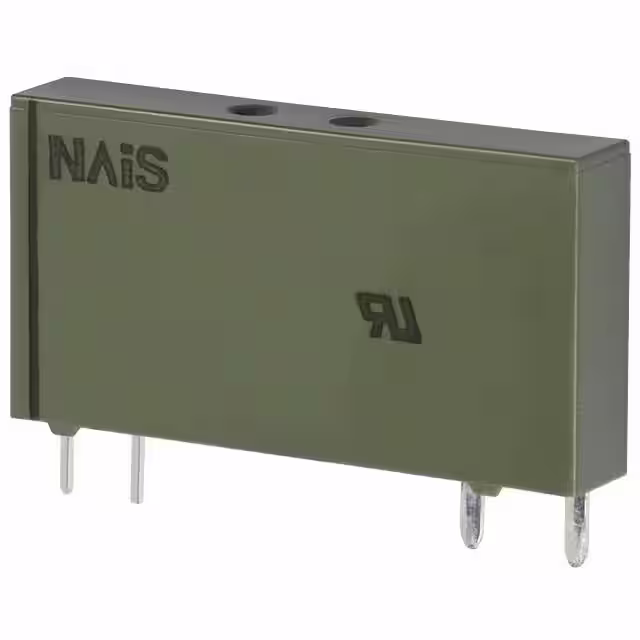

APE10006RELAY GEN PURPOSE SPST 6A 6V Panasonic Electric Works |
3,100 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 28 mA | Non Latching | - | PC Pin | - | - | 3.96 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10018RELAY GEN PURPOSE SPST 6A 18V Panasonic Electric Works |
2,883 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 9 mA | Non Latching | - | PC Pin | - | - | 11.88 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10024RELAY GEN PURPOSE SPST 6A 24V Panasonic Electric Works |
4,119 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | 15.84 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10106RELAY GEN PURPOSE SPST 6A 6V Panasonic Electric Works |
2,944 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 28 mA | Non Latching | - | PC Pin | - | - | 3.96 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10118RELAY GEN PURPOSE SPST 6A 18V Panasonic Electric Works |
1,365 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 9 mA | Non Latching | - | PC Pin | - | - | 11.88 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10124RELAY GEN PURPOSE SPST 6A 24V Panasonic Electric Works |
4,994 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | 15.84 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE10160RELAY GEN PURPOSE SPST 6A 60V Panasonic Electric Works |
3,875 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 2.9 mA | Non Latching | - | PC Pin | - | - | 39.6 VDC | 3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
APE30006RELAY GEN PURPOSE SPDT 6A 6V Panasonic Electric Works |
3,395 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 28 mA | Non Latching | - | PC Pin | - | - | 3.96 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
APE30018RELAY GEN PURPOSE SPDT 6A 18V Panasonic Electric Works |
4,351 | 0.00 |
|
Datasheet |
APE | Tube | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 9 mA | Non Latching | - | PC Pin | - | - | 11.88 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
