Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM1AN-P-DC12V-FRELAY GEN PURPOSE SPST 20A 12V Panasonic Electric Works |
3,698 | 0.00 |
|
Datasheet |
JM | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JM1AN-P-DC5V-FRELAY GEN PURPOSE SPST 20A 5V Panasonic Electric Works |
1,048 | 0.00 |
|
Datasheet |
JM | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 180 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1-F-18V-FRELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works |
1,146 | 0.00 |
|
Datasheet |
JS | Tray | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HP4-DC24V-FRELAY GEN PURPOSE 4PDT 10A 24V Panasonic Electric Works |
3,177 | 0.00 |
|
Datasheet |
HP | Tray | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Nom | - | 63 mA | Non Latching | - | Plug In, Quick Connect - 0.205" (5.2mm) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
HG2-DC12V-FRELAY GEN PURPOSE DPDT 20A 12V Panasonic Electric Works |
1,706 | 0.00 |
|
Datasheet |
HG | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

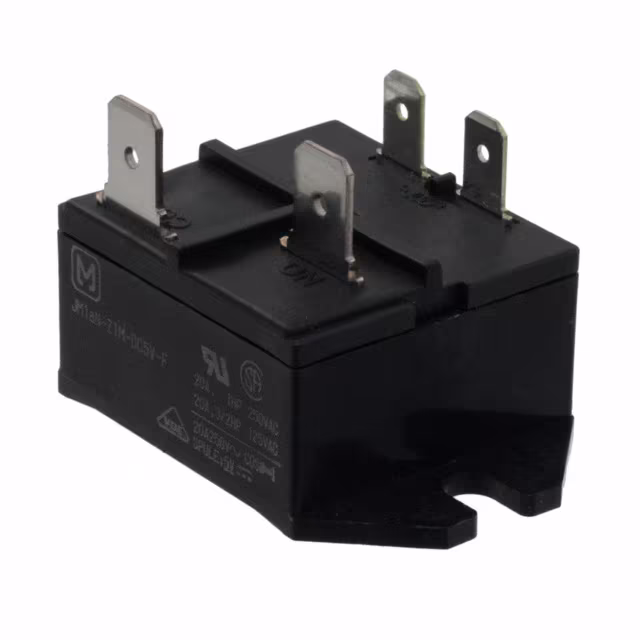

JM1AN-ZTM-DC5V-FRELAY GEN PURPOSE SPST 20A 5V Panasonic Electric Works |
2,001 | 0.00 |
|
Datasheet |
JM | Tube | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 180 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JM1AN-P-DC24V-FRELAY GEN PURPOSE SPST 20A 24V Panasonic Electric Works |
3,888 | 0.00 |
|
Datasheet |
JM | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JQ1AP-B-12V-FRELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works |
4,437 | 0.00 |
|
Datasheet |
JQ | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
HG2-AC24V-FRELAY GEN PURPOSE DPDT 20A 24V Panasonic Electric Works |
1,522 | 0.00 |
|
Datasheet |
HG | Tube | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
HG4-AC240V-FRELAY GEN PURPOSE 4PDT 20A 240V Panasonic Electric Works |
1,299 | 0.00 |
|
Datasheet |
HG | Tube | Obsolete | Socketable | 240VAC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | - | 31.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 72 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
