Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1-18V-FRELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works |
2,438 | 1.95 |
|
Datasheet |
JS | Bulk | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1AF-B-48V-FRELAY GEN PURPOSE SPST 10A 48V Panasonic Electric Works |
1,197 | 2.08 |
|
Datasheet |
JS | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1F-B-18V-FRELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works |
2,342 | 2.62 |
|
Datasheet |
JS | Bulk | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

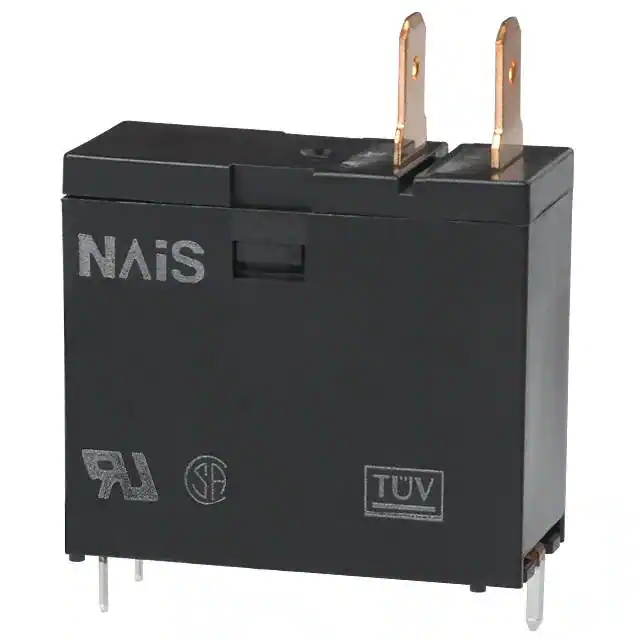

ALE13B18RELAY GEN PURPOSE SPST 16A 18V Panasonic Electric Works |
4,156 | 2.47 |
|
Datasheet |
ALE | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ALE12B09RELAY GEN PURPOSE SPST 16A 9V Panasonic Electric Works |
1,752 | 2.47 |
|
Datasheet |
ALE | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 44.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALZN1B05WRELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works |
2,930 | 3.12 |
|
Datasheet |
ALZN | Tray | Last Time Buy | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JQ1A-B-18V-FRELAY GEN PURPOSE SPST 5A 18V Panasonic Electric Works |
1,391 | 3.08 |
|
Datasheet |
JQ | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 11.1 mA | Non Latching | - | PC Pin | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKQ1AF-12V-TV8-Y2RELAY GEN PURPOSE SPST 8A 12V Panasonic Electric Works |
4,853 | 2.90 |
|
Datasheet |
LK-Q | Box | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-12V-TV-8RELAY GEN PURPOSE SPST 8A 12V Panasonic Electric Works |
1,594 | 2.88 |
|
Datasheet |
LK-Q | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ALZN1B09WRELAY GEN PURPOSE SPDT 16A 9V Panasonic Electric Works |
3,598 | 3.12 |
|
Datasheet |
ALZN | Tray | Last Time Buy | Through Hole | 9VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
