Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1511CT24VAC1.2DRELAY GEN PURPOSE SPDT 20A 24V CIT Relay and Switch |
397 | 6.55 |
|
Datasheet |
J151 | Tray | Active | Socketable | 24VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1512CF48VDC.9DRELAY GEN PURPOSE DPDT 20A 48V CIT Relay and Switch |
193 | 6.53 |
|
Datasheet |
J151 | Tray | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J116F11AW24VDCS1.5RELAY GEN PURPOSE SPST 50A 24V CIT Relay and Switch |
600 | 4.94 |
|
Datasheet |
J116F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1511CF120VAC1.2RELAY GEN PURPOSE SPDT 20A 120V CIT Relay and Switch |
395 | 6.75 |
|
Datasheet |
J151 | Tray | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

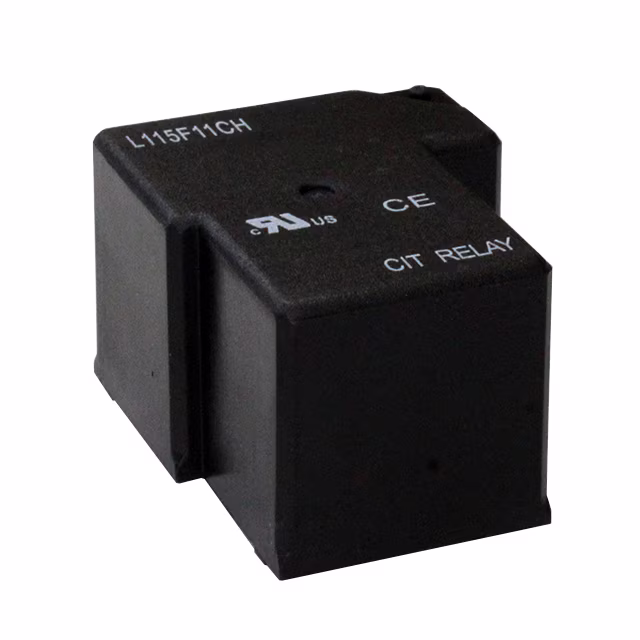

L115F11CH24VDCS1.5URELAY GEN PURPOSE SPDT 50A 24V CIT Relay and Switch |
298 | 7.64 |
|
Datasheet |
L115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
J1511CT12VDC.9DRELAY GEN PURPOSE SPDT 20A 12V CIT Relay and Switch |
237 | 6.06 |
|
Datasheet |
J151 | Tray | Active | Socketable | 12VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CT48VDC.9RELAY GEN PURPOSE SPDT 20A 48V CIT Relay and Switch |
246 | 6.33 |
|
Datasheet |
J151 | Tray | Active | Socketable | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CF48VDC.9RELAY GEN PURPOSE SPDT 20A 48V CIT Relay and Switch |
179 | 6.33 |
|
Datasheet |
J151 | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CT240VAC1.2RELAY GEN PURPOSE SPDT 20A 240V CIT Relay and Switch |
250 | 7.09 |
|
Datasheet |
J151 | Tray | Active | Socketable | 240VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CF48VDC.9DRELAY GEN PURPOSE SPDT 20A 48V CIT Relay and Switch |
120 | 6.53 |
|
Datasheet |
J151 | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
