Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5250SENSOR 29.01PSIG 0.12" 4.5V Panasonic Electronic Components |
4,712 | 52.02 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
|
ADP5210SENSOR 14.5PSIG 0.12" 4.5V Panasonic Electronic Components |
1,093 | 52.02 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | -14.5PSI (-100kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
ADP1141SENSOR 14.23PSIG 0.12" 0.1V Panasonic Electronic Components |
2,355 | 22.37 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 14.23PSI (98.1kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 28.46PSI (196.22kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP1171SENSOR 71.11PSIG 0.12" 0.1V Panasonic Electronic Components |
1,081 | 22.37 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|

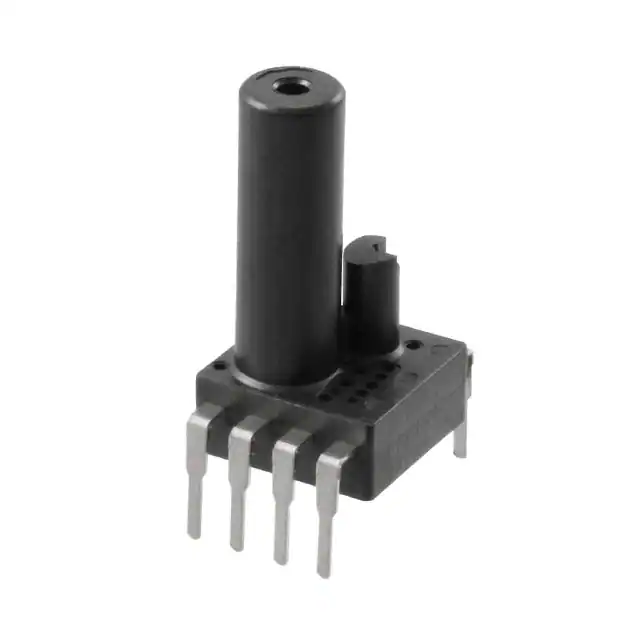

ADP51B63SENSOR 0.87PSIG 0.22" 4.5V Panasonic Electronic Components |
1,565 | 24.02 |
|
Datasheet |
PS-A | 8-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 3.5 V ~ 4.5 V | ±2.5% | 5V | Male - 0.22" (5.45mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 1.74PSI (12kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|

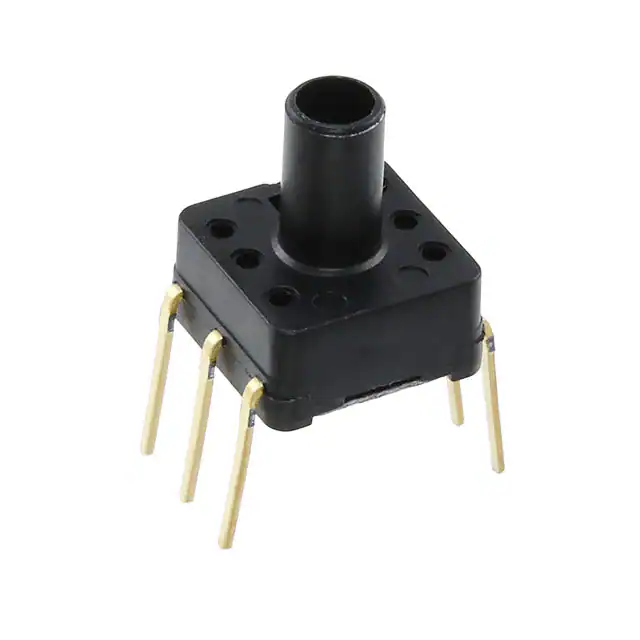

ADP5141SENSOR 14.5PSIG 0.12" 4.5V Panasonic Electronic Components |
1,933 | 47.39 |
|
Datasheet |
PS-A | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP51B61SENSOR 0.87PSIG 0.12" 5V Panasonic Electronic Components |
4,092 | 21.96 |
|
Datasheet |
PS-A | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0 V ~ 5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 1.74PSI (12kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
ADP42910SENSOR 142.24PSIG 0.1" .065V Panasonic Electronic Components |
100 | 22.16 |
|
Datasheet |
PS | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 142.24PSI (980.7kPa) | Wheatstone Bridge | 0 mV ~ 65 mV | ±1% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 213.36PSI (1471.05kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42710SENSOR 71.11PSIG 0.1" 0.1V Panasonic Electronic Components |
2,687 | 22.16 |
|
Datasheet |
PS | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP1271SENSOR 71.11PSIG 0.12" 0.1V Panasonic Electronic Components |
100 | 22.37 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
