PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRF0012FF1EPTC RESET FUSE 60V 120MA RADIAL Bel Fuse Inc. |
5,098 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|

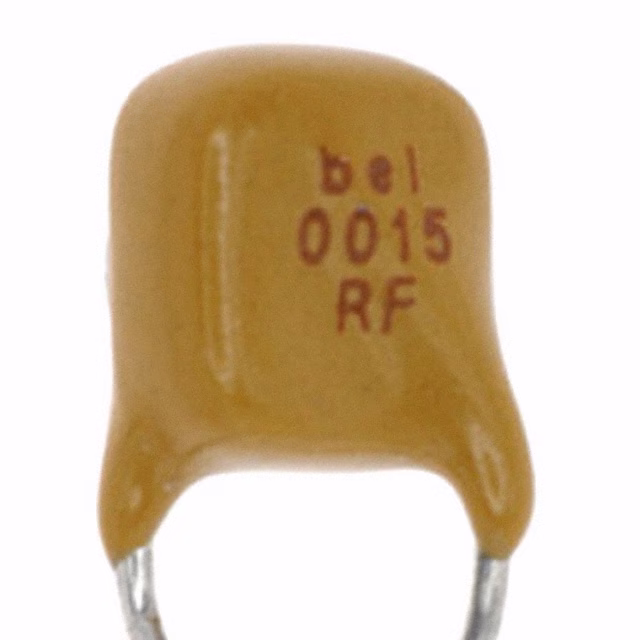

0ZRF0015FF1EPTC RESET FUSE 60V 150MA RADIAL Bel Fuse Inc. |
6,203 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 150 mA | 580 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
0ZRA0900FF1APTC RESET FUSE 16V 9A RADIAL Bel Fuse Inc. |
4,827 | 0.27 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
0ZRM0075FF2BPTC RESET FUSE 120V 750MA RADIAL Bel Fuse Inc. |
9,284 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 750 mA | 1.5 A | 5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.417" Dia x 0.150" T (10.60mm x 3.80mm) | 0.610" (15.50mm) | - | 0.201" (5.10mm) |
|
0ZRM0075AF2BPTC RESET FUSE 120V 750MA RADIAL Bel Fuse Inc. |
8,657 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 750 mA | 1.5 A | 7 A | 15 s | 250 mOhms | 690 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.429" L x 0.161" W (10.90mm x 4.10mm) | 0.669" (17.00mm) | - | 0.201" (5.10mm) |
|
0ZCB0005FF2EPTC RESET FUSE 60V 50MA 1210 Bel Fuse Inc. |
2,771 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCB0075FF2GPTC RESET FUSE 8V 750MA 1210 Bel Fuse Inc. |
9,882 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 750 mA | 1.5 A | 40 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
0ZRA1000FF1APTC RESET FUSE 16V 10A RADIAL Bel Fuse Inc. |
8,442 | 0.29 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
0ZRF0011FF2BPTC RESET FUSE 60V 110MA RADIAL Bel Fuse Inc. |
3,901 | 0.30 |
|
Datasheet |
Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 110 mA | 400 mA | 3 A | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" L x 0.181" W (6.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
|
|
0ZRF0012FF2BPTC RESET FUSE 60V 120MA RADIAL Bel Fuse Inc. |
8,952 | 0.30 |
|
Datasheet |
Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
