Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

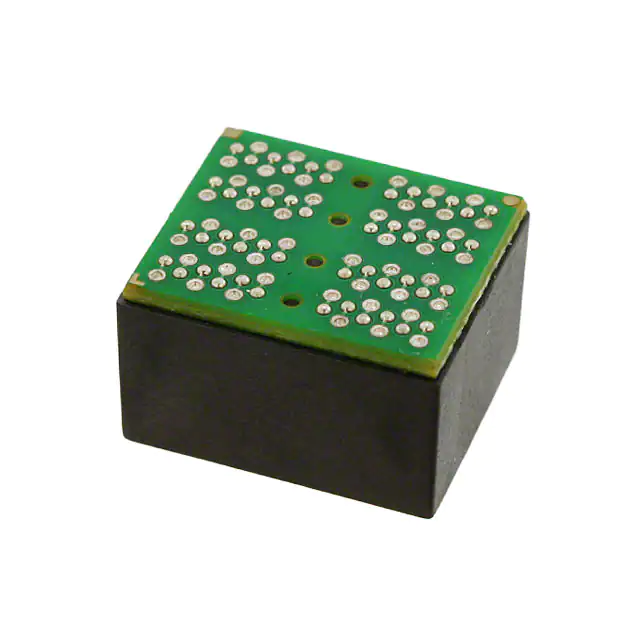

HX5201NLXFRMR MODL 2PORT POE GIGABIT Pulse Electronics |
2,586 | 15.99 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|
HX1234NLTXFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics |
1,218 | 14.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
HX1234NLMODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics |
763 | 14.05 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
HX5224CNLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
428 | 14.85 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|

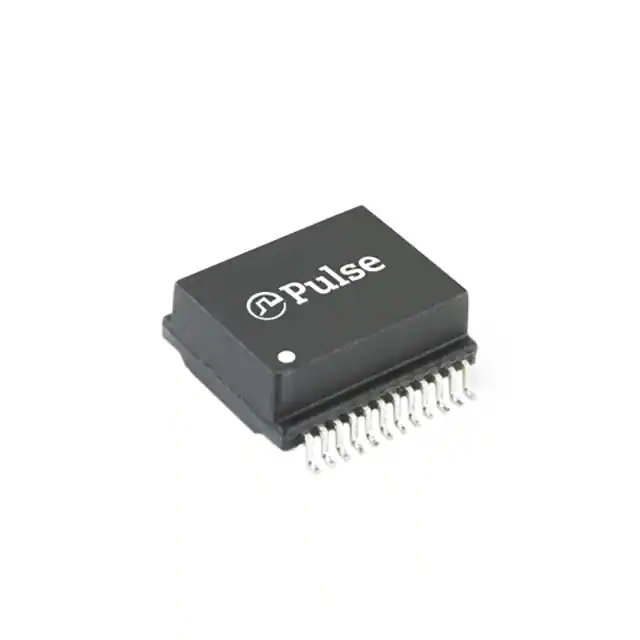

HM7142NLXFMR MDL 10GBASE-T SMT AEC-Q200 Pulse Electronics |
3,703 | 14.98 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 150µH | - | - | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|

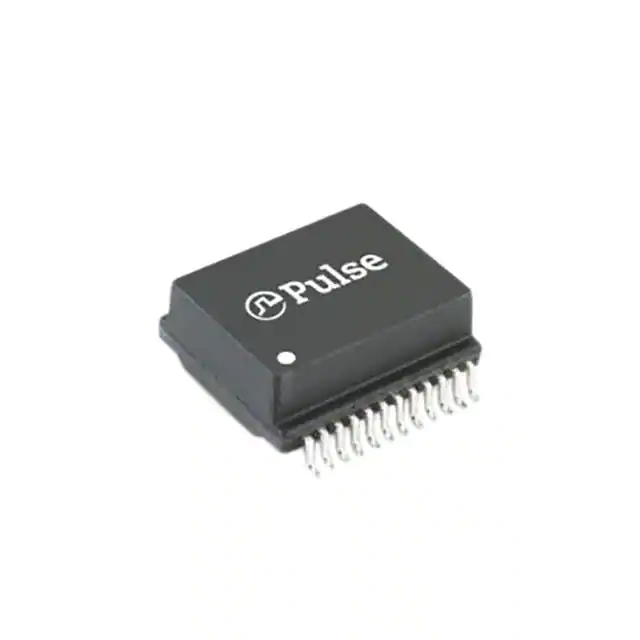

HM7142NLTXFRMR LAN MODULE Pulse Electronics |
1,037 | 14.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | - | - | - |
|
HX5120NLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
2,061 | 19.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

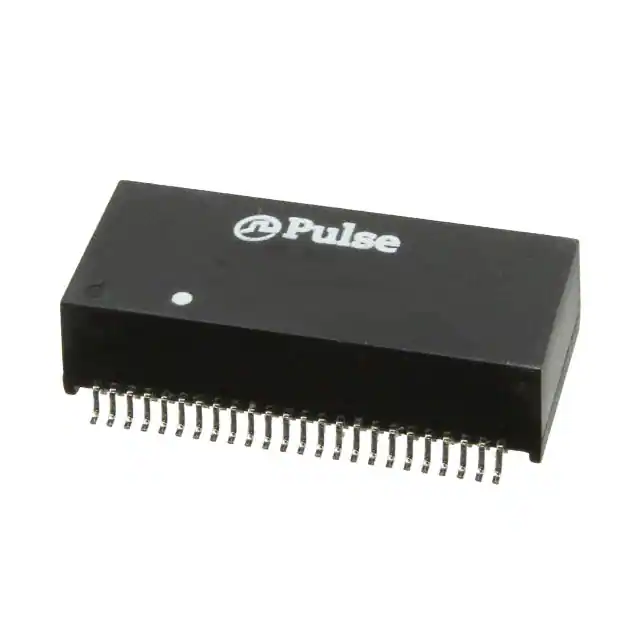

HX6101NLTPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
437 | 17.14 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
HX6101NLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
205 | 17.14 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

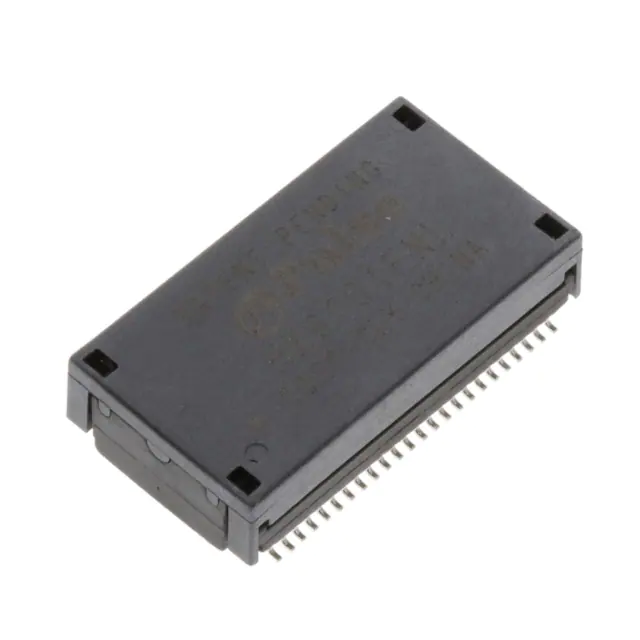

HX6101FNLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
566 | 17.90 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
