Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-68877NLXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
2,198 | 9.84 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
PE-68828NLTXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH Pulse Electronics |
4,517 | 5.76 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
PE-68877NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
2,989 | 5.76 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
PE-68822NLTXFRMR 1CT:2CT/1:1.36CT 1.6/1.6MH Pulse Electronics |
4,397 | 5.76 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.6mH, 1.6mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
T5008NLXFRMR ISDN-S 1:1/1:1 22MH SMD Pulse Electronics |
3,468 | 5.79 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:1, 1:1 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
T5007NLXFRMR ISDN-S 1:2/1:2 22MH SMD Pulse Electronics |
3,048 | 5.79 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2, 1:2 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
PE-68822NLXFRMR 1CT:2CT/1:1.36CT 1.6/1.6MH Pulse Electronics |
3,065 | 5.82 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.6mH, 1.6mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

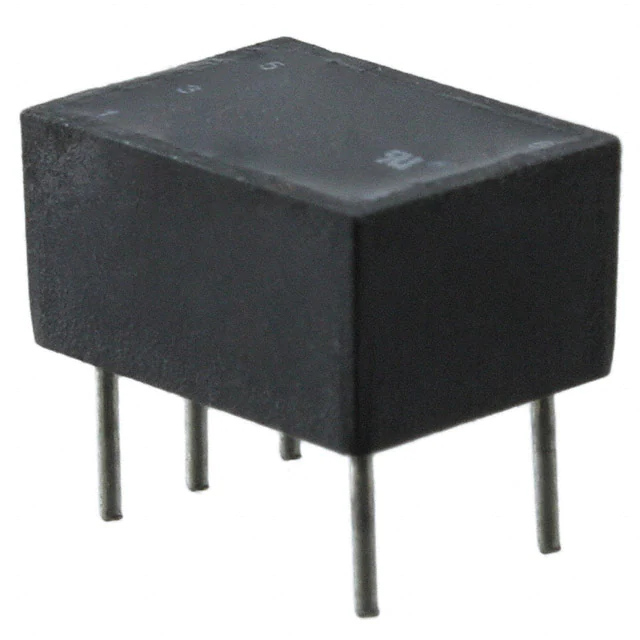

PE-65779NLXFRMR T3/DS3/E3/STS-1 1:4CT T/H Pulse Electronics |
4,020 | 5.83 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 150µH | - | 1:4CT | Through Hole | 0.299" L x 0.402" W (7.60mm x 10.20mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
H7008NLTTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
4,541 | 5.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
HDX8008NLTMDL SIN HDBT 1:1 POEP SM TR Pulse Electronics |
3,312 | 5.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
