Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1062NLMODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
2,991 | 14.35 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
AGS9015RMMDL 2.5G 2 PORT 4PAIR POE 90W Pulse Electronics |
1,510 | 9.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

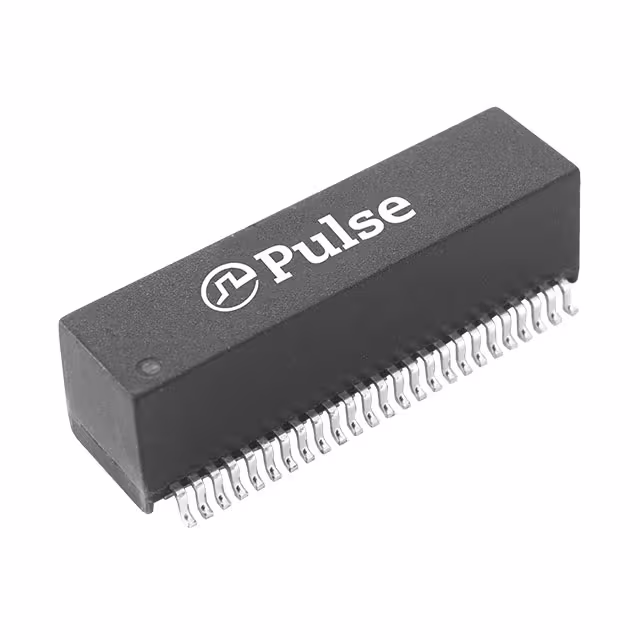

HU4102NLTMDL,SIN, DUAL 2.5G,1:1,SMT Pulse Electronics |
3,883 | 9.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 180µH | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | - | - | - |
|
|
HX1222NLMDL SIN 100D 1:1 4KV SMT T Pulse Electronics |
3,784 | 9.25 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1223NLMDL SIN 100D 1:1 4KV SMT TU Pulse Electronics |
2,270 | 9.25 |
|
- |
- | Tube | Active | - | 350µH | - | 1:1 | Surface Mount | 0.570" L x 0.537" W (14.48mm x 13.64mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

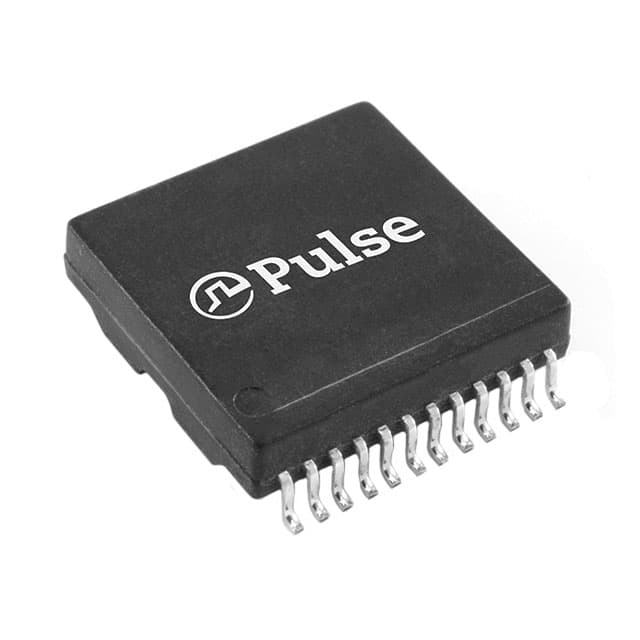

H1270NLTXFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics |
3,000 | 9.19 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.500" W (13.08mm x 12.70mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|
HX5224CNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
3,191 | 9.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|
|
HU4102NLMODULE MAGNETIC DUAL 2.5GB SMT Pulse Electronics |
1,954 | 11.16 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
|
|
HM6098NLTMDL SIN 1GPP 1:1 SMT TR Pulse Electronics |
3,549 | 9.46 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
|
H5089NLTTRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics |
4,025 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
