Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2185.043NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
3,986 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 4:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.083NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
3,255 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 8:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.034NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
3,316 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3:4CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.038NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
1,818 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 538µH | 27VµS | 3:8CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.035NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
2,141 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3:5CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.089NLXFMR GATE DRIVE SIDE CAR NPB Pulse Electronics |
4,252 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 8:9CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|

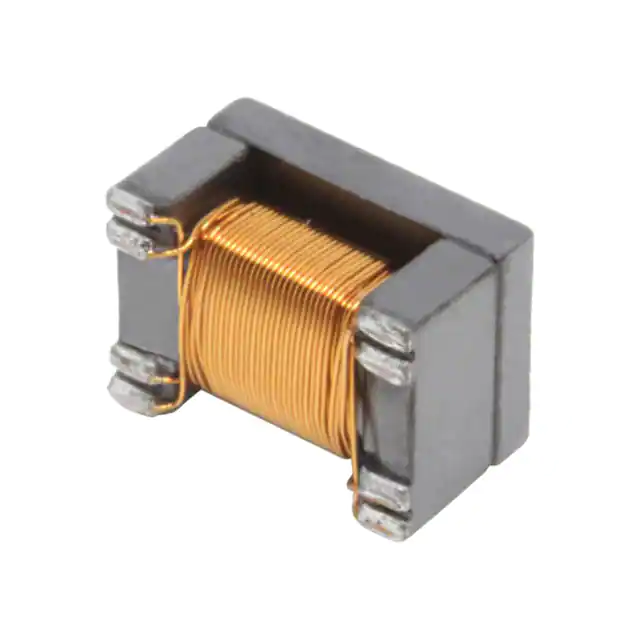

TC5000PTRANSFORMER LAN 5GB PHY POE Pulse Electronics |
3,700 | 1.04 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.118" (3.00mm) | -40°C ~ 85°C | - | - |
|
|
TC10000TRANSFORMER LAN 10GB PHY Pulse Electronics |
3,478 | 1.04 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
B4033NLTXFRMR FOR METALINK CHIPSET ANSI Pulse Electronics |
1,236 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | VDSL | 1mH | - | 1:3 Transmitter, 2:3 Receiver | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
PA1370NLTXFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics |
1,593 | 2.01 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | 1:0.444:0.388 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
