Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

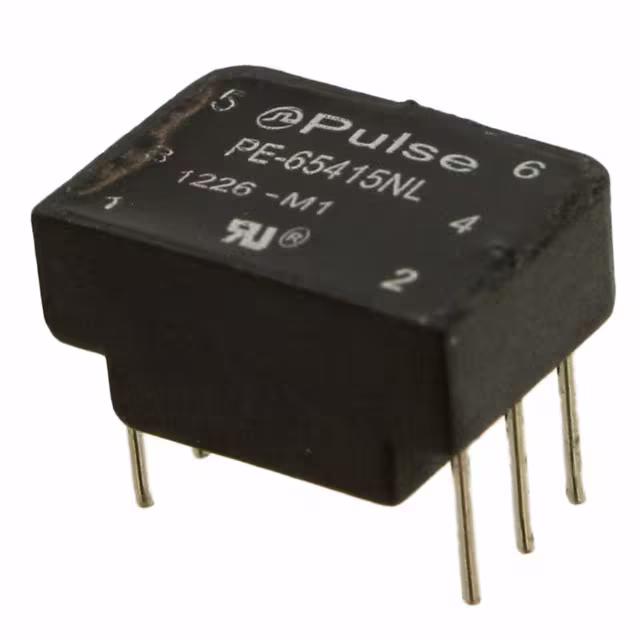

PE-65415NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT Pulse Electronics |
3,047 | 5.20 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
B2064NLTXFRMR FOR ALCATEL ADSL CHIPSET Pulse Electronics |
3,637 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | ADSL | 480µH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
HX2260NLXFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics |
4,393 | 3.03 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
AVP6014SMDL 2.5G 1 PORT 4PAIR POE 60W Pulse Electronics |
2,091 | 3.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
H5004ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,292 | 6.97 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
H1119NLTXFRMR MODUL 1PORT 1:1.141 10/100 Pulse Electronics |
2,385 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H0056NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
4,362 | 0.00 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504" L x 0.280" W (12.80mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
PE-64936NLXFRMR T1/CEPT/ISDN-PRI 1CT:1 Pulse Electronics |
4,957 | 5.28 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-64937NLXFRMR T1/CEPT/ISDN-PRI 1:1.36 Pulse Electronics |
1,235 | 3.06 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-64943NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT Pulse Electronics |
2,302 | 3.06 |
|
- |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
