Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

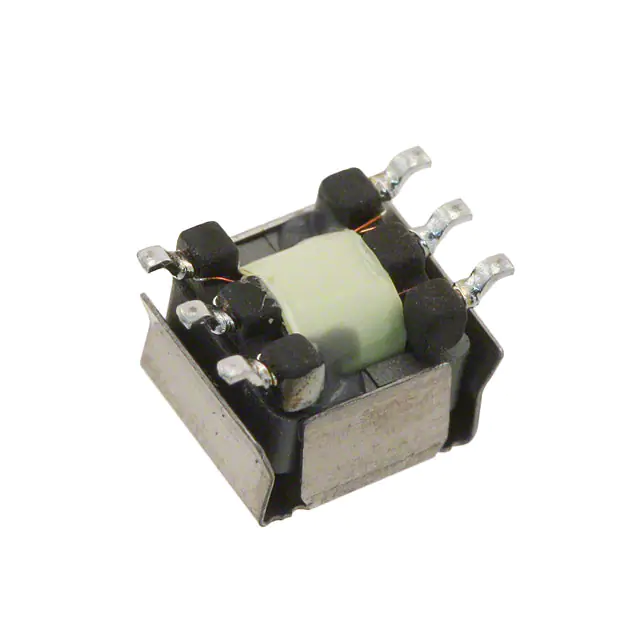

HM42-10002LFTRPULSE XFMR 2:1:1 300UH TT Electronics/BI Magnetics |
319 | 3.58 |
|
Datasheet |
HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 300µH | 40.4VµS | 2:1:1 | Surface Mount | 0.260" L x 0.319" W (6.60mm x 8.10mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|

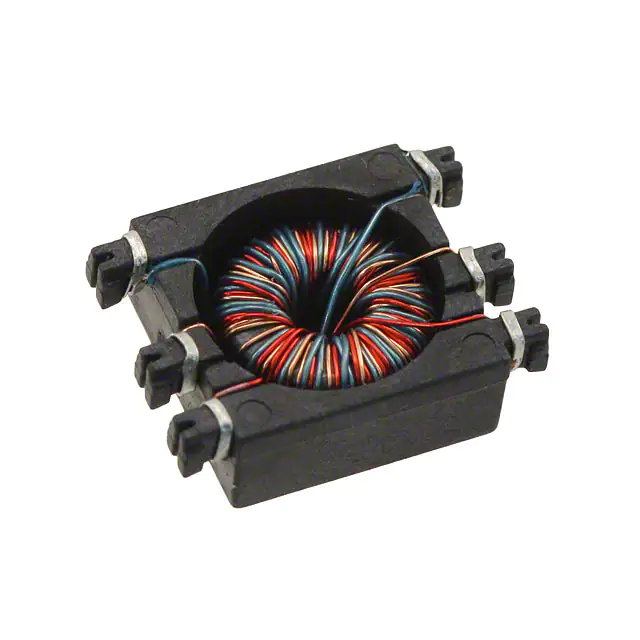

HM42-30001LFTRPULSE XFMR 1:1:1 980UH TT Electronics/BI Magnetics |
145 | 7.71 |
|
Datasheet |
HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 980µH | 30.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.161" (4.10mm) | -40°C ~ 125°C | - | - |
|

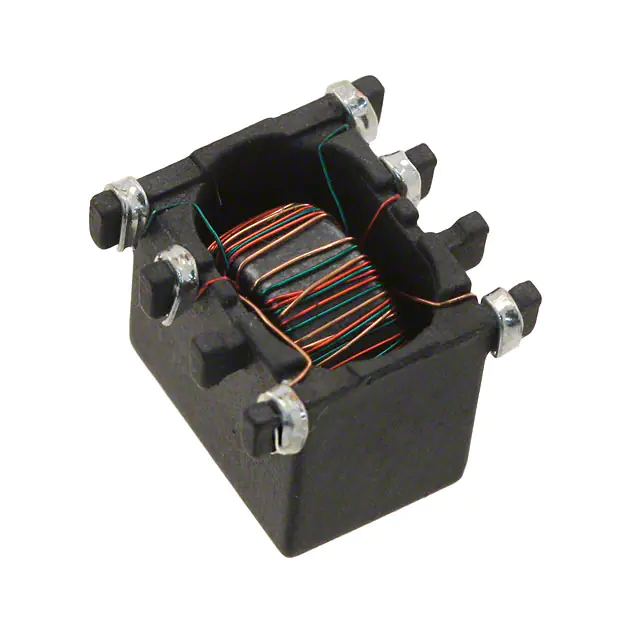

HM42-40004LFTRPULSE XFMR 2:1:1 1.2MH TT Electronics/BI Magnetics |
1,557 | 4.89 |
|
Datasheet |
HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 1.2mH | 45.4VµS | 2:1:1 | Surface Mount | 0.362" L x 0.346" W (9.20mm x 8.80mm) | 0.307" (7.80mm) | -40°C ~ 125°C | - | - |
