Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

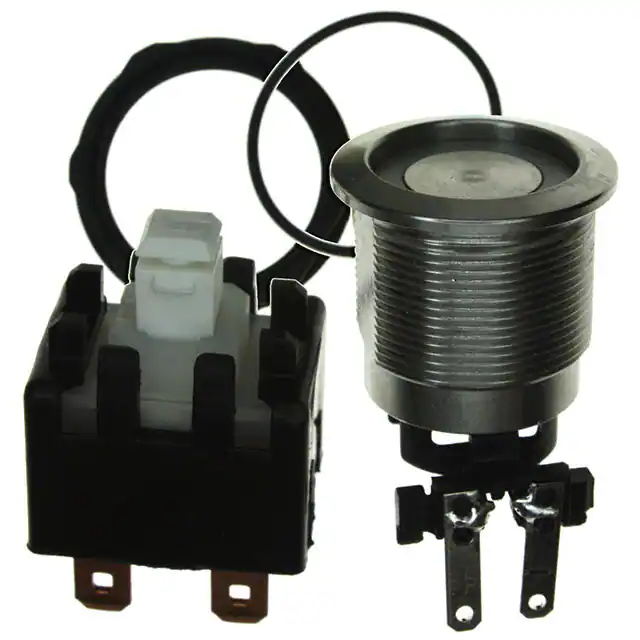

1241.6824.1111000SWITCH PUSHBUTTON SPST 12A 250V SCHURTER Inc. |
4,016 | 51.10 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
3-110-086SWITCH PUSH SPST-NO 100MA 42V SCHURTER Inc. |
1,240 | 42.13 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Finger Guide | Circular - 16.10mm Dia | -40°C ~ 60°C |
|
3-101-013SWITCH PUSHBUTTON SPST 16A 250V SCHURTER Inc. |
2,112 | 53.10 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
1241.6824.1121000SWITCH PUSHBUTTON DPST 12A 250V SCHURTER Inc. |
2,662 | 53.79 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
3-101-003SWITCH PUSHBUTTON DPST 16A 250V SCHURTER Inc. |
4,898 | 53.79 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|

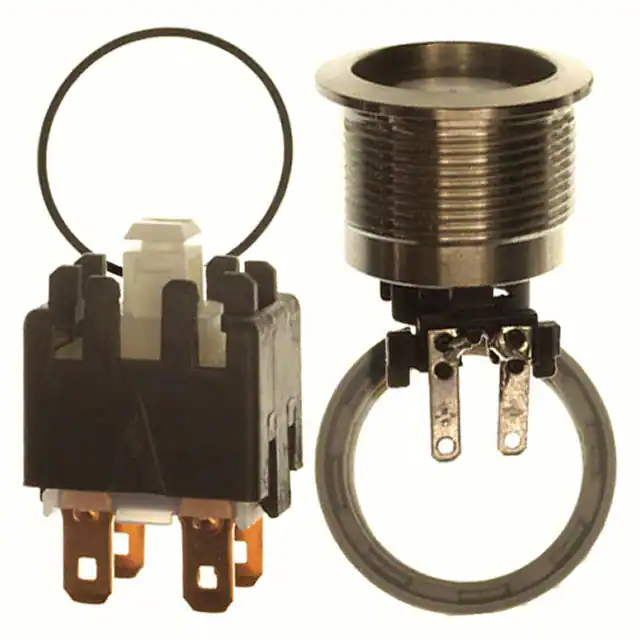

1241.6834.1121000SWITCH PUSHBUTTON DPST 12A 250V SCHURTER Inc. |
4,966 | 55.90 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|

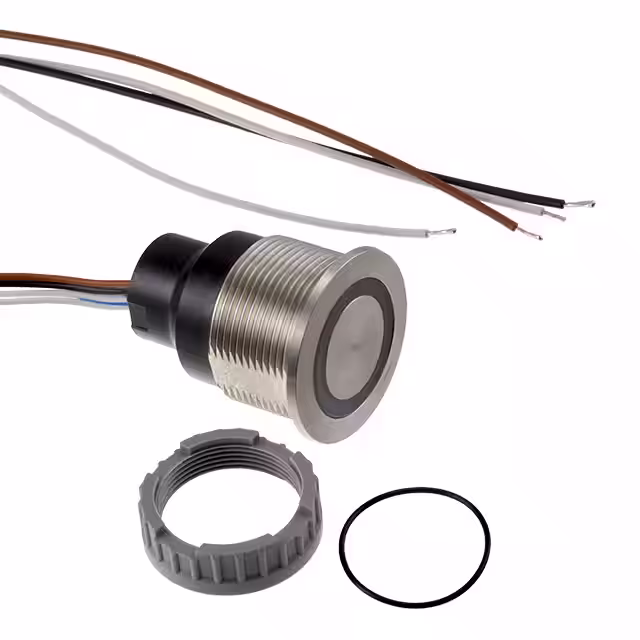

3-110-094SWITCH PUSHBUTTON SPST 100MA 42V SCHURTER Inc. |
1,408 | 50.90 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 60°C |
|

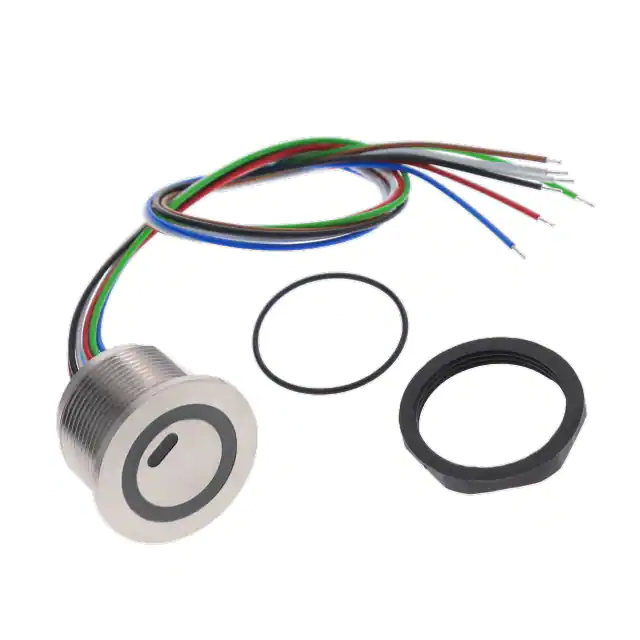

3-135-363TTS22 SWITCH MO NO 100MA RI RGB SCHURTER Inc. |
4,368 | 58.23 |
|
Datasheet |
TTS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 48 V | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 85°C |
|
1241.8544SWITCH PUSHBUTTON SPST 12A 250V SCHURTER Inc. |
1,444 | 58.63 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
|
3-101-009SWITCH PUSHBUTTON SPST 16A 250V SCHURTER Inc. |
4,351 | 58.63 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
