Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

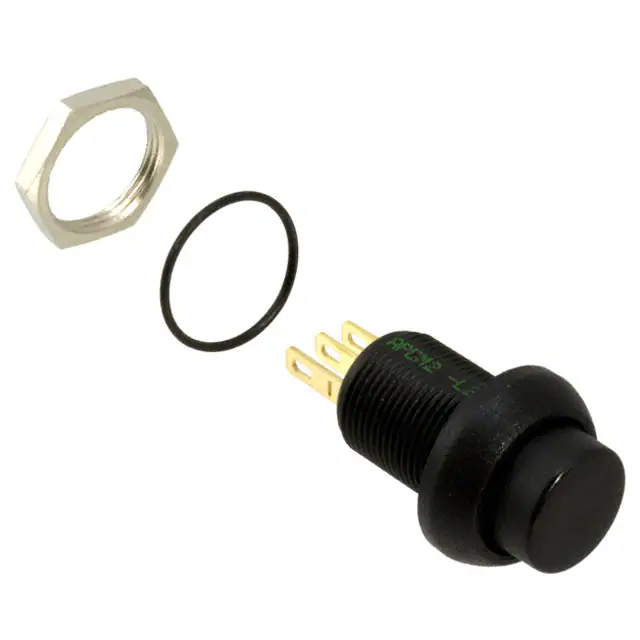

IMP7Z422104SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
1,281 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

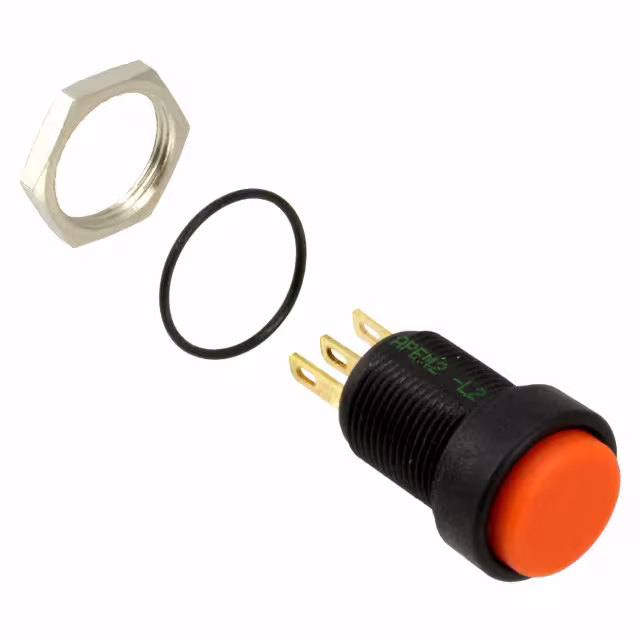

IMP7Z492234SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
4,929 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Orange | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMP7Z432075SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
3,804 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IMP7Z432234SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
3,235 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

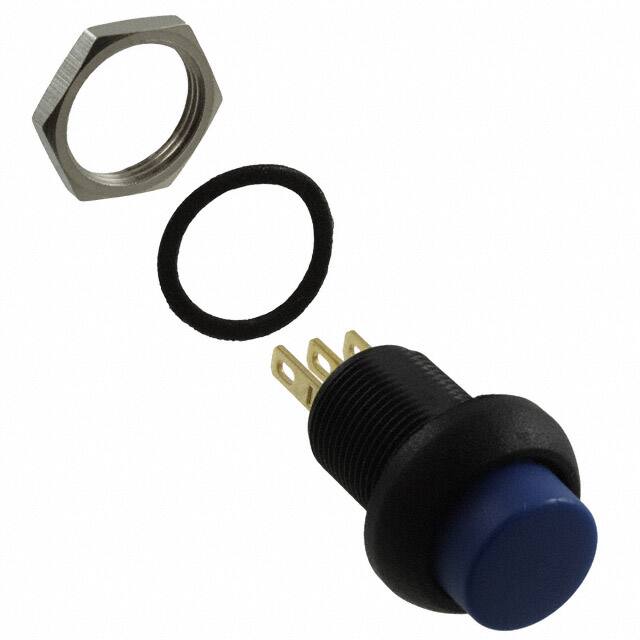

IMP7Z4B2104SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
3,764 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Blue, Dark | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

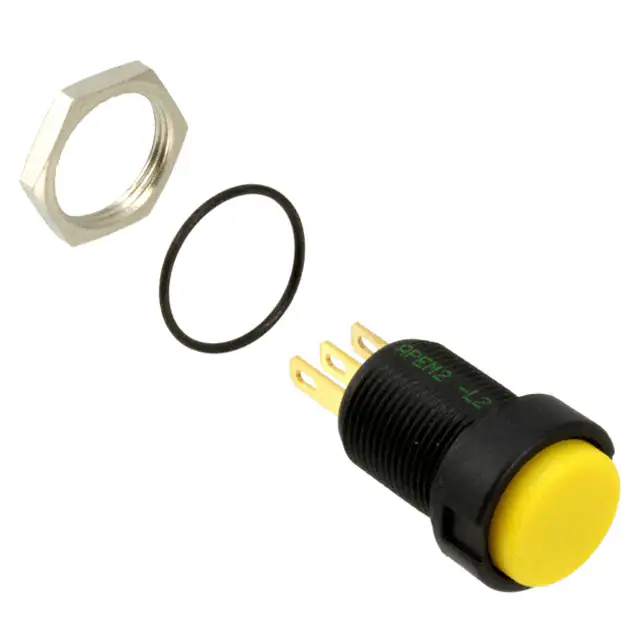

IMP7Z452075SWITCH PUSHBUTTON SPDT 3A 28V APEM Inc. |
4,116 | 23.32 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Yellow | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
8636AB6X718ULSWITCH PUSHBUTTON SPDT 6A 125V APEM Inc. |
2,823 | 23.42 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
ICR3SAD6PUSHBUTTON SWITCH FD DBLE ICON APEM Inc. |
1,303 | 0.00 |
|
- |
IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPR3SAD2101SWITCH PUSH SPST-NO 0.5A 48V APEM Inc. |
1,522 | 23.27 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
|
IPR3SAD2130SWITCH PUSH SPST-NO 0.5A 48V APEM Inc. |
4,049 | 23.32 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
