Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91105SWITCH MOM NO HENCOL 12 |
2,177 | 21.05 |
|
- |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 12 V | Round, Button | No Marking | - | - | - | Wire Leads | - | - | - | - |
|
YB25CKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
4,939 | 20.09 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
82-5572.1000SWITCH PB SPDT 5A 120V |
4,425 | 21.25 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
82-5551.1133SWITCH PB SPDT 5A 120V |
3,332 | 21.28 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5551.2133SWITCH PB SPDT 5A 120V |
4,099 | 21.28 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5151.2154SWITCH PB SPDT 3A 240V |
1,770 | 21.28 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5151.1143SWITCH PB SPDT 3A 240V |
4,789 | 21.28 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5151.2153SWITCH PB SPDT 3A 240V |
1,519 | 21.28 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
YB16CKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
2,688 | 20.75 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

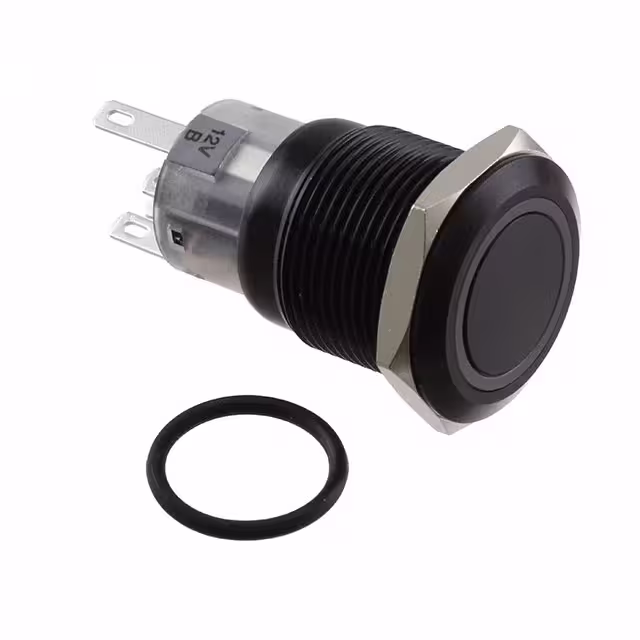

PV4F23011-344SWITCH PUSHBUTTON SPDT 2A 24V |
2,414 | 26.09 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
LB15RKG01-5C05-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,813 | 26.43 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
DH401NASZZSWITCH PB SPST-NO/NC 2A 125VAC |
1,819 | 0.00 |
|
Datasheet |
DH40 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 40.00mm Dia | -25°C ~ 70°C |
|
|
3-145-751MSM22 SWITCH MO NX SPDT 100MA RI |
4,540 | 0.00 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, White | 5 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
3-145-731MSM22 SWITCH MO NX SPDT 100MA RI |
2,311 | 0.00 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
LB25WGG01-EJSWITCH PUSH DPDT 0.4VA 28V |
2,864 | 20.94 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB25WKG01-CJSWITCH PUSH DPDT 0.4VA 28V |
1,622 | 20.94 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
82-5161.1000.B002SWITCH PB SPDT 5A 120V |
2,534 | 21.66 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
82-5161.1000.B001SWITCH PB SPDT 5A 120V |
3,376 | 21.66 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|

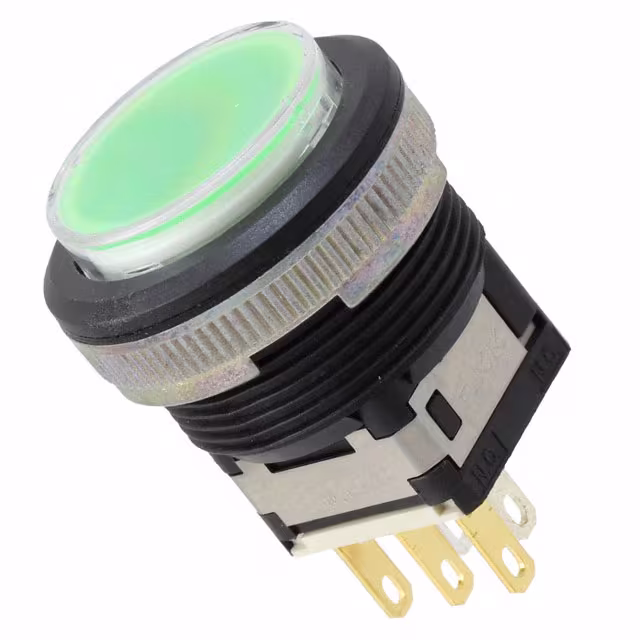

LB16WKG01-5F-JFSWITCH PUSH SPDT 0.4VA 28V |
4,177 | 19.60 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
DH301NARZZSWITCH PB DPST-NO/NC 2A 125V |
2,718 | 0.00 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
