Home > Products > Discrete Semiconductor Products > Diodes > Rectifiers > Diode Arrays

Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSEP2X61-06A DIODE MODULE GP 600V 60A SOT227B IXYS	99	RFQ	Datasheet	HiPerFRED™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	600 V	60A	2.01 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	650 µA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
MDA72-16N1B DIODE MOD GP 1600V 113A TO-240AA IXYS	36	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Common Anode	Standard	1600 V	113A	1.6 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	15 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
153CMQ100 DIODE MOD SCHOTT 100V 150A TO249 SMC Diode Solutions	7	RFQ	Datasheet	-	TO-249AA (Modified), D-60	Bulk	Active	1 Pair Common Cathode	Schottky	100 V	150A	1.19 V @ 150 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	TO-249
VS-VSKJ71/10 DIODE MOD GP 1000V 40A ADDAPAK Vishay General Semiconductor - Diodes Division	14	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Anode	Standard	1000 V	40A	-	Standard Recovery >500ns, > 200mA (Io)	-	10 mA @ 1000 V	-40°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
GSXD100A004S1-D3 DIODE MOD SCHOTT 45V 100A SOT227 SemiQ	24	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	45 V	100A	700 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
VS-301CNQ045PBF DIODE MOD SCHOT 45V 300A TO244AB Vishay General Semiconductor - Diodes Division	11	RFQ	Datasheet	-	TO-244AB	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	300A	900 mV @ 300 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 mA @ 45 V	-	-	-	Chassis Mount	TO-244AB
406CMQ200R DIODE MOD SCHOTT 200V 200A PRM4 SMC Diode Solutions	6	RFQ	Datasheet	-	PRM4 Isolated	Box	Active	1 Pair Common Anode	Schottky	200 V	200A	990 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 mA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
GSXF100A120S1-D3 DIODE MOD GP 1200V 100A SOT-227 SemiQ	33	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	100A	2.35 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	125 ns	25 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
VS-VS5HD600CW60 DIODE MODULE GP 600V 505A TO-244 Vishay General Semiconductor - Diodes Division	14	RFQ	Datasheet	FRED Pt®	TO-244AB	Box	Active	1 Pair Common Cathode	Standard	600 V	505A (DC)	1.7 V @ 300 A	Fast Recovery =< 500ns, > 200mA (Io)	78 ns	1 mA @ 600 V	-40°C ~ 175°C	-	-	Chassis Mount	TO-244
403DMQ100 DIODE MOD SCHOTT 100V 200A PRM4 SMC Diode Solutions	14	RFQ	Datasheet	-	PRM4 Isolated	Box	Active	1 Pair Series Connection	Schottky	100 V	200A	830 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
MDD95-18N1B DIODE MOD GP 1800V 120A TO-240AA IXYS	40	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1800 V	120A	1.43 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	15 mA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
GSXD120A020S1-D3 DIODE MOD SCHOT 200V 120A SOT227 SemiQ	36	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	200 V	120A	920 mV @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227

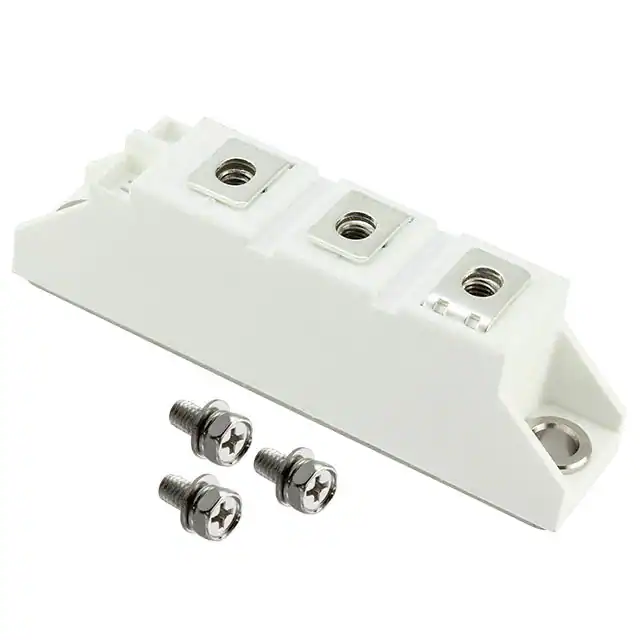

MD36K16D1-BP DIODE MODULE GP 1600V 36A D1 Micro Commercial Co	6	RFQ	Datasheet	-	D1	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	36A	1.4 V @ 100 A	Standard Recovery >500ns, > 200mA (Io)	-	5 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D1
VS-VSKC91/10 DIODE MOD GP 1000V 50A ADDAPAK Vishay General Semiconductor - Diodes Division	6	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Standard	1000 V	50A	-	Standard Recovery >500ns, > 200mA (Io)	-	10 mA @ 1000 V	-40°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
VS-VSKD91/16 DIODE MOD GP 1600V 50A ADDAPAK Vishay General Semiconductor - Diodes Division	8	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	50A	-	Standard Recovery >500ns, > 200mA (Io)	-	10 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
MD100K16D1-BP DIODE MODULE GP 1600V 100A D1 Micro Commercial Co	27	RFQ	Datasheet	-	D1	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	100A	1.4 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	5 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D1
MD120K16D1-BP DIODE MODULE GP 1600V 120A D1 Micro Commercial Co	8	RFQ	Datasheet	-	D1	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	120A	1.35 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	6 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D1
VS-VSKCS209/150 DIODE MOD SCHOTTKY 150V ADDAPAK Vishay General Semiconductor - Diodes Division	6	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	100A	1.01 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
MDA95-22N1B DIODE MOD GP 2200V 120A TO-240AA IXYS	24	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Common Anode	Standard	2200 V	120A	1.2 V @ 150 A	Standard Recovery >500ns, > 200mA (Io)	-	200 µA @ 2200 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
MDD172-08N1 DIODE MODULE GP 800V 190A Y4-M6 IXYS	12	RFQ	Datasheet	-	Y4-M6	Box	Active	1 Pair Series Connection	Standard	800 V	190A	1.15 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 800 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6

Total 30174 Record«Prev 1... 202 203 204 205206207 208 209...1509 Next»
