Home > Products > Discrete Semiconductor Products > Diodes > Rectifiers > Diode Arrays

Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
S16-4150E3/TR13 DIODE ARRAY GP 75V 400MA 16-SOIC Microchip Technology	6,139	RFQ	Datasheet	-	16-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	8 Independent	Standard	75 V	400mA	1 V @ 200 mA	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	100 nA @ 50 V	-55°C ~ 150°C	-	-	Surface Mount	16-SOIC
SCS220AE2C DIODE ARRAY SIC 650V 10A TO-247 Rohm Semiconductor	7,944	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	10A (DC)	1.55 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 600 V	175°C (Max)	-	-	Through Hole	TO-247
FST30100 DIODE ARR SCHOT 100V 15A TO247AD Microsemi Corporation	9	RFQ	Datasheet	-	TO-3P-3 Full Pack	Bulk	Obsolete	1 Pair Common Cathode	Schottky	100 V	15A	850 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 100 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AD
GD2X10MPS12D DIODE ARR SIC 1200V 25A TO247-3 GeneSiC Semiconductor	3,306	RFQ	Datasheet	MPS™	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	25A	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	5 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
APT15D100BHBG DIODE ARRAY GP 1000V 15A TO247 Microchip Technology	6,695	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Series Connection	Standard	1000 V	15A	2.3 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	260 ns	250 µA @ 1000 V	-55°C ~ 175°C	-	-	Through Hole	TO-247 [B]

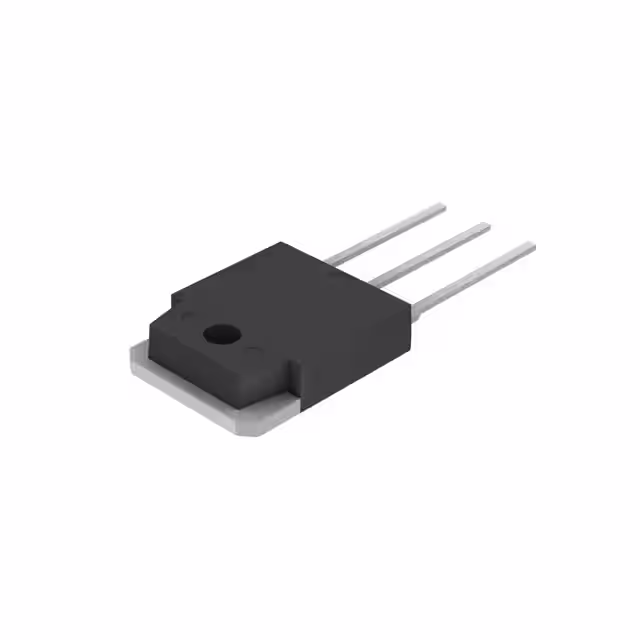

WNSC2D20650CJQ DIODE ARRAY SIC 650V 20A TO-3PF WeEn Semiconductors	5,557	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tape & Reel (TR)	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	20A	1.7 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 650 V	175°C	-	-	Through Hole	TO-3PF
BYT60P-400 DIODE ARRAY GP 400V 60A SOD-93 STMicroelectronics	5,704	RFQ	Datasheet	-	SOD-93-2	Tube	Obsolete	2 Independent	Standard	400 V	60A	1.5 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	100 ns	60 µA @ 400 V	150°C (Max)	-	-	Through Hole	SOD-93-2
MSC010SDA070BCT DIODE ARRAY SIC 700V 24A TO247-3 Microchip Technology	9,846	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	700 V	24A	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 700 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
40CPQ080 DIODE ARR SCHOTT 80V 20A TO247AC Vishay General Semiconductor - Diodes Division	6,119	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	80 V	20A	770 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.25 mA @ 80 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AC
VX60170PWHM3/P DIODE ARR SCHOT 170V 30A TO247AD Vishay General Semiconductor - Diodes Division	7,058	RFQ	Datasheet	TMBS®	TO-247-3	Tape & Reel (TR)	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	170 V	30A	840 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 170 V	-40°C ~ 175°C	-	-	Through Hole	TO-247AD
VX60202PWHM3/P DIODE ARR SCHOT 200V 30A TO247AD Vishay General Semiconductor - Diodes Division	6,935	RFQ	Datasheet	-	TO-247-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	200 V	30A	840 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 200 V	-40°C ~ 175°C	Automotive	AEC-Q101	Through Hole	TO-247AD
HFA12PA120C DIODE ARRAY GP 1200V 6A TO-247AC Vishay General Semiconductor - Diodes Division	3,501	RFQ	Datasheet	HEXFRED®	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Standard	1200 V	6A (DC)	3 V @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	80 ns	5 µA @ 1200 V	-55°C ~ 150°C	-	-	Through Hole	TO-247AC
VS-52CPQ030PBF DIODE ARR SCHOTT 30V 25A TO247AC Vishay General Semiconductor - Diodes Division	2,701	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	30 V	25A	480 mV @ 25 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.9 mA @ 30 V	-55°C ~ 150°C	-	-	Through Hole	TO-247AC
GP3D024A065U DIODE ARRAY SIC 650V 12A TO247-3 SemiQ	9,001	RFQ	Datasheet	Amp+™	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	12A	1.5 V @ 12 A	No Recovery Time > 500mA (Io)	0 ns	30 µA @ 650 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
WNSC2D301200CWQ DIODE ARR SIC 1200V 30A TO247-3 WeEn Semiconductors	2,905	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	30A	1.7 V @ 15 A	No Recovery Time > 500mA (Io)	0 ns	150 µA @ 1200 V	175°C	-	-	Through Hole	TO-247-3
WNSC2D401200CW6Q DIODE ARR SIC 1200V 40A TO247-3 WeEn Semiconductors	9,519	RFQ	Datasheet	-	TO-247-3	Tape & Reel (TR)	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	40A	1.8 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 2000 V	175°C	-	-	Through Hole	TO-247-3
APT60D20LCTG DIODE ARRAY GP 200V 60A TO264 Microsemi Corporation	4,883	RFQ	Datasheet	-	TO-264-3, TO-264AA	Tube	Obsolete	1 Pair Common Cathode	Standard	200 V	60A	1.3 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	31 ns	250 µA @ 200 V	-55°C ~ 175°C	-	-	Through Hole	TO-264 [L]
APT60D30LCTG DIODE ARRAY GP 300V 60A TO264 Microsemi Corporation	9,859	RFQ	Datasheet	-	TO-264-3, TO-264AA	Tube	Obsolete	1 Pair Common Cathode	Standard	300 V	60A	1.4 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	38 ns	250 µA @ 300 V	-55°C ~ 175°C	-	-	Through Hole	TO-264 [L]
40CPQ100 DIODE ARR SCHOT 100V 20A TO247AC Vishay General Semiconductor - Diodes Division	8,645	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	100 V	20A	770 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.25 mA @ 100 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AC
STPS80L30CY DIODE ARRAY SCHOT 30V 40A MAX247 STMicroelectronics	3,651	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	30 V	40A	480 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4 mA @ 30 V	150°C (Max)	-	-	Through Hole	MAX247™

Total 30174 Record«Prev 1... 501 502 503 504505506 507 508...1509 Next»
