Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH12004TV1DIODE MODULE GP 400V 60A ISOTOP |
2,166 | 0.00 |
|
Datasheet |
- | ISOTOP | Tube | Obsolete | 2 Independent | Standard | 400 V | 60A | 1.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 50 µA @ 400 V | 150°C (Max) | - | - | Chassis Mount | ISOTOP® |
|
84CNQ060SMS2DIODE ARRAY SCHOTTKY 60V PRM2-SM |
8,899 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Through Hole | PRM2-SM |
|

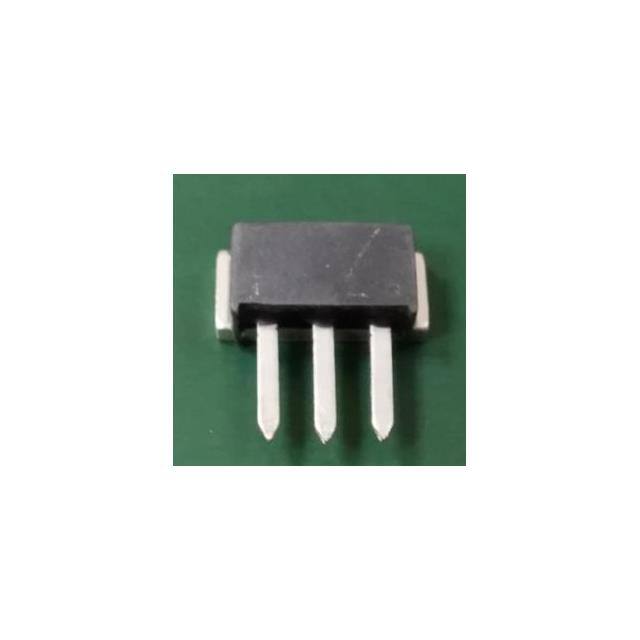

87CNQ020SMS2DIODE ARRAY SCHOTTKY 20V PRM2-SM |
3,999 | 0.00 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
88CNQ060SMS2DIODE ARR SCHOTT 60V 40A PRM2-SM |
7,298 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 770 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
80CNQ045SMS2DIODE ARR SCHOTT 45V 80A PRM2-SM |
6,493 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 80A | 660 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | PRM2-SM |
|
|
81CNQ035SMS2DIODE ARR SCHOTT 35V 80A PRM2-SM |
8,570 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
81CNQ040SMS2DIODE ARR SCHOTT 40V 80A PRM2-SM |
5,371 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
81CNQ045SMS2DIODE ARR SCHOTT 45V 80A PRM2-SM |
7,148 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
82CNQ030SMS2DIODE ARR SCHOTT 30V 80A PRM2-SM |
9,626 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 80A | 550 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | PRM2-SM |
|
|
84CNQ035SMS2DIODE ARR SCHOTT 35V 80A PRM2-SM |
8,686 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 80A | 620 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 125°C | - | - | Through Hole | PRM2-SM |
|
|
84CNQ040SMS2DIODE ARR SCHOTT 40V 80A PRM2-SM |
4,554 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 80A | 620 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 125°C | - | - | Through Hole | PRM2-SM |
|
|
84CNQ045SMS2DIODE ARR SCHOTT 45V 80A PRM2-SM |
2,712 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 80A | 620 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 125°C | - | - | Through Hole | PRM2-SM |
|
VS-UFB120FA40PDIODE MODULE GP 400V 60A SOT-227 |
5,899 | 0.00 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | 2 Independent | Standard | 400 V | 60A | 1.37 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | 100 µA @ 400 V | -55°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
86CNQ200SLDIODE ARR SCHOTT 200V 40A PRM2SL |
3,359 | 0.00 |
|
Datasheet |
- | PRM2-SL | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 200 V | -55°C ~ 175°C | - | - | Surface Mount | PRM2-SL |
|
|
89CNQ135SLDIODE ARR SCHOTT 135V 40A PRM2SL |
5,100 | 0.00 |
|
Datasheet |
- | PRM2-SL | Bulk | Active | 1 Pair Common Cathode | Schottky | 135 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 135 V | -55°C ~ 175°C | - | - | Surface Mount | PRM2-SL |
|
|
83CNQ080SLDIODE ARR SCHOTT 80V 40A PRM2-SL |
5,422 | 0.00 |
|
Datasheet |
- | PRM2-SL | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | - | - | Surface Mount | PRM2-SL |
|
|
86CNQ200SMS2DIODE ARR SCHOTT 200V 80A PRM2SM |
9,809 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
85CNQ015SMS2DIODE ARR SCHOTT 15V 40A PRM2-SM |
6,780 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | - | - | Through Hole | PRM2-SM |
|
|
89CNQ135SMS2DIODE ARR SCHOTT 135V 80A PRM2SM |
2,473 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 135 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 135 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
|
|
89CNQ150SMS2DIODE ARR SCHOTT 150V 80A PRM2SM |
6,025 | 0.00 |
|
Datasheet |
- | PRM2-SM | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | PRM2-SM |
