Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

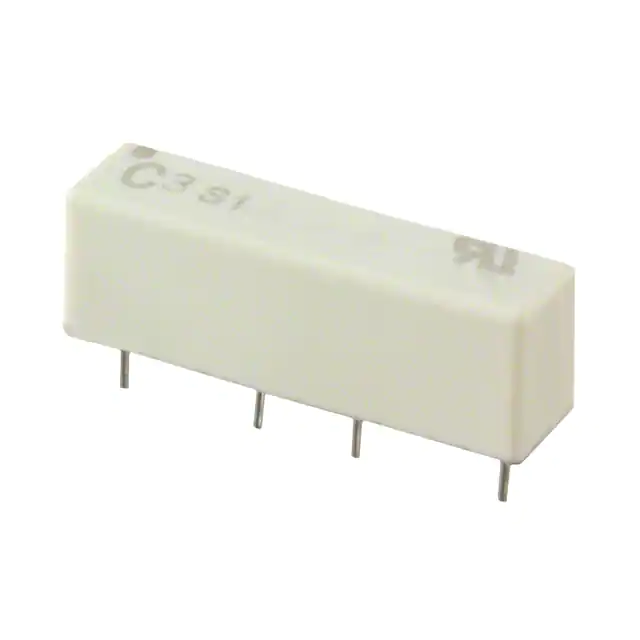

S1-2404DRELAY REED 4KV SPST 24V SIP W/DI Sensata Technologies, Inc. |
3,426 | 22.25 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404RELAY REED 4KV SPST 24V SIP Sensata Technologies, Inc. |
1,419 | 21.37 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404MRELAY REED 4KV SPST 24V SIP SCRE Sensata Technologies, Inc. |
1,558 | 22.25 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

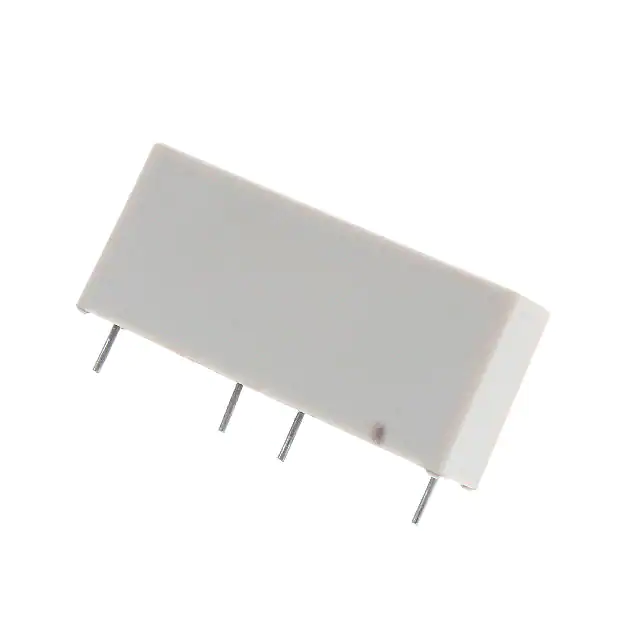

S1-12-BRELAY REED 1 N/C 1.5KV 12V Sensata Technologies, Inc. |
2,886 | 25.12 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404DMRELAY REED 4KV SPST 24V SIP W/DI Sensata Technologies, Inc. |
4,268 | 23.16 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-05-BDRELAY REED 1 N/C 1.5KV 5V Sensata Technologies, Inc. |
3,127 | 26.38 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-BMRELAY REED 1 N/C 1.5KV 12V Sensata Technologies, Inc. |
4,426 | 26.38 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
DBR71205URELAY REED SPST-NC 5KV 12V Sensata Technologies, Inc. |
1,864 | 44.65 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR71205TURELAY REED SPST-NO 5KV 12V Sensata Technologies, Inc. |
2,942 | 45.48 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR70505PURELAY REED SPST-NO 5KV 5V Sensata Technologies, Inc. |
4,121 | 45.48 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
