Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAR71275PURELAY REED SPST-NO 7.5KV 12V Sensata Technologies, Inc. |
1,219 | 55.20 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBT70505FURELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc. |
2,929 | 55.44 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71275URELAY REED SPST-NC 7.5KV 12V Sensata Technologies, Inc. |
1,989 | 56.69 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70575SURELAY REED SPST-NO 7.5KV 5V Sensata Technologies, Inc. |
4,157 | 57.58 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

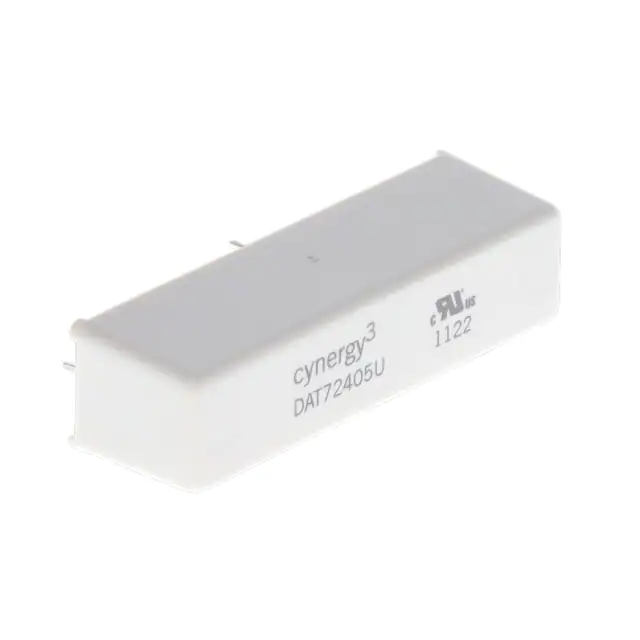

DAT72405URELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc. |
4,179 | 38.62 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT72410URELAY REED SPST-NO 2A 24V Sensata Technologies, Inc. |
2,754 | 56.29 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72415RELAY REED SPST-NO 2A 24V Sensata Technologies, Inc. |
4,233 | 71.26 |
|
Datasheet |
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT71215F-HRRELAY REED SPST-NO 2A 12V Sensata Technologies, Inc. |
3,904 | 94.72 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
S1-24-BMRELAY REED 1 N/C 1.5KV 24V Sensata Technologies, Inc. |
2,559 | 26.38 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|

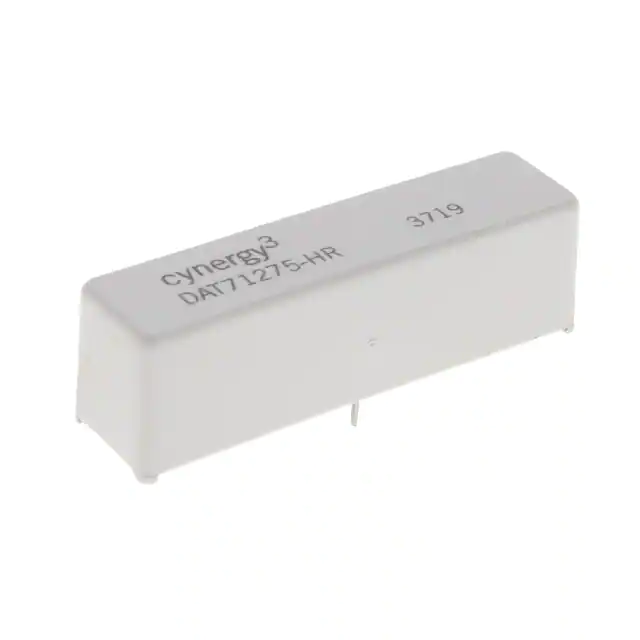

DAT71275-HRRELAY REED 7.5KV 12V SPST-NO Sensata Technologies, Inc. |
4,581 | 46.89 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
