RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9856B/SF-15WR-90 Standard Gain Horn Antenna Pasternack |
3,467 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE9855B/SF-15WR-75 Waveguide Standard Gain Ho Pasternack |
2,537 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 5.690" (144.53mm) | General Purpose |
|
|
PE9854B/NF-15WR-62 Waveguide Standard Gain Ho Pasternack |
4,324 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 4.310" (109.47mm) | General Purpose |
|
|
PEWAN1070WR-15 Waveguide Wide Angle Scala Pasternack |
4,191 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 60GHz | 55GHz ~ 65GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.270" (32.25mm) | General Purpose |
|
|
PE1WAN075-20SFWR-75 Standard Gain Horn with 20 Pasternack |
4,646 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE1WAN075-20NFWR-75 Standard Gain Horn with 20 Pasternack |
1,263 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE9854B/NF-20WR-62 Waveguide Standard Gain Ho Pasternack |
2,101 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 6.750" (171.45mm) | General Purpose |
|
|
PE9855B/SF-20WR-75 Standard Gain Horn Antenna Pasternack |
2,495 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 2.980" (75.69mm) | General Purpose |
|

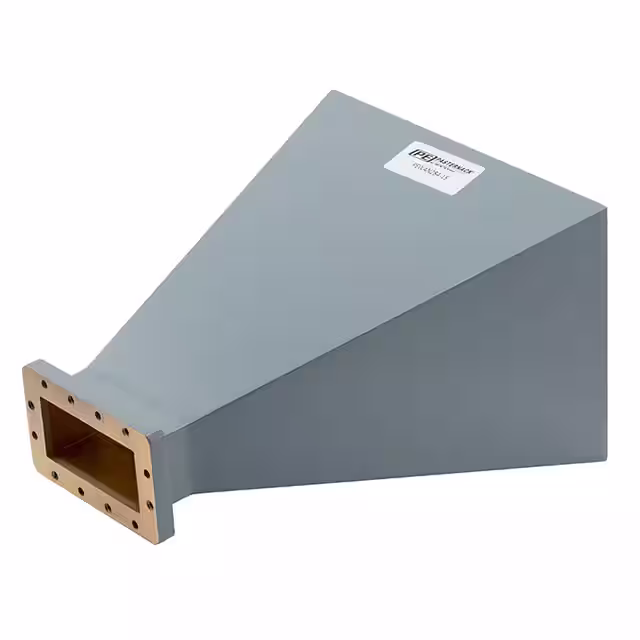

PEWAN284-15WR284 GAIN HORN 2.6-3.95GHZ 15DB Pasternack |
4,461 | 1870.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | S Band (2GHz ~ 4GHz) | 3.3GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9855B/NF-20WR-75 Standard Gain Horn Antenna Pasternack |
2,097 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 9.200" (233.68mm) | General Purpose |
