RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

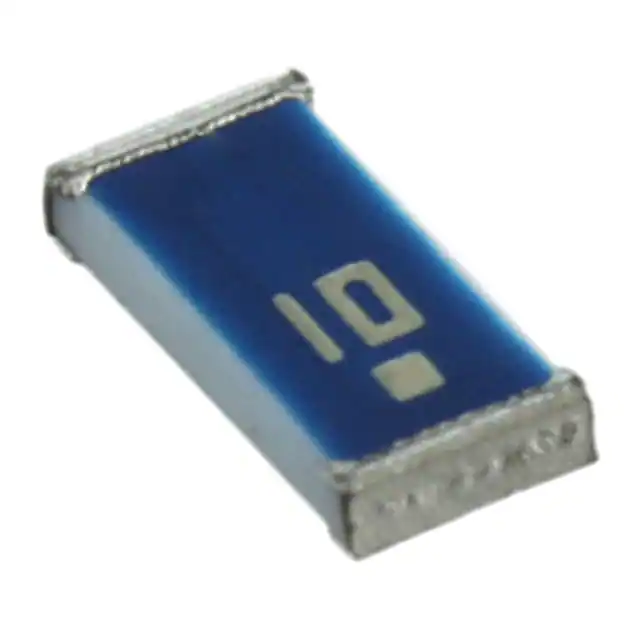

RFECA3216060A1TRF ANT 2.4GHZ CHIP SOLDER SMD Walsin Technology Corporation |
12,650 | 0.48 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2.1 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | - |
|

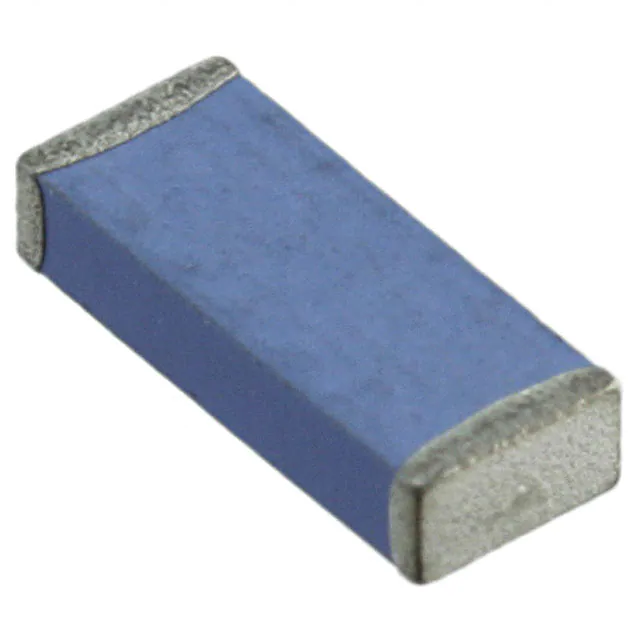

RFANT5220110A2TRF ANT 2.4GHZ CHIP SOLDER SMD Walsin Technology Corporation |
4,125 | 0.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | Bluetooth, WLAN |
|

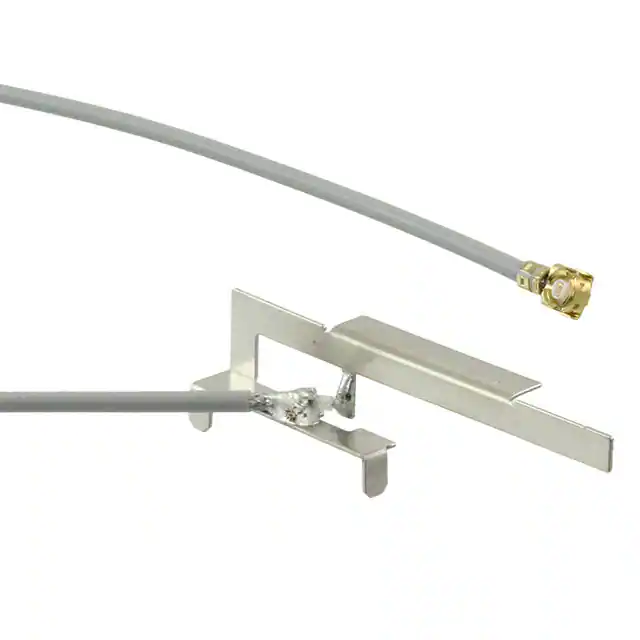

RFMTA310819IMAB701RF ANT 2.4GHZ STAMPED MET IPEX Walsin Technology Corporation |
3,014 | 4.72 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 5.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.331" (8.40mm) | ISM |
|

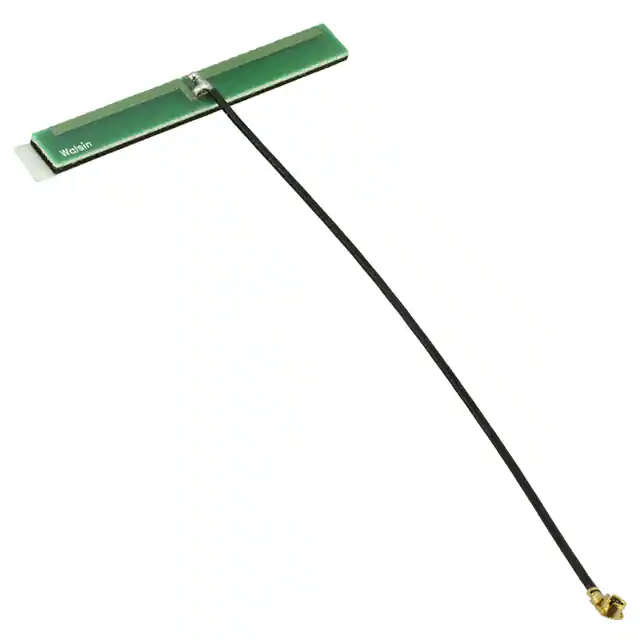

RFPCA460611IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL Walsin Technology Corporation |
399 | 3.86 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 3.8dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | ISM |
|

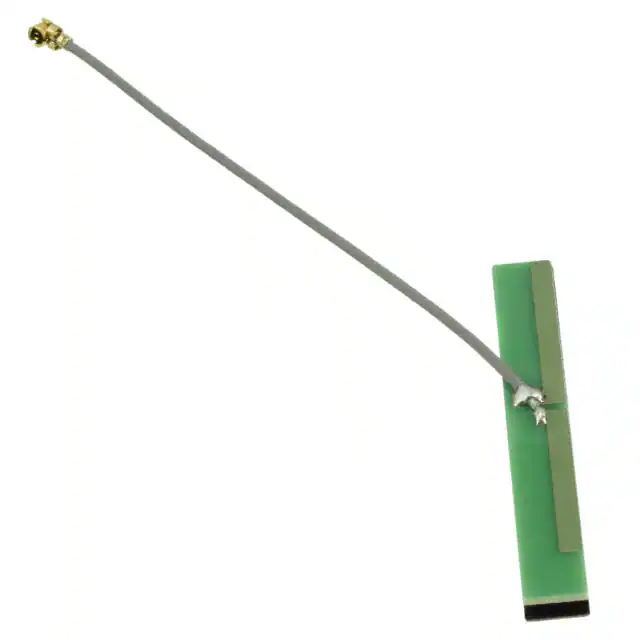

RFPCA500609IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL Walsin Technology Corporation |
369 | 4.29 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 4.5dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|

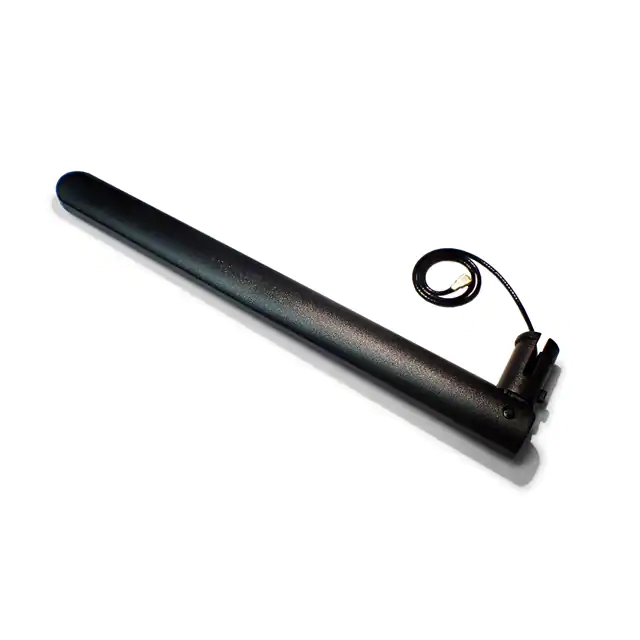

RFDPA131015IMBB301RF ANT 863-928MHZ IPEX DIPOLE Walsin Technology Corporation |
2,776 | 11.57 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Whip, Tilt | 1 | 2 | -10dB | 0.9dBi | - | Cable - 150mm | I-PEX | - | - | - | Connector Mount | 6.024" (153.00mm) | GSM |
|

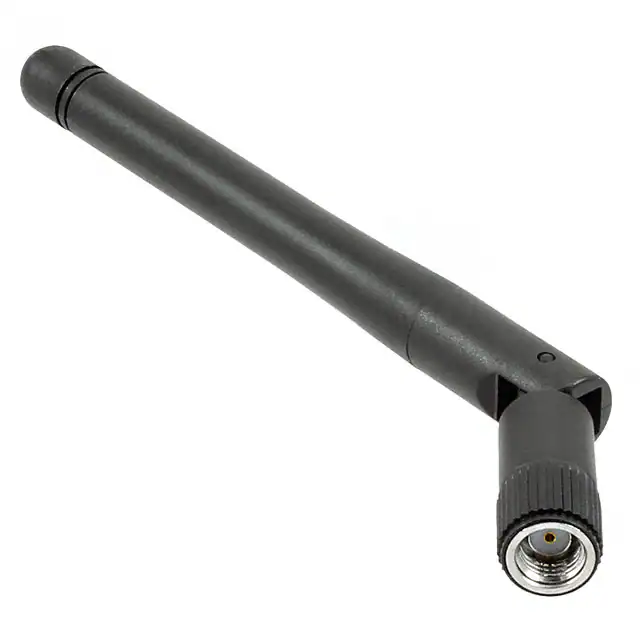

RFDPA870900SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA Walsin Technology Corporation |
755 | 13.49 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
|

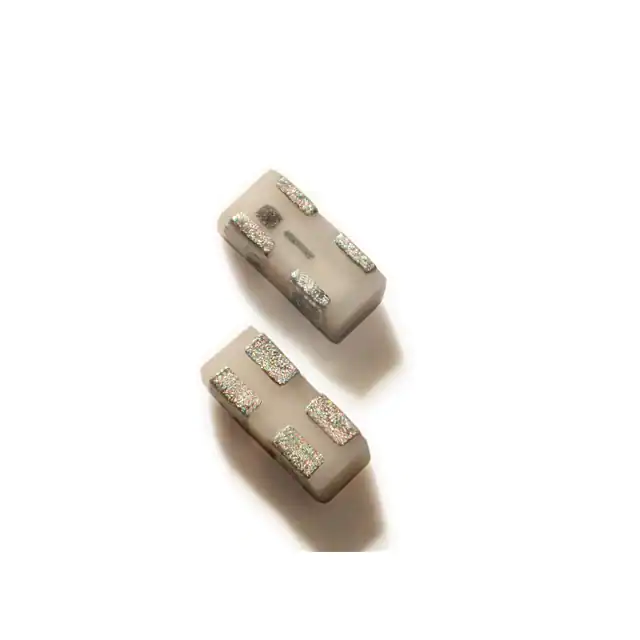

RFANT1005040A1TRF ANT 2.4GHZ ISM SMD Walsin Technology Corporation |
3,224 | 0.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.6 | -7dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | ISM |
|
RFPCA201018IM5B301RF ANT 5.5GHZ PCB TRACE IPEX MAL Walsin Technology Corporation |
1,043 | 3.86 |
|
Datasheet |
- | Bulk | Active | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | PCB Trace | 1 | 2 | -10dB | 5.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|
RFMTA080217NNUB002RF ANT 315MHZ METAL Walsin Technology Corporation |
1,525 | 4.29 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | 2 | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.500" (38.10mm) | - |
