Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617152-7RELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
387 | 88.65 |
|
Datasheet |
MGSPD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617132-8RELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
1,453 | 80.47 |
|
Datasheet |
MSWD | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617163-9RELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
639 | 99.72 |
|
Datasheet |
MACDD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617128-8RELAY GEN PURPOSE DPDT 1A 18V TE Connectivity Aerospace, Defense and Marine |
3,210 | 156.23 |
|
Datasheet |
MSCD | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617110-6RELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
1,152 | 205.59 |
|
Datasheet |
MGAT | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 2 ms | - | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

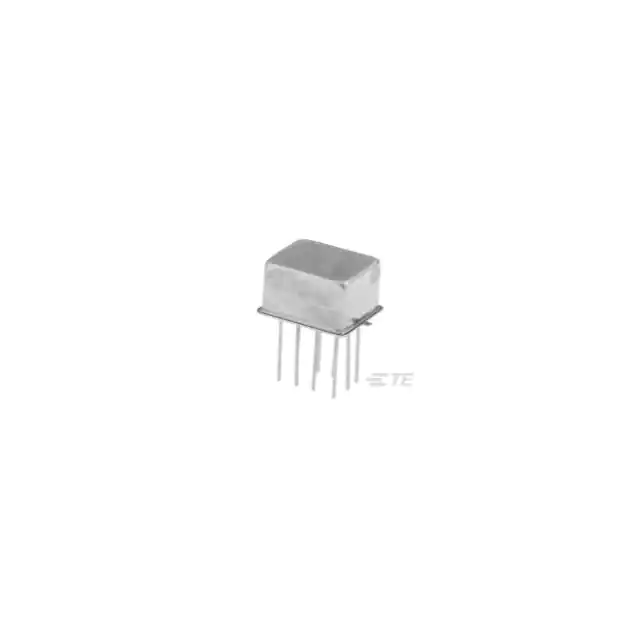

5-1617350-7RELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
1,791 | 222.47 |
|
Datasheet |
MGST | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617038-5RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,998 | 221.67 |
|
Datasheet |
HMB, CII | Box | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617163-1RELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,114 | 153.75 |
|
Datasheet |
MADD, CII | Box | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/20 |
|
|
1617164-5RELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,920 | 194.85 |
|
Datasheet |
MACT | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617110-9RELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
4,580 | 234.82 |
|
Datasheet |
MGST, CII | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-28776/7 |
