Stepper Motors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

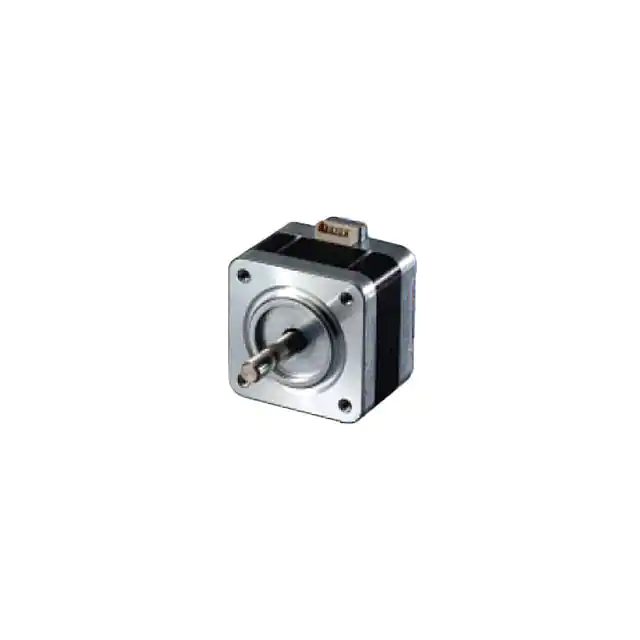

14PM-M144USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,296 | 0.00 |
|
Datasheet |
14PM | Bulk | Obsolete | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 17.71 / 125 | Square - 1.378" x 1.378" (35.00mm x 35.00mm) | 14 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.023" (26.00mm) | Wire Leads with Connector | - | 2.7 Ohms | Round Shaft |
|
|
14PM-M444USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,621 | 0.00 |
|
Datasheet |
14PM | Bulk | Obsolete | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 26.91 / 190 | Square - 1.378" x 1.378" (35.00mm x 35.00mm) | 14 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.023" (26.00mm) | Wire Leads with Connector | - | 4 Ohms | Round Shaft |
|

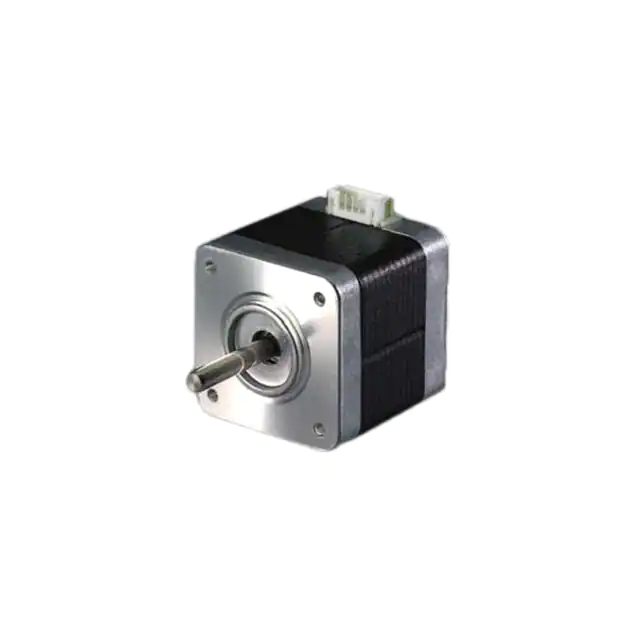

17PM-Z149USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,218 | 0.00 |
|
Datasheet |
17PM | Bulk | Obsolete | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 42.49 / 300 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 4.3 Ohms | Round Shaft |
|
|
17PM-Z342BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,225 | 0.00 |
|
Datasheet |
17PM | Bulk | Obsolete | Hybrid | Bipolar | 24VDC | 1.4 A | 200.0 | 1.8° | - | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 4 Ohms | Round Shaft |
|
14PM-F647ENVA3672STEP MOTOR HYBRID 24V BIPOLAR NMB Technologies Corporation |
1,685 | 46.86 |
|
Datasheet |
14PM | Bulk | Obsolete | Hybrid | Bipolar | 24VDC | 1.5 A | 200.0 | 1.8° | - | 18.41 / 130 | Square - 1.378" x 1.378" (35.00mm x 35.00mm) | 14 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.142" (29.00mm) | Wire Leads with Connector | - | 1.2 Ohms | Round Shaft |
