Stepper Motors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17H018D10BSTEP MOTOR HYBRID BIPOLAR 3.3V Portescap |
4,712 | 0.00 |
|
Datasheet |
H3 | Bulk | Obsolete | Hybrid | Bipolar | 3.3VDC | 1 A | 200.0 | 1.8° | ±5% | 30 / 212 | Square - 1.680" x 1.680" (42.67mm x 42.67mm) | 17 | 0.197" (5.00mm) | 0.790" (20.07mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 40°C | 3.32 Ohms | Round Shaft |
|

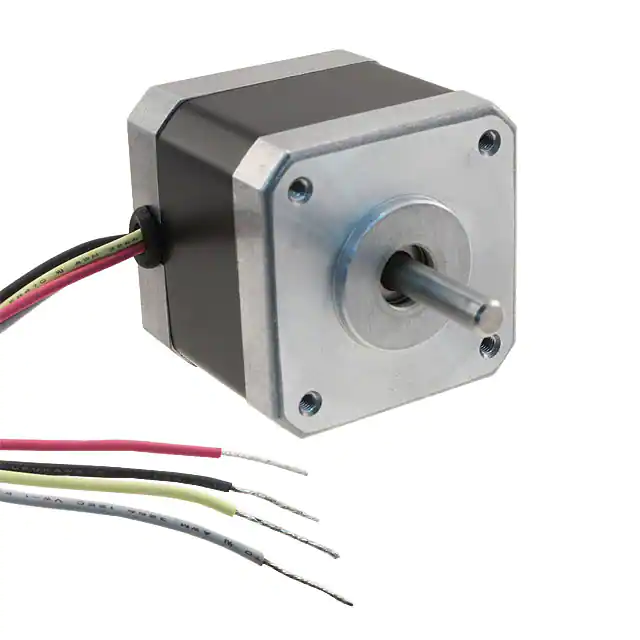

17H118D10BSTEP MOTOR HYBRID BIPOLAR 4.1V Portescap |
4,321 | 0.00 |
|
Datasheet |
H3 | Bulk | Obsolete | Hybrid | Bipolar | 4.1VDC | 1 A | 200.0 | 1.8° | ±5% | 51 / 360 | Square - 1.680" x 1.680" (42.67mm x 42.67mm) | 17 | 0.197" (5.00mm) | 0.790" (20.07mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 40°C | 4.12 Ohms | Round Shaft |
|

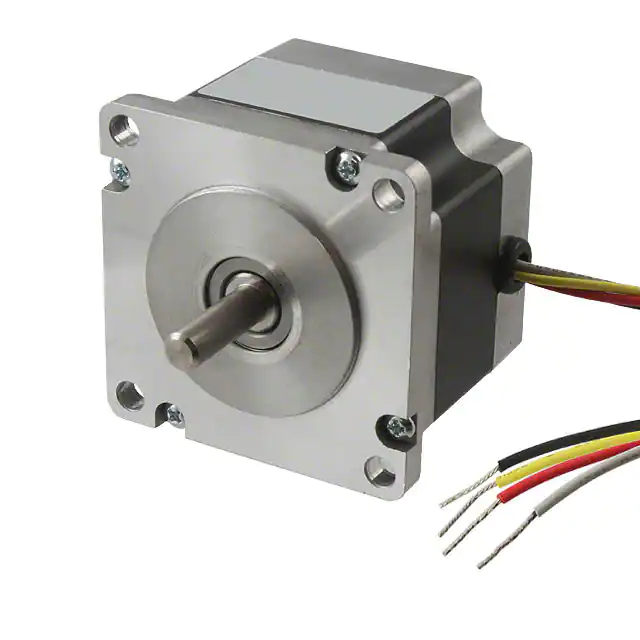

23H018D10BSTEP MOTOR HYBRID BIPOLAR 5.7V Portescap |
2,469 | 0.00 |
|
Datasheet |
H3 | Bulk | Obsolete | Hybrid | Bipolar | 5.7VDC | 1 A | 200.0 | 1.8° | ±5% | 75 / 530 | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | 23 | 0.250" (6.35mm) | 0.810" (20.57mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 40°C | 5.7 Ohms | Round Shaft |
|

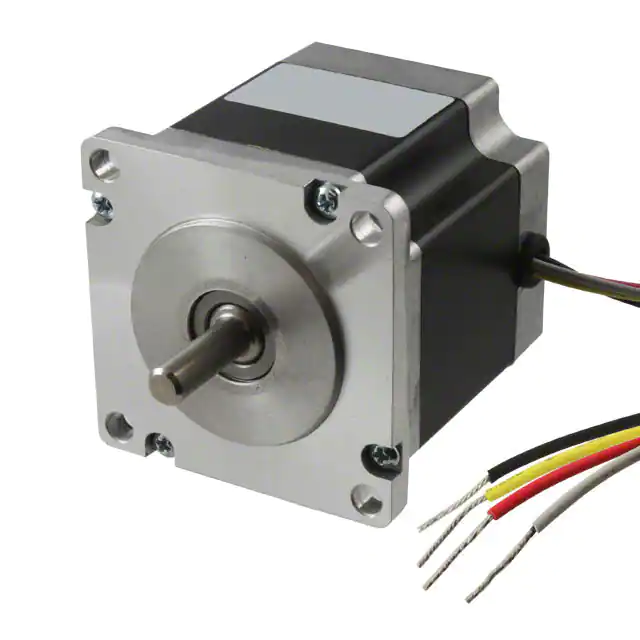

23H118D10BSTEP MOTOR HYBRID BIPOLAR 6.84V Portescap |
2,382 | 0.00 |
|
Datasheet |
H3 | Bulk | Obsolete | Hybrid | Bipolar | 6.84VDC | 1 A | 200.0 | 1.8° | ±5% | 180 / 1271 | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | 23 | 0.250" (6.35mm) | 0.810" (20.57mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 40°C | 6.84 Ohms | Round Shaft |
|
42M048C1B-R16STEP MOTOR PM GEARED BIPOLAR 5V Portescap |
3,505 | 0.00 |
|
Datasheet |
42M-R | Bulk | Active | Permanent Magnet Gear Motor | Bipolar | 5VDC | 550 mA | 240.0 | 1.5° | - | 11.9 / 84 | Round - 1.650" Dia (42.00mm) | - | 0.093" (2.36mm) | 0.469" (11.92mm) | 1.880" (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms | Round Shaft |
